2-19
© 1997 Whirlpool Corporation
Cooking Products Service Manual
Original March, 1997 4322167
Page 2-19

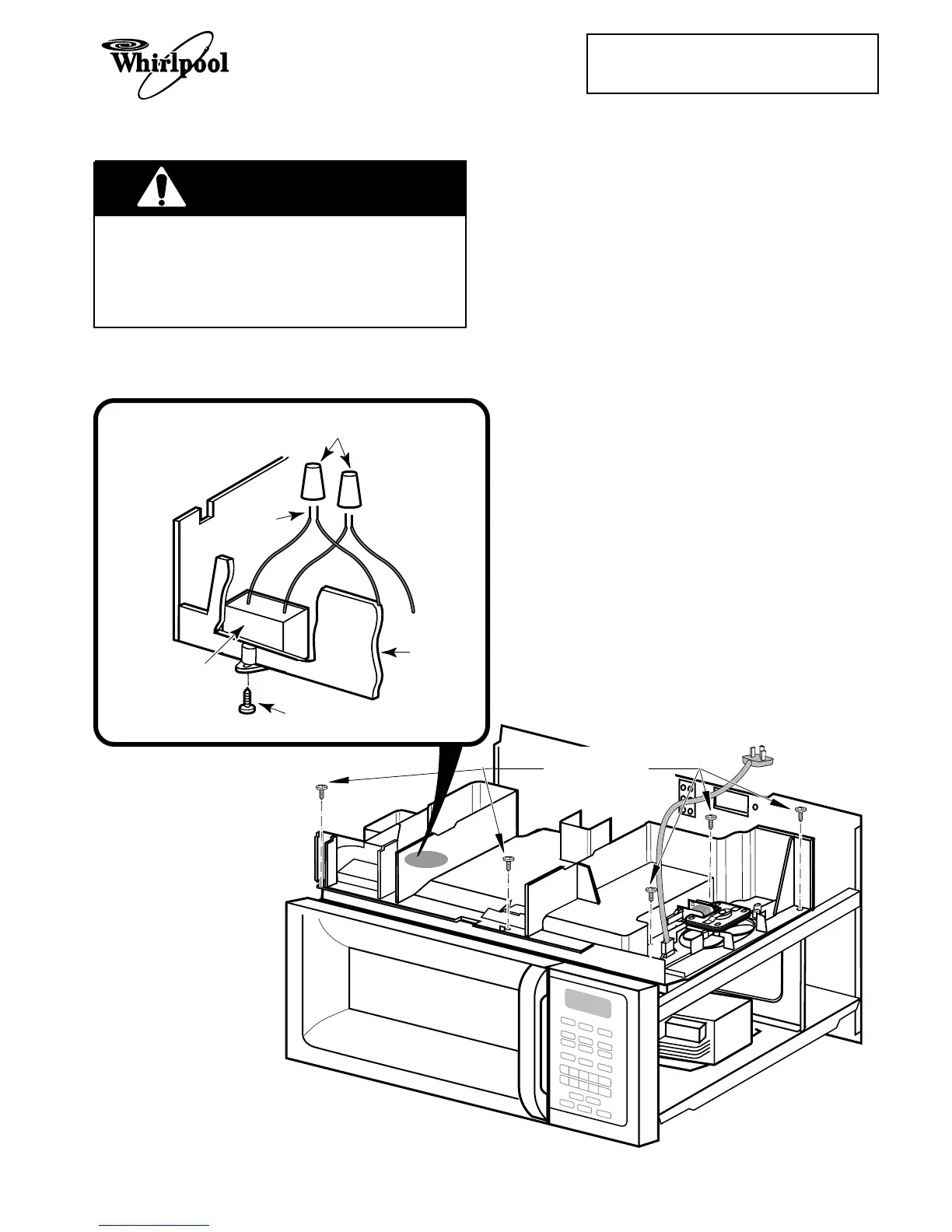

REMOVING THE BLOWER MOTOR CAPACITOR
WARNING
Personal Injury Hazard
Disconnect from the electrical supply be-
fore servicing the unit. Failure to do so
could result in death or electrical shock.
2. Remove the microwave oven from its
mounting location (see page 2-2).
3. Remove the vent grille and cabinet from
the microwave oven (see the illustration
on page 2-3).
4. Remove the five screws from the air duct.
5. Cut the wires near the body of the blower
motor capacitor.
6. Remove
1
/2
"
of insulation from the cut wire
ends of the red harness wires and then
splice them to the wires of the new ca-
pacitor with two wire nuts.
7. Install the new blower motor capacitor to
the air duct and reassemble the micro-
wave oven.
REMOVE FIVE
AIR DUCT SCREWS
1. Disconnect the electrical supply to the
microwave oven.
AIR DUCT
WIRE NUT
MOUNTING SCREW
BLOWER MOTOR
CAPACITOR
CUT &
SPLICE
WIRES
To Next Page
