REMOVING THE CAVITY THERMAL FUSE
WARNING
Personal Injury Hazard
Disconnect from the electrical supply be-
fore servicing the unit. Failure to do so
could result in death or electrical shock.
1. Disconnect the electrical supply to the
microwave oven.
2. Remove the microwave oven from its
mounting location (see page 2-2).
3. Remove the vent grille and cabinet from
the microwave oven (see the illustration
on page 2-3).
4. Remove the five screws from the air duct.
5. Unplug the connectors from the terminals
of the cavity thermal fuse, then lift the left
side of the air duct, and remove the cavity
thermal fuse. NOTE: There are no mount-
ing screws holding the cavity thermal fuse
in place.
6. Install the new cavity thermal fuse in its
mounting hole, and reassemble the mi-
crowave oven.

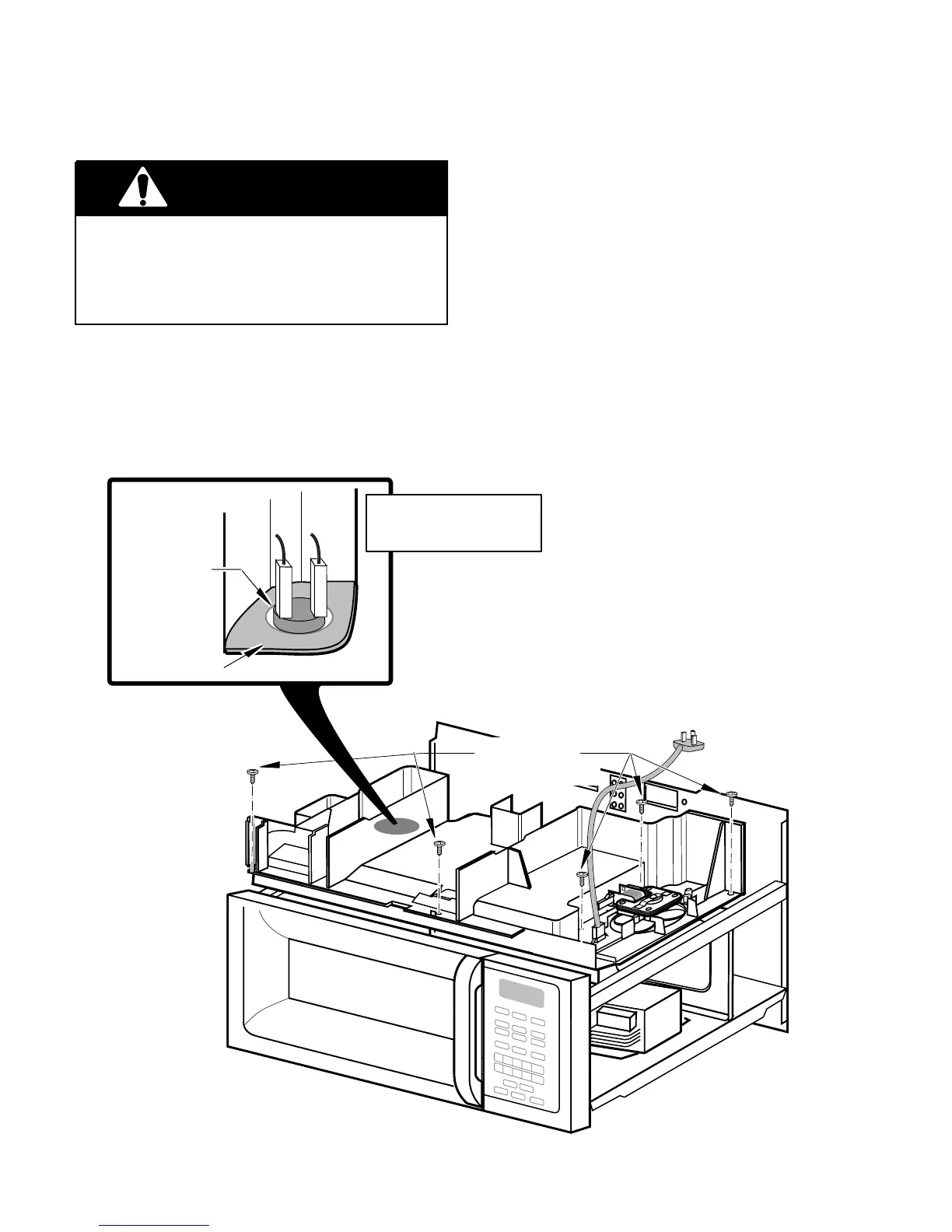

REMOVE FIVE
AIR DUCT SCREWS
THE CAVITY THERMAL
FUSE OPENS AT 230˚F
AND RESETS AT 140˚F
CAVITY
THERMAL
FUSE
AIR DUCT
