29

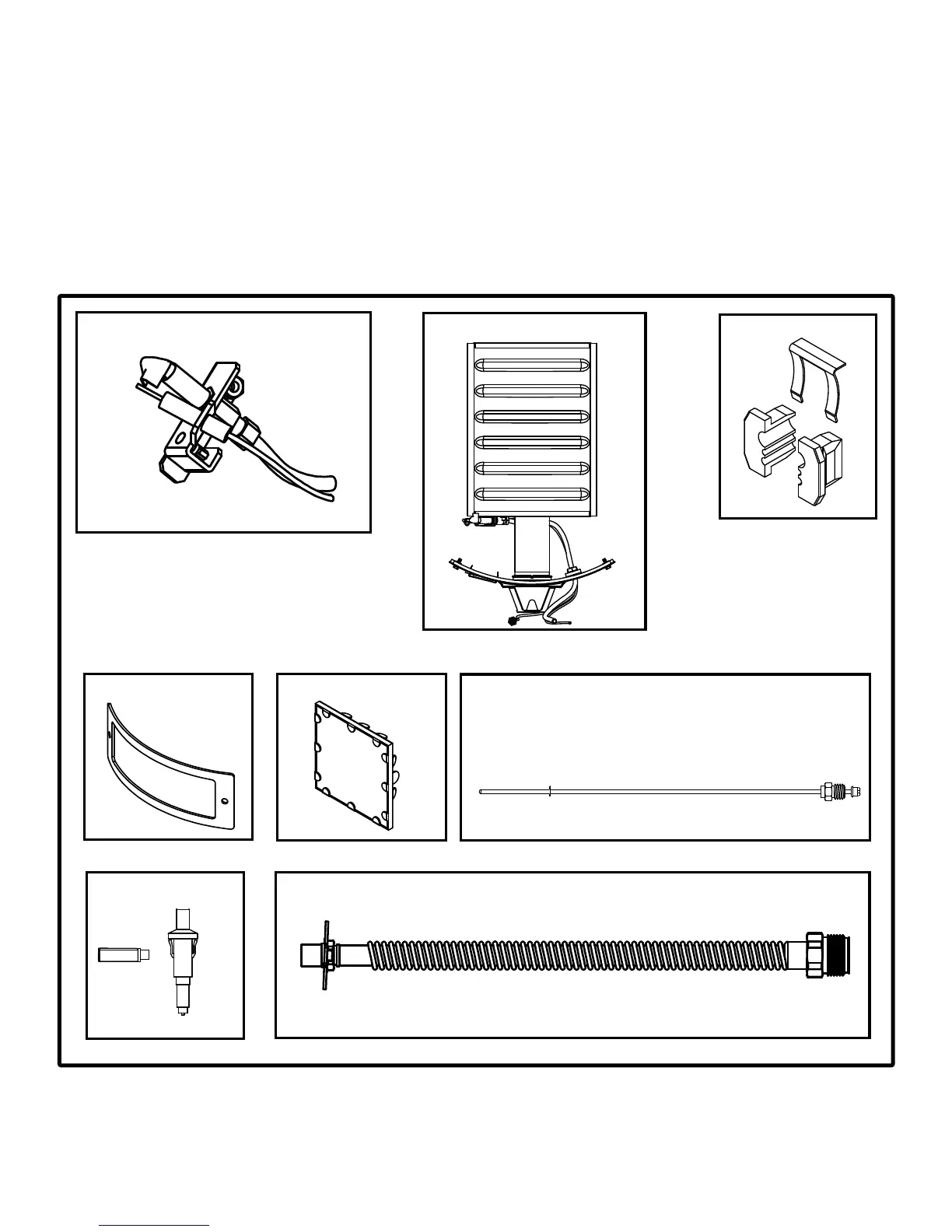

Listed Parts Kits and Illustrations
Item 12: Pilot assembly which contains the pilot assembly and igniter electrode. (Natural Gas)
Item 13: Burner Door assembly which contains the burner, gasket, door, pilot tube, two piece wire connector
with retainer clip, and pilot assembly. (Natural Gas/Low Nox)
Item 14: Contains two piece wire connector and retainer clip
Item 15: Contains burner door gasket
Item 16: Contains viewport
Item 17: Contains thermocouple
Item 18: Contains piezoelectric igniter button
Item 19: Contains flexible manifold tube
Item #15
Item #14
Item #16
Item #13
Item #12
Item #18
Item #17
Item #19
Alternate
Igniter
WHIRLPOOL, FLAME LOCK & DESIGN, and FLAME LOCK are trademarks of Whirlpool, U.S.A. © 2007 Whirlpool Corporation. All rights reserved.
Manufactured under license by American Water Heater Company, Tennessee.
