Proper routing of the drain hose protects your oor from damage
due to water leakage. Read and follow these instructions.

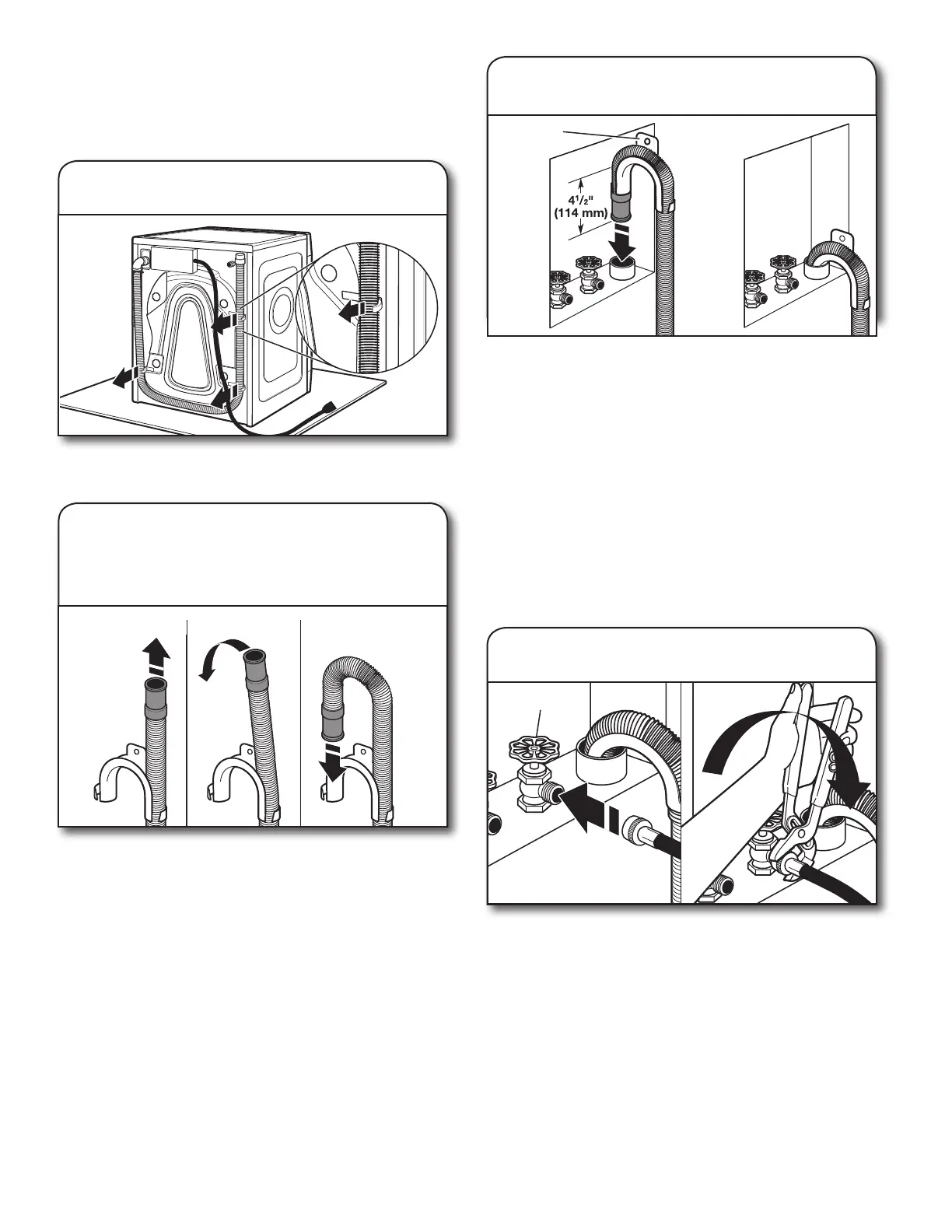

1. Remove drain hose from washer/dryer
Gently pull the corrugated drain hose from the shipping clips.
Route Drain Hose
2. Connect laundry tub drain or
standpipe drain hose form (oor
standpipe, wall standpipe, or laun-
dry tub drain installations only)
For oor standpipe, wall standpipe, or laundry tub drain
installations, you will need to connect the drain hose form to
the end of the drain hose. You may need additional parts with
separate directions. See “Assistance or Service.”
3. Place drain hose in standpipe
Place hose into standpipe (shown in picture) or over side of
laundry tub.
IMPORTANT: Only 41⁄2” (114 mm) of drain hose should be
inside standpipe; do not force excess hose into standpipe or lay
on bottom of laundry tub. Drain hose form must be used.
Connect Inlet Hose
1. Connect inlet hose to water faucet
Attach hose to cold water faucet. Screw on coupling by hand
until it is seated on washer. Use pliers to tighten couplings an
additional two-thirds turn.
IMPORTANT: Do not overtighten or use tape or sealants on
valve when attaching to faucet or washer/dryer. Damage can
result.
Washer/dryer must be connected to the cold water faucet with a
new inlet hose with a at washer. Do not use the old hose.
NOTE: Hose must be attached and have water owing to inlet
valve.
Drain
hose form
Cold Water
