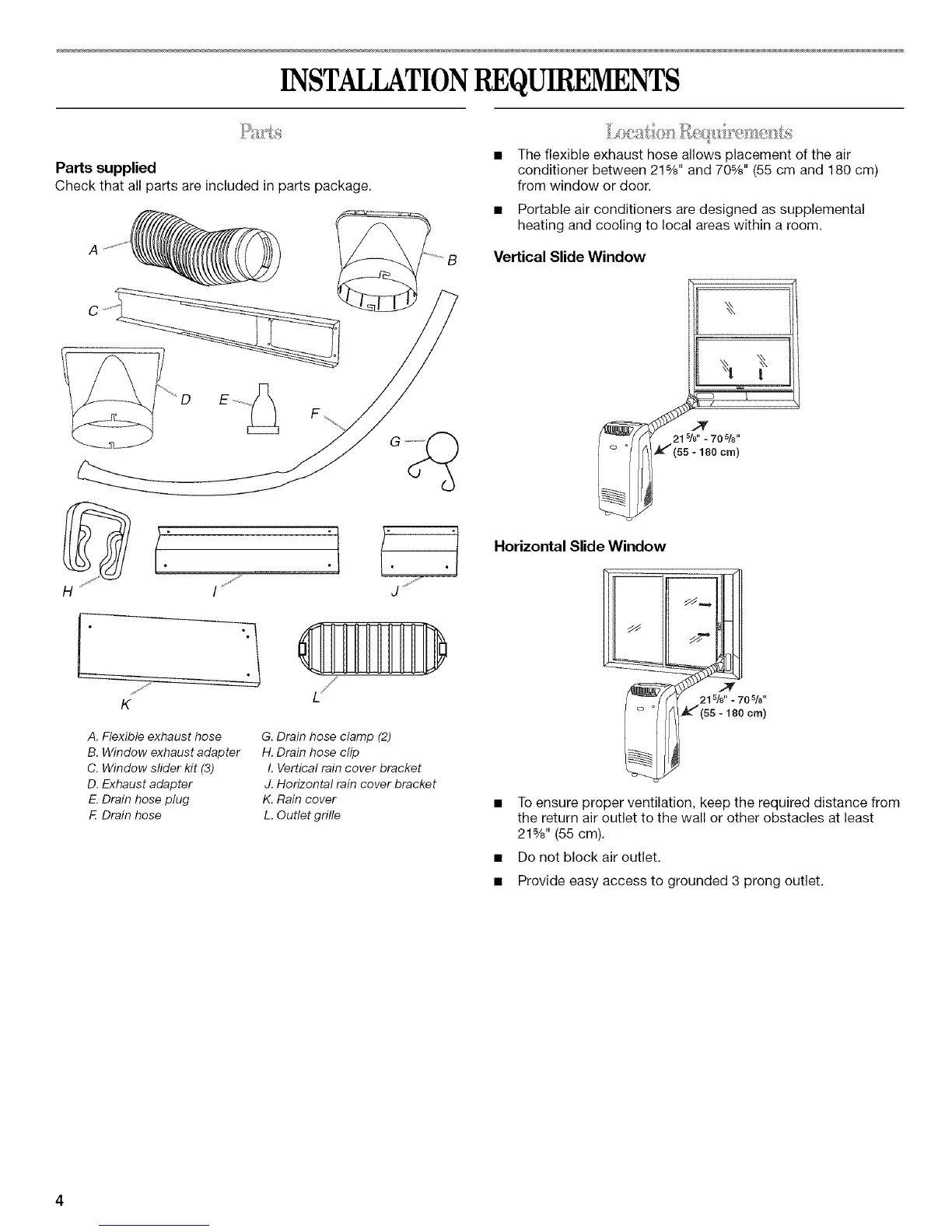

INSTALLATIONREQUIREMENTS
Parts supplied
Check that all parts are included in parts package,
°=
A. Flexible exhaust hose
B. Window exhaust adapter
C. Window slider kit (3)
D. Exhaust adapter
E. Drain hose plug
F. Drain hose
G. Drain hose clamp (2)
H. Drain hose clip
L Vertical rain cover bracket
J. Horizontal rain cover bracket
K. Rain cover
L. Outlet grille
The flexible exhaust hose allows placement of the air
conditioner between 21%" and 70%" (55 cm and 180 cm)
from window or door.
Portable air conditioners are designed as supplemental
heating and cooling to local areas within a room.
Vertical Slide Window
5 - 180 cm)
Horizontal Slide Window
• To ensure proper ventilation, keep the required distance from
the return air outlet to the wall or other obstacles at least
21%" (55 cm).
• Do not block air outlet.
• Provide easy access to grounded 3 prong outlet.
