3-1
COMPONENT LOCATIONS
This section instructs you on how to service the Dehumidifier. The components and their loca-
tions are shown below.
NOTE: The sealed system in the Dehumidifier is not serviced.
COMPONENT ACCESS
Electronic
Control

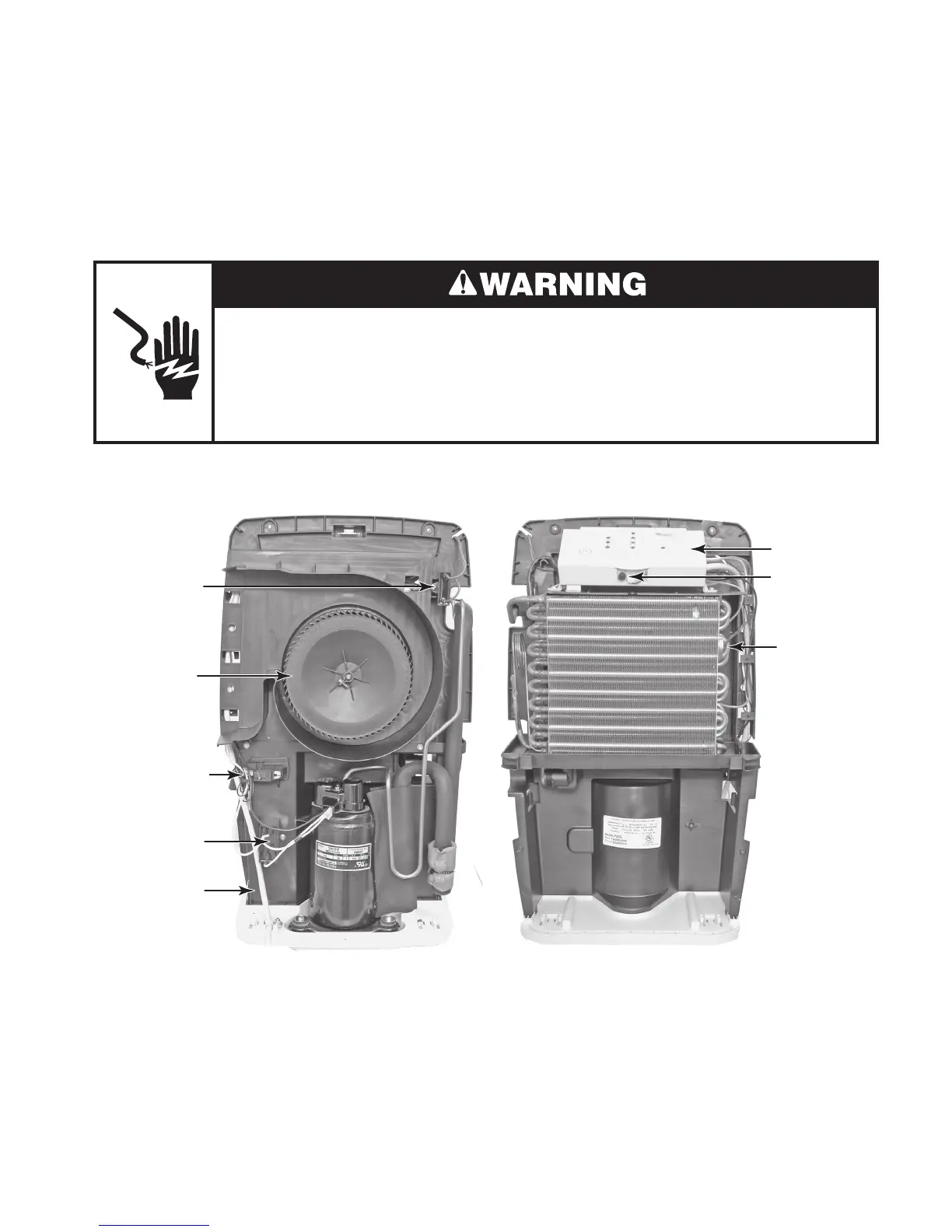

FRONT COMPONENTS
Thermistor
Fan Capacitor
Fan Motor
Bucket Switch
Compressor
Capacitor
REAR COMPONENTS
Electronic Control Unit Shown
Power Supply
Cord
Humidistat
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
