Whirlpool ADP 536 WT - Electrical Data; Water Levels; Water Measuring; Regenerating Steps and Volumes

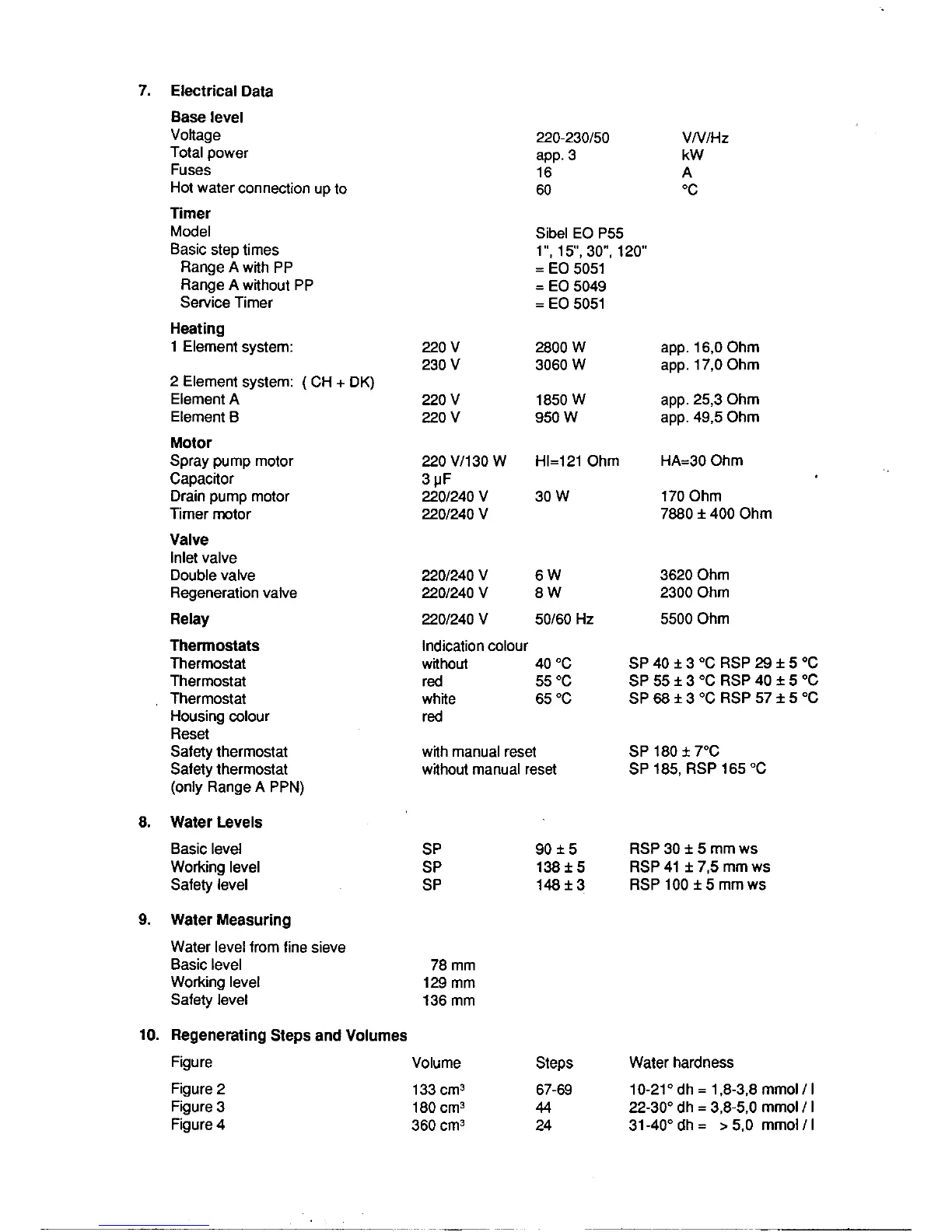

7. Electrical Data
Base level
Voltage 220-230/50 VN/Hz
Total power app. 3 kW
Fuses 16 A
Hot water connection up to 60 °C
Timer
Model Sibel EO P55
Basic step times 1", 15", 30", 120"
Range A with pp = EO 5051
Range A without pp = EO 5049
Service Timer = EO 5051
Heating
1 Element system: 220 V 2800 W app. 16,0 Ohm
230 V 3060 W app. 17,0 Ohm
2 Element system: (CH + DK)
Element A 220 V 1850 W app. 25,3 Ohm
Element B 220 V 950 W app. 49,5 Ohm
Motor
Spray pump motor 220 V/130 W HI=121 Ohm HA=30 Ohm
Capacitor 3 ~F .
Drain pump motor 220/240 V 30 W 170 Ohm
Timer motor 220/240 V 7880 :t 400 Ohm
Valve
Inlet valve
Double valve 220/240 V 6 W 3620 Ohm
Regeneration valve 220/240 V 8 W 2300 Ohm
Relay 220/240 V 50/60 Hz 5500 Ohm
Thermostats Indication colour
Thermostat without 40 °C SP 40 :t 3 °C RSP 29 :t 5 °C
Thermostat red 55 °C SP 55 :t 3 °C RSP 40 :t 5 °C
.Thermostat white 65 °C SP 68 :t 3 °C RSP 57 :t 5 °C
Housing colour red
Reset
Safety thermostat with manual reset SP 180 :t 7°C
Safety thermostat without manual reset SP 185, RSP 165 °C
(only Range A PPN)
8. Water Levels
Basic level SP 90 :t 5 RSP 30 :t 5 mm ws
Working level SP 138:t 5 RSP 41 :t 7,5 mm ws
Safety level SP 148 :t 3 RSP 100 :t 5 mm ws
9. Water Measuring
Water level tram fine sieve
Basic level 78 mm
Working level 129 mm
Safety level 136 mm
10. Regenerating Steps and Volumes
Figure Volume Steps Water hardness
Figure 2 133 cm3 67 -69 10-21 ° dh = 1,8-3,8 mmol 1 I
Figure 3 180 cm3 44 22-30° dh = 3,8-5,0 mmol 1 I
Figure 4 360 cm3 24 31-40° dh = > 5,0 mmoll I
