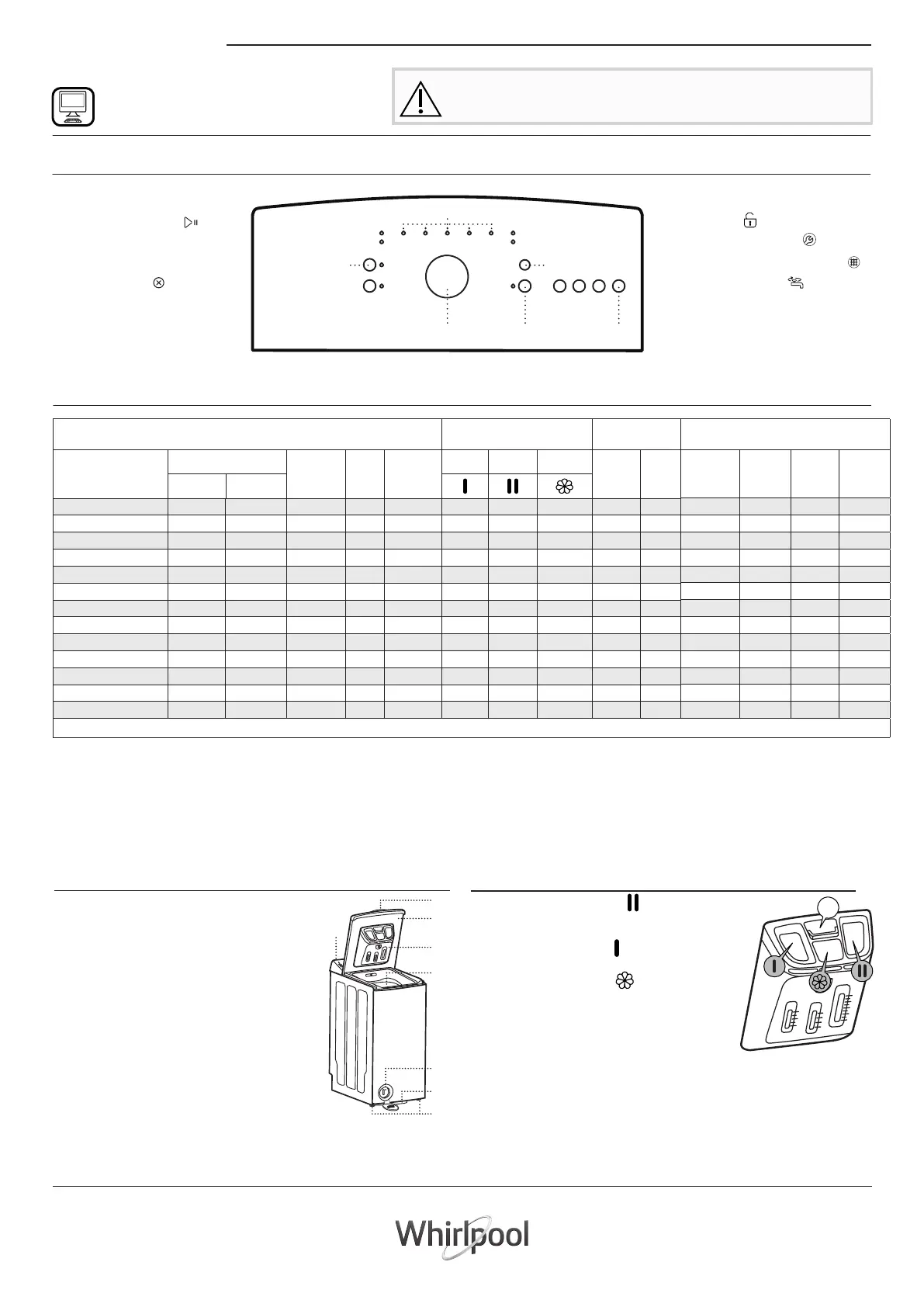

Whirlpool AWE7101N - Control Panel; Programme Chart; Product Description; Detergent Dispenser

4
User manual
1 Programme selector
2 “Start/Pause“ button
3 “Spin“ button
4 “Cold Wash" button
5 “Reset“ button
6 Washing phase
INDICATORS
Lid open
Failure: Call Service
Failure: Water filter clogged
Failure: No water
In the event of any failure, refer to the
“TROUBLESHOOTING“ section
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please
r
egister your product on
www.whirlpool.com.hk/www.whirlpool.com.sg
CONTROL PANEL
PROGRAMME CHART
PRODUCT DESCRIPTION
1. Lid handle
2. Lid
3. Control panel
4. Detergent dispenser
5. Drum
6.
Water filter - behind the cover
7. Mobility lever (depending on model)
8. Adjustable feet (x2)
5.
1.
6.
7.
2.
3.
4.
8.
DETERGENT DISPENSER
Main wash compartment
Detergent for the main wash or stain
remover.
Prewash compartment
Detergent for the prewash.
Softener compartment
Fabric softener. Liquid starch. Bleach.
Pour in softener, starch or bleach solution
only up to the “max” mark.
Release button 
Press to remove tray for cleaning.

Detergents and additives
Recommended
detergent
Programme
Max load 7,0 kg
Temperatures
Max, spin
speed
(rpm)
Max
load
(kg)
Duration
(h : mm)
Prewash
Main
wash
Softener
Powder
Liquid
Setting Range
Cotton
60°C 40 - 90°C 1000 7,0 2:35
  
 
Synthetics
40°C 40 - 60°C 1000 3,0 1:50
  
 
Hygiene
60°C 60°C 1000 7,0 2:30
 
 
Delicates
30°C 30°C 1000 1,5 0:45
  
–

Antistain
20°C 20°C 1000 4,0 2:30 –
 
 
Mixed 45’
40°C 40°C 1000 7,0 0:45
 
 
Speed 15’
30°C 30°C 1000 3,0 0:15 –
 
–

Wool/Handwash
40°C 20 - 40°C 1000 1,0 0:35 –
 
–

Eco Cotton
60°C 40 - 60°C 1000 7,0 4:00
–
 
 
Drum clean
90°C 90°C 0 0,0 1:20
–
 
 
Rinse + Spin
– – 1000 7,0 – – –

– –
Spin
– – 1000 7,0 – – – – – –
Drain
– – – – – – – – – –
 Dosing required  Dosing
optional
Eco Cotton 60°C- Reference wash cycle.
This data may differ in your home due to changing conditions in inlet water
temperature, water pressure etc. Approximate programme duration values refer to the
default setting of the programmes, without options.
Before using the appliance carefully read the Safety Instruction.
Before using the machine, it is imperative that the transport bracket is removed.
For more detailed instructions on how to remove it, see the Installation Guide.
1 2 3
54
6
Options
Prewash
Rapid
Intensive
Rinse
Rinse
Hold










–
–





–
–
–
–
–
–
–
–



–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–


6th Sense - The sensor technology adapts water, energy and programme duration to
your wash load.
 


