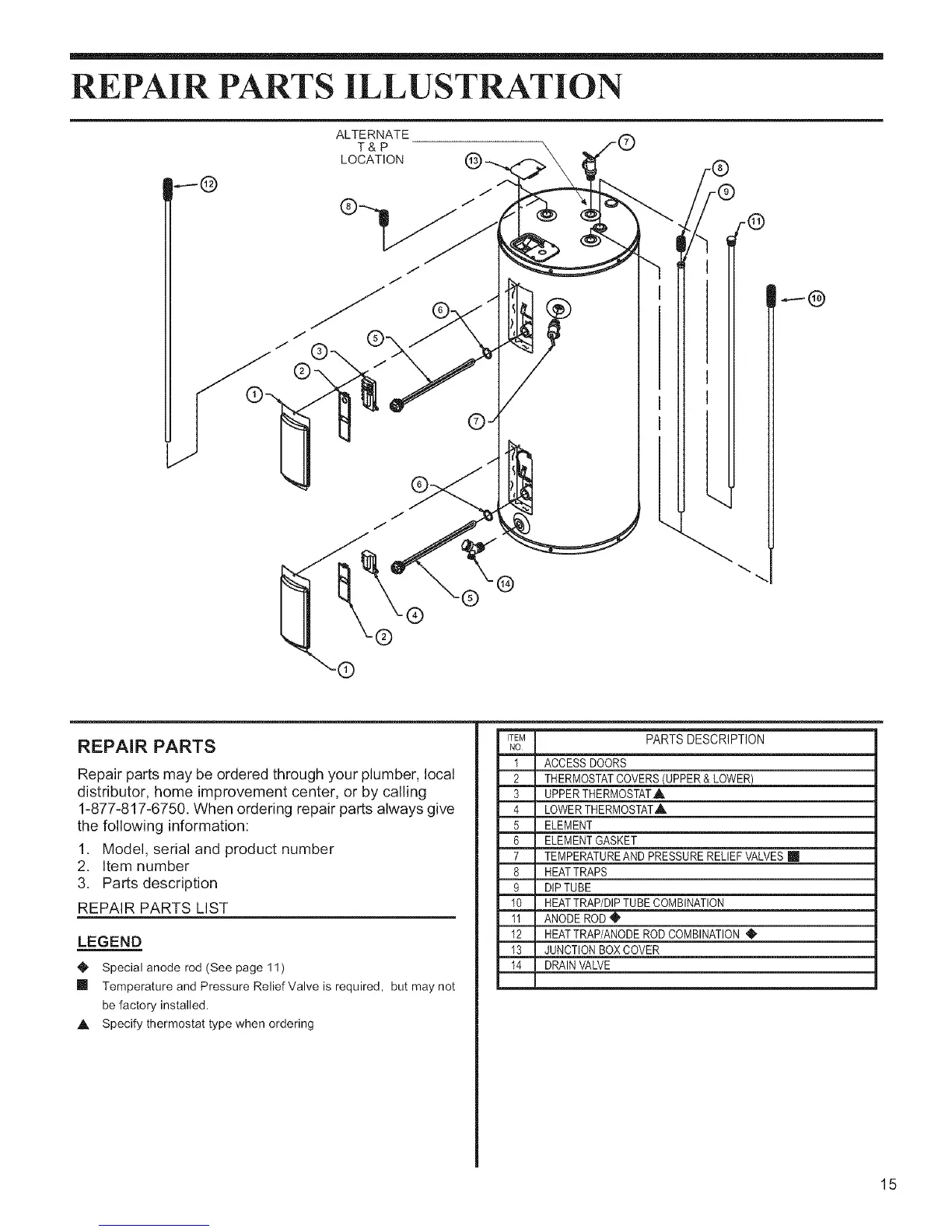

REPAIR PARTS ILLUSTRATION
.__-@
ALTERNATE
T&P
LOCATION
REPAIR PARTS
Repair parts may be ordered through your plumber, local
distributor, home improvement center, or by calling
1-877-817-6750. When ordering repair parts always give
the following information:
1. Model, serial and product number
2. Item number
3. Parts description
REPAIR PARTS LIST
LEGEND
Special anode rod (See page 11)
[] Temperature and Pressure Relief Valve is required, but may not
be factory installed.
A Specify thermostat type when ordering
ITEM PARTS DESCRIPTION
NO
1 ACCESS DOORS
2 THERMOSTATCOVERS(UPPER& LOWER)
3 UPPERTHERMOSTATA
4 LOWERTHERMOSTATA
5 ELEMENT
6 ELEMENTGASKET
7 TEMPERATUREAND PRESSURERELIEFVALVES[]
8 HEATTRAPS
9 DIPTUBE
10 HEATTRAP/DIPTUBECOMBINATION
11 ANODERODO
12 HEATTRAP/ANODERODCOMBINATION
13 JUNCTIONBOXCOVER
14 DRAINVALVE
15
To Next Page
