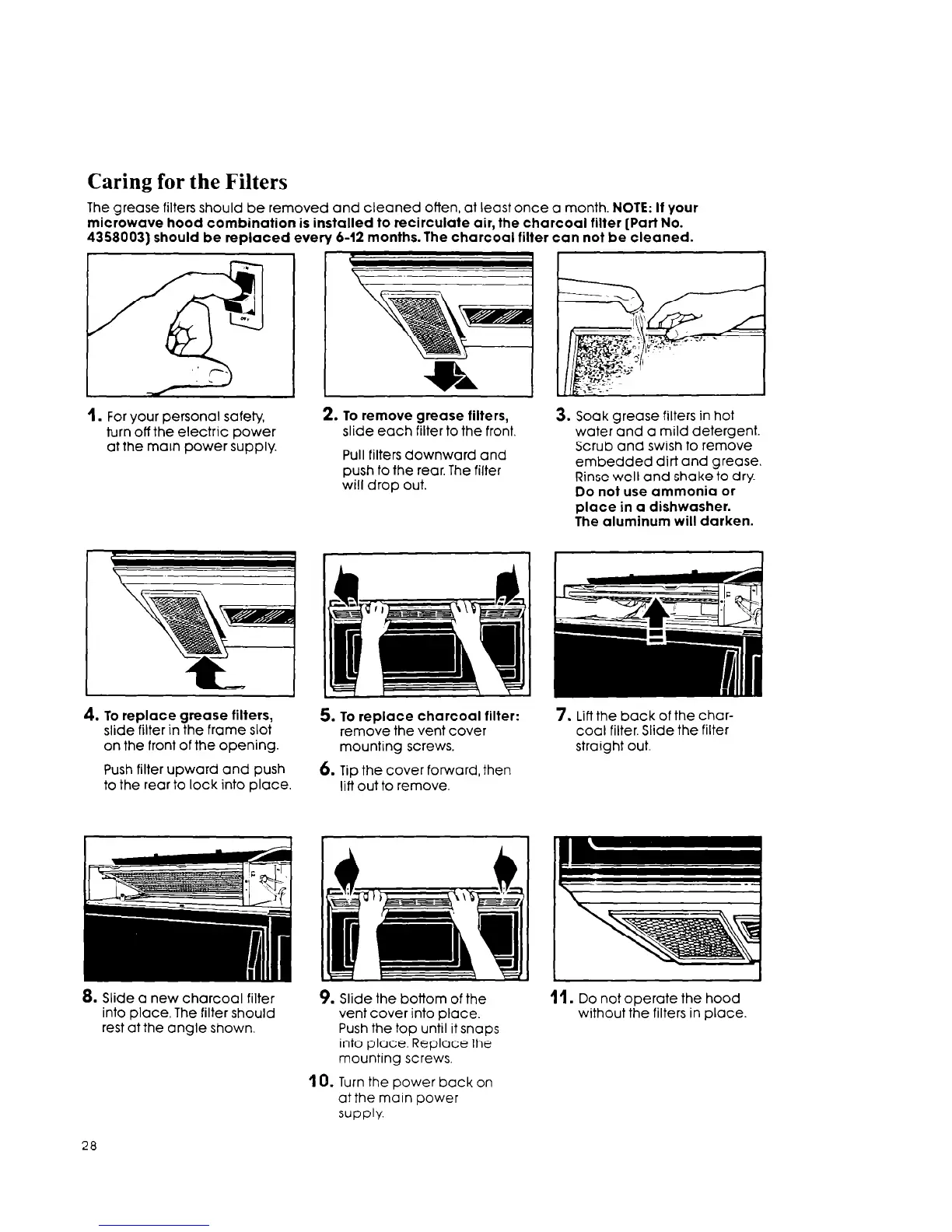

Caring for the Filters
The grease filters should be removed and cleaned often, at least once a month. NOTE: if your
microwave hood combination is installed to recirculate air, the charcoal filter [Part No.
4358003) should be replaced every 6-12 months. The charcoal filter can not be cleaned.
1.
For your personal safety,
turn off the electric power
at the main power supply.
4. To replace grease filters,
slide filter in the frame slot
on the front of the opening.
Push filter upward and push
to the rear to lock into place.
8.
Slide a new charcoal fitter
into place. The filter should
rest at the angle shown.
2. To remove grease filters,
slide each filter to the front.
Pull filters downward and
push to the rear. The filter
will drop out.
3. Soak grease filters in hot
water and a mild detergent.
Scrub and swish to remove
embedded dirt and grease.
Rinse welt and shake to dry.
Do not use ammonia or
place in a dishwasher.
The aluminum will darken.
5. To replace charcoal filter:
remove the vent cover
mounting screws.
6. Tip the cover forward, then
lift out to remove.
9. Slide the bottom of the
vent cover into place.
Push the top until it snaps
into place. Replace the
mounting screws.
18. Turn the power back on
at the main power
SUPPlY.
7. Lift the back of the char-
coat filter. Slide the filter
straight out.
11. Do not operate the hood
without the filters in place.
28
