Components

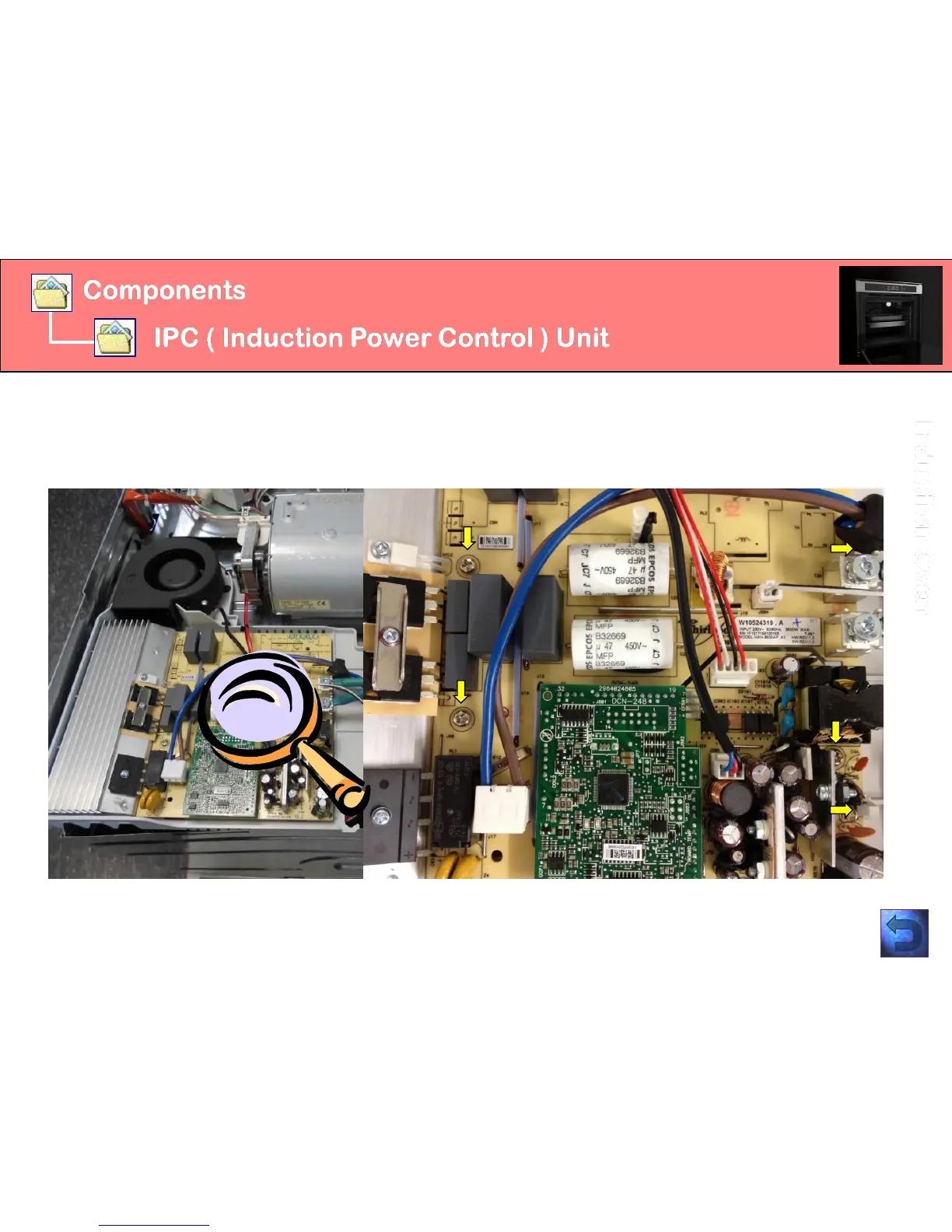

IPC ( Induction Power Control ) Unit
Induction Oven
The Induction power board IPC is fixed with 3 self tapping Philips screws. When
disassembling the board from the plastic bracket start with lifting the heat sink and slide it
to the same side where the heat sink is mounted. On the opposite side the printed circuit
board is fixed with 2 screws.
