Whirlpool WFW92HEFW User Manual

4
4"
(102 mm)
1"
(25 mm)
7"
(178 mm)
14"
(356 mm)

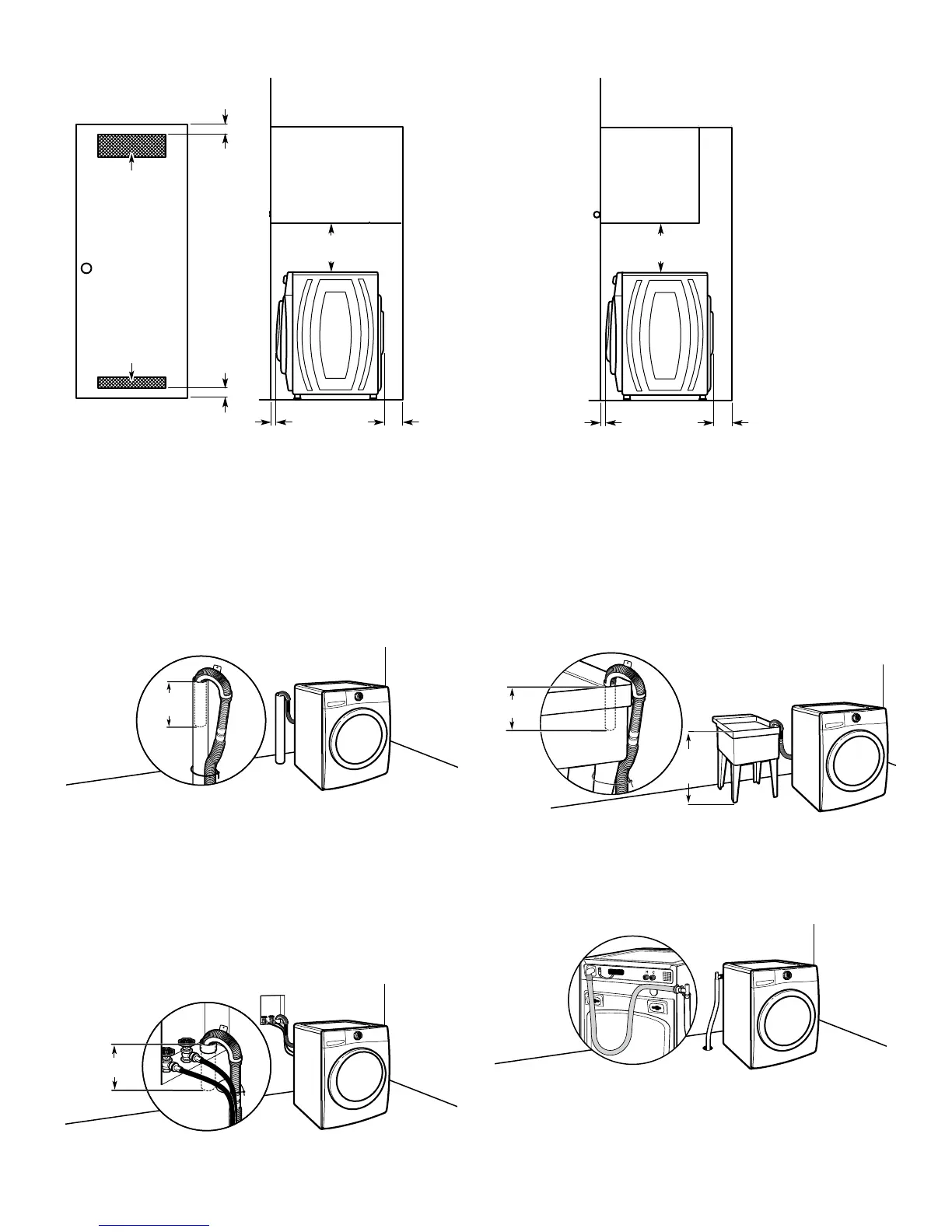

Custom cabinet installation:Recessed area or closet installation (washer only):
1"
(25 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
3"
(76 mm)
3"
(76 mm)
4"
(102 mm)
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. See “Alternate Parts”. Minimum siphon
break height: 28" (710 mm) from bottom of washer. (Additional
hoses may be needed.)
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. A 1/4" (6 mm)
diameter to 1" (25 mm) diameter Standpipe Adapter Kit is
available (Part Number 3363920). Top of standpipe must be at
least 30" (762 mm) high; install no higher than 96" (2.44 m) from
bottom of washer. If you have an overhead sewer and need to
pump higher than 96" (2.44 m), a sump pump and associated
hardware are needed. See “Alternate Parts”.
Wall standpipe drain system
Laundry tub drain system
Minimum capacity: 20 gal. (76 L). Top of laundry tub must
be at least 30" (762 mm) above oor; install no higher than
96" (2.44 m) from bottom of washer.
4.5"
(114 mm)
4.5"
(114 mm)
See requirements for oor standpipe drain system.
30"
(762 mm)
min.
4.5"
(114 mm)
Floor drain system
DRAIN SYSTEM
Drain system can be installed using a oor drain, wall standpipe,
oor standpipe, or laundry tub. Select method you need.
IMPORTANT: To avoid siphoning, only 4.5" (114 mm) of drain
hose should be inside standpipe. Always secure drain hose with
cable tie.
* Recommended spacing of 1" (25 mm) on all sides of washer. ** Recommended spacing minimum 0" (0 mm)
*
1"
(25 mm)
4" - 1½"**
(102 mm - 38 mm)
4"
(102 mm)
1"
(25 mm)
7"
(178 mm
)
14"
(356 mm)
18"
(457 mm)
4" - 1½"**
(102 mm - 38 mm)
*
DRAIN SYSTEM

Whirlpool WFW92HEFW Specifications

General

Style	front load
Color	white
Washer Capacity	4.5 cubic feet
Max Spin Speed	1200 revolutions per minute
Spin Speeds	5
Number of Cycles	12
Cycle Selections	normal, whites, heavy duty, towels, colorlast, sanitize, clean washer with affresh, drain & spin, wash & dry, quick wash, delicates, cold wash
Options	steam clean, ecoboost, adjust delay time, fan fresh, extra rinse, cycle signal, control lock, pre soak
Temperature Settings	5
Temperature Selections	cold, cool, warm, hot, extra hot
Soil Levels	extra heavy, heavy, normal, light
Internal Heater	yes
Delay Start / End	yes
Child Lock	yes
Cycle Signal	yes
Interior Light	yes
Steam	yes
Smart Home	no
Annual Energy Consumption	79 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	33.31 inches
