Whirlpool WSN11W - Refrigerant Circuit

Ref. No. : SM77-05-058-0 Printed : Nov’2005
Page : 4

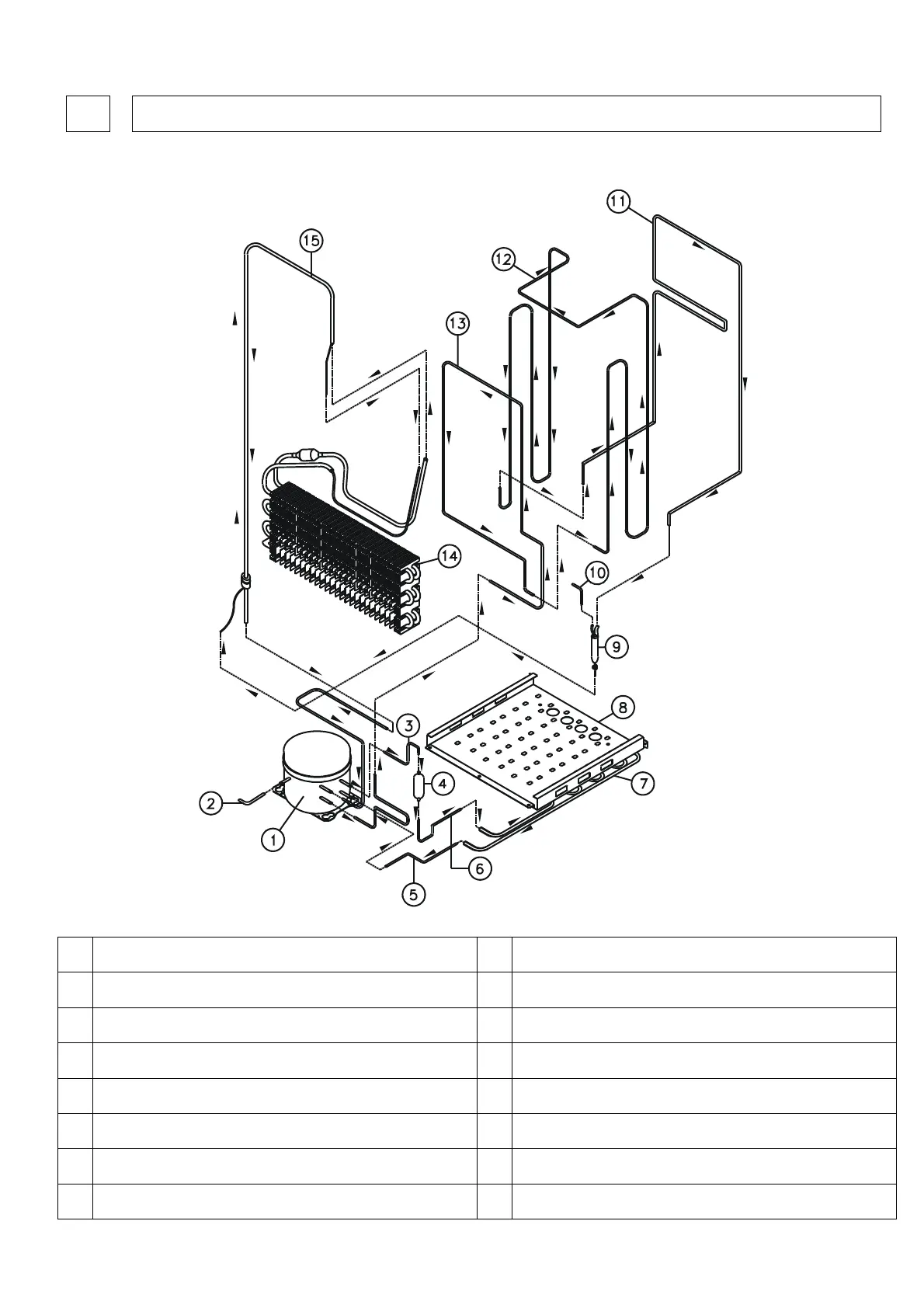

3 Refrigerant Circuit
Model : WSN11W
1 COMPRESSOR 9 DRYER ASS’Y
2 TUBE CHARGE 10 TUBE DISCHARGE
3 TUBE CONNECT 139 11 TUBE FRAME
4 ACCUMULATOR / MUFFER 12 TUBE CREST
5 TUBE CONNECT 145 13 TUBE CREST S
6 TUBE CONNECT 143 14 EVAPORATOR ASS’Y
7 CONDENSER PIPE 15 SUCTION TUBE ASS’Y
8 CONDENSER PLATE
