Whirlpool WSN11W - Trouble Shooting; MODEL WSN11 W (VIETNAM)

Ref. No. : SM77-05-058-0 Printed : Nov’2005
Page : 5

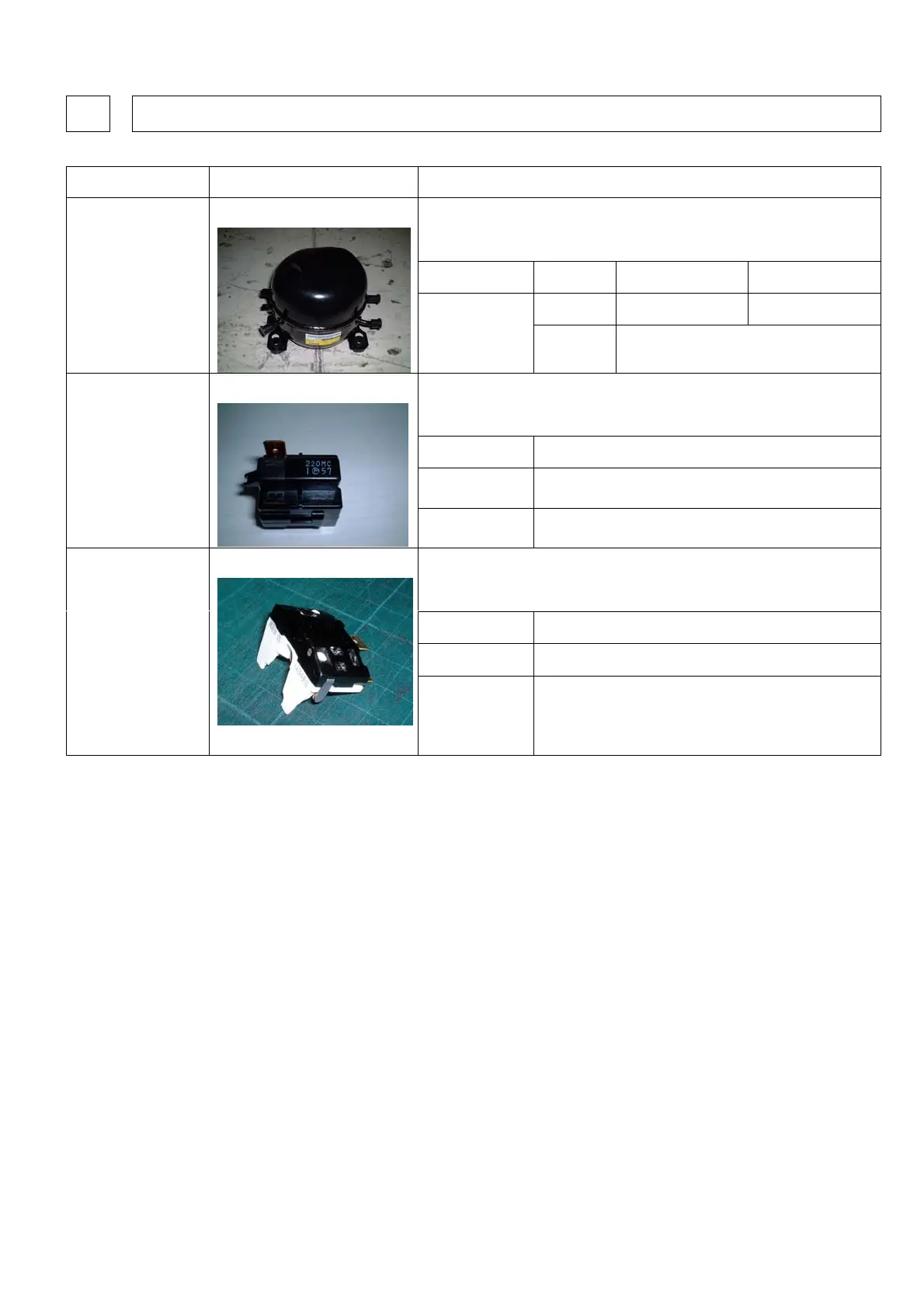

4 Trouble Shooting
4-1) MODEL WSN11W (VIETNAM)
Part Name Picture Check Method and Criterion
Measure the resistance with a tester.
(Ambient temperature : Room temperature 25°C)
Model Main Wiring Auxiliary Wiring
Normal
11.94 Ω (Approx.) 18.39 Ω (Approx.)
Compressor
C-BZN152 L6Z
Abnormal
Open(∞ Ω) or Short Circuited (0 Ω)
Measure the resistance with a tester.
(Ambient temperature : Room temperature 25°C)
Model PTH7M220MC1
Normal
22 Ω ± 20% (Approx.)
Starting Relay
Abnormal
Open(∞Ω) or Short Circuited (0Ω)
Measure the resistance with a tester.
(Ambient temperature : Room temperature 25°C)
Model 4TM734RHBYY-53
Normal
Less than 1 Ω (Approx.)
Overload Protector
Abnormal
Open(∞Ω) or Short Circuited (0Ω)
