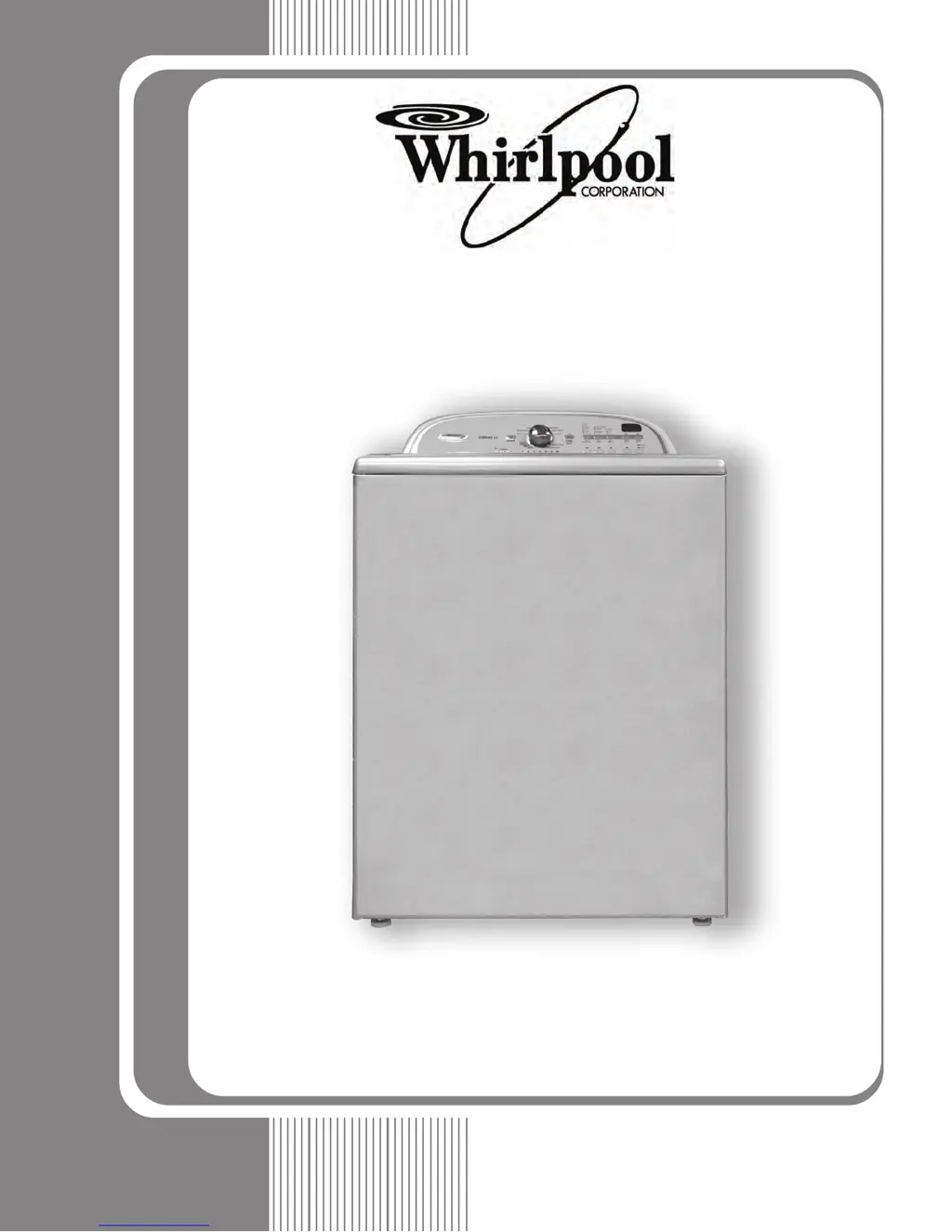

Whirlpool WTW5500XW - User Manual

Other manuals for Whirlpool WTW5500XW

Use And Care Guide36 pages

Questions and Answers

C
Christina ReyesAug 12, 2025
Why is my Whirlpool WTW5500XW Washer not draining and loads are still wet?
- K
  Kathryn HarrisAug 12, 2025
  Your Whirlpool Washer might not be draining properly due to several reasons. Small items may be caught in the pump or between the basket and tub, so empty pockets and use garment bags for small items. Also, the washer may be overloaded, so use a cycle with a high spin speed. Ensure the plumbing has correct drain hose installation and that you are using only HE detergent, because wrong or too much detergent can cause excessive suds, slowing down the draining and spinning. To remove extra suds, select the DRAIN & SPIN cycle.
D
Deborah GarciaAug 17, 2025
What to do if there is sand, pet hair, or lint on clothes after washing in my Whirlpool WTW5500XW?
- A
  Angela HuangAug 17, 2025
  If you find sand, pet hair, or lint on your clothes after washing in your Whirlpool Washer, it may be due to heavy residues requiring additional rinsing. Try adding an Extra Rinse to the selected cycle. You can also select a cycle with a slower wash action and spin speed, but be aware that items will be wetter. Load garments in loose heaps evenly around the basket wall, not above the stainless steel portion, and reduce tangling by mixing types of load items.
A
Adam AnthonyAug 21, 2025
How to improve cleaning performance of my Whirlpool Washer to remove stains?
- M
  Mrs. Christine Yu MDAug 21, 2025
  To improve cleaning and stain removal with your Whirlpool Washer, make sure you are using only HE detergent and selecting the correct cycle for your fabric type. A higher soil level cycle option and warmer wash temperature can also improve cleaning. Load dispensers before starting a cycle, wash like colors together, and promptly remove clothes after the cycle to prevent dye transfer. Run the Clean Washer cycle with AFFRESH™ monthly. Also, empty pockets, zip zippers, and snap or hook fasteners before washing to prevent damage. Tie all strings and straps before starting the wash. Load garments in loose heaps evenly around the basket wall to avoid overloading, and do not pour liquid chlorine bleach directly onto the load.
G
Gary OneillAug 29, 2025
What to do if my Whirlpool Washer dispenser is not working correctly?
- B
  Brenda GreenAug 29, 2025
  If your Whirlpool Washer dispenser isn't working correctly, it could be due to clogged dispensers or laundry products dispensing too soon. Always select the Fabric Softener option to ensure proper dispensing. Load dispensers before starting a cycle. Note that it is normal for small amounts of water to remain in the dispenser. Homes with low water pressure may result in residual powder in the dispenser. Use only liquid chlorine bleach in the bleach dispenser.
D
Dr. Michelle BeasleyNov 3, 2025
Why won't my Whirlpool WTW5500XW Washer run or fill?
- D
  Douglas PittsNov 3, 2025
  Your Whirlpool Washer may not run or fill due to several reasons. First, ensure both hot and cold water hoses are correctly attached and that water is flowing to the inlet valve. Both hot and cold water faucets must be turned on. Check the inlet valve screens for any clogs and inspect the inlet hoses for kinks that could restrict water flow. Also, make sure the power cord is plugged into a grounded 3-prong outlet, without using an extension cord, and that the outlet has power. Reset any tripped circuit breakers or replace blown fuses. The lid must be closed for the washer to operate. The washer may pause during certain cycles or to reduce suds, so do not interrupt the cycle. If the washer spins the load before filling, it might be determining the load size; in this case, remove several ite...
C
changkimberlyNov 7, 2025
What to do if my Whirlpool Washer is not draining or spinning and loads are still wet?
- V
  vjohnsonNov 7, 2025
  If your Whirlpool Washer isn't draining or spinning, and your loads are still wet, here's what you can check: Small items might be caught in the pump or between the basket and tub; empty pockets and use garment bags for small items. Select a cycle with a high spin speed. The washer may be overloaded or unbalanced. Ensure the plumbing is correctly installed and that the drain hose doesn't extend into the standpipe farther than 4.5" (114 mm). Verify the drain hose is properly installed using the drain hose form and securely attached to the drainpipe or tub, without taping over the drain opening. Lower the drain hose if the end is higher than 96" (2.4 m) above the floor and remove any clogs from the drain hose. Use only HE detergent, measuring it according to the load size. Check if the hot a...
K
Karen OrtegaNov 24, 2025
How to prevent fabric damage in Whirlpool WTW5500XW Washer?
- S
  Scott JohnsonNov 24, 2025
  To prevent fabric damage in your Whirlpool Washer, start by emptying pockets, zipping zippers, and snapping or hooking fasteners before washing to avoid snags and tears. Tie all strings and straps to prevent tangling. Mend any rips and broken threads in seams before washing. Avoid overloading the washer by loading garments in loose heaps evenly around the basket wall, not above the stainless steel portion, and only load with dry items. Use a cycle designed for the fabrics being washed and add only 1 or 2 garments after the washer has started. Do not pour liquid chlorine bleach directly onto the load and wipe up any bleach spills, as undiluted bleach will damage fabrics; use only the amount recommended by the manufacturer. Also, do not place load items on top of the bleach dispenser when lo...

Summary

Vertical Modular Washer Technical Education

Introduction and Objectives

General Information and Safety

Washer Safety Precautions

Essential safety guidelines for operating and servicing the washer.

Model and Serial Number Designations

Model Number Designations

Explains the coding system for model and serial numbers.

Label and Tech Sheet Locations

Shows where to find the model and serial number labels.

Washer Specifications

Specifications for Various Models

Lists technical specifications for different washer models.

Maytag Model Specifications

Details specifications specific to Maytag branded models.

Installation Requirements

Installation Safety and Requirements

Covers safety, tools, location, drain, electrical, and grounding needs.

Tools, Parts, and Location

Lists necessary tools, parts, and location considerations.

Drain, Electrical, and Grounding

Details requirements for water drain, electrical supply, and grounding.

Product Operation Theory

Theory of Operation and Drive System

Explains the internal mechanics and operation of the washer.

Control Panel Features and Cycles

Details the functions of the control panel, cycles, and options.

Using the Washer and Dispensers

Guides on selecting cycles, using dispensers, and basic operation.

Troubleshooting and Diagnostics

Common Problems and Solutions

Lists common issues and their troubleshooting steps.

Diagnostic Tests and Procedures

Provides technical tests for diagnosing control board and component issues.

Component Access and Disassembly

Component Locations

Identifies the location of key internal components.

Disassembly Procedures

Step-by-step guides for removing major washer components.

Wiring Diagram

Washer Wiring Diagram

Visual representation of the washer's electrical connections.

Product Specifications and Warranty Information

Support Contact Information

Lists phone numbers and websites for product support and information.

Whirlpool WTW5500XW Specifications

General

Brand	Whirlpool
Model	WTW5500XW
Type	Top Load Washer
Capacity	3.5 cu. ft.
Color	White
Energy Star Certified	Yes
Number of Wash Cycles	12
Control Type	Electronic
Water Level Selection	Automatic
Agitator Type	Dual Action Agitator
