WhisperKool 4000 - Knockout Locations

www.whisperkool.com | Page 7
Ceiling Mount
5
6
7
8
PROPRIETARY AND CONFIDENTIAL
NEXT ASSY

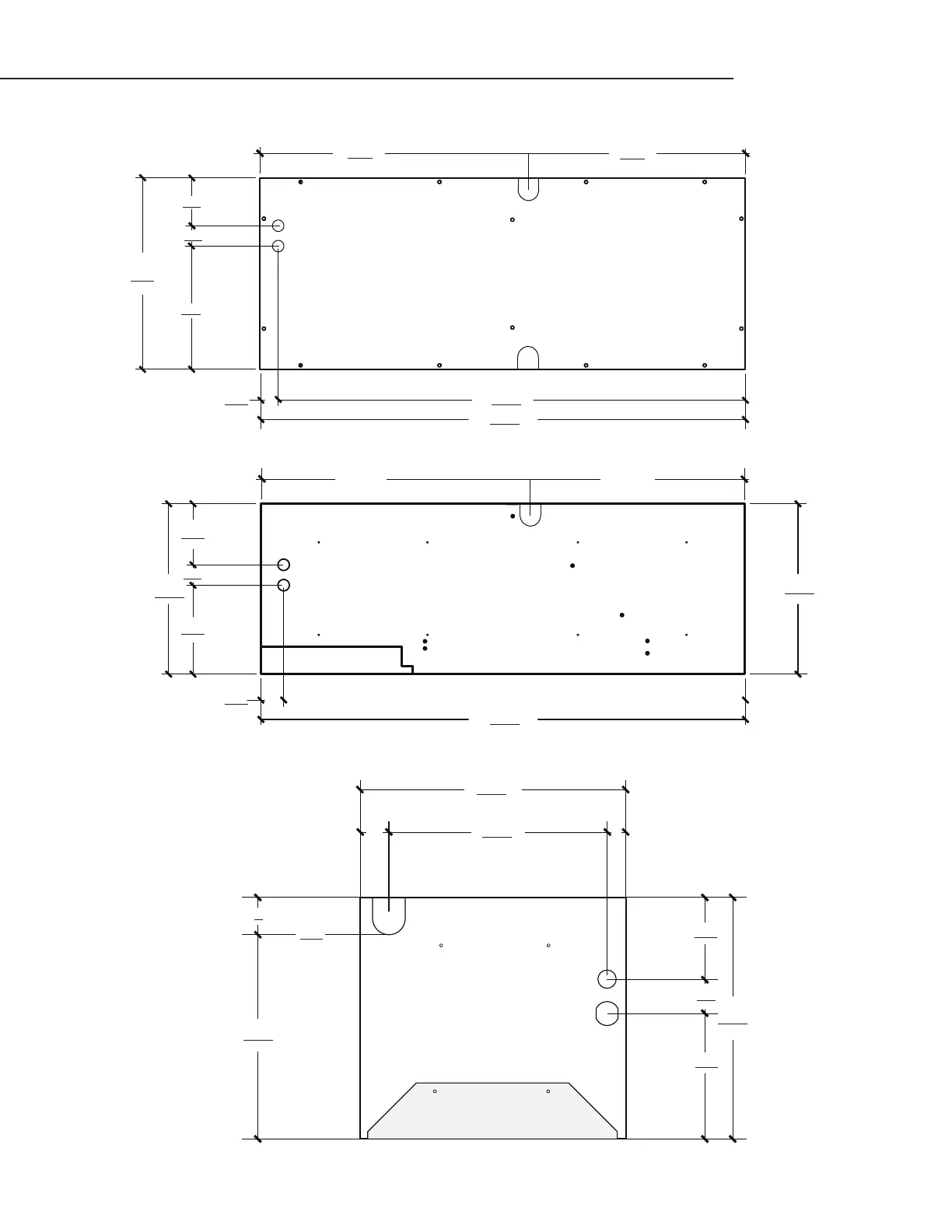

KNOCKOUT LOCATIONS
Side View of Evaporator Unit
Top View of Evaporator Unit
1.5”
8.05”
14.1”
4.55”
1.75”
1.75”
34.25”
35.75”
35.75”
12.65”
6.58”
1.5”
4.57”
12.65”
20.4”
15.35”
20.4”
15.35”
Front View of Evaporator Unit
14.10”
12.65”
10.65”
12.65”
1.5”
4.58”
6.58”
1.45”
2”
KNOCKOUT LOCATIONS
