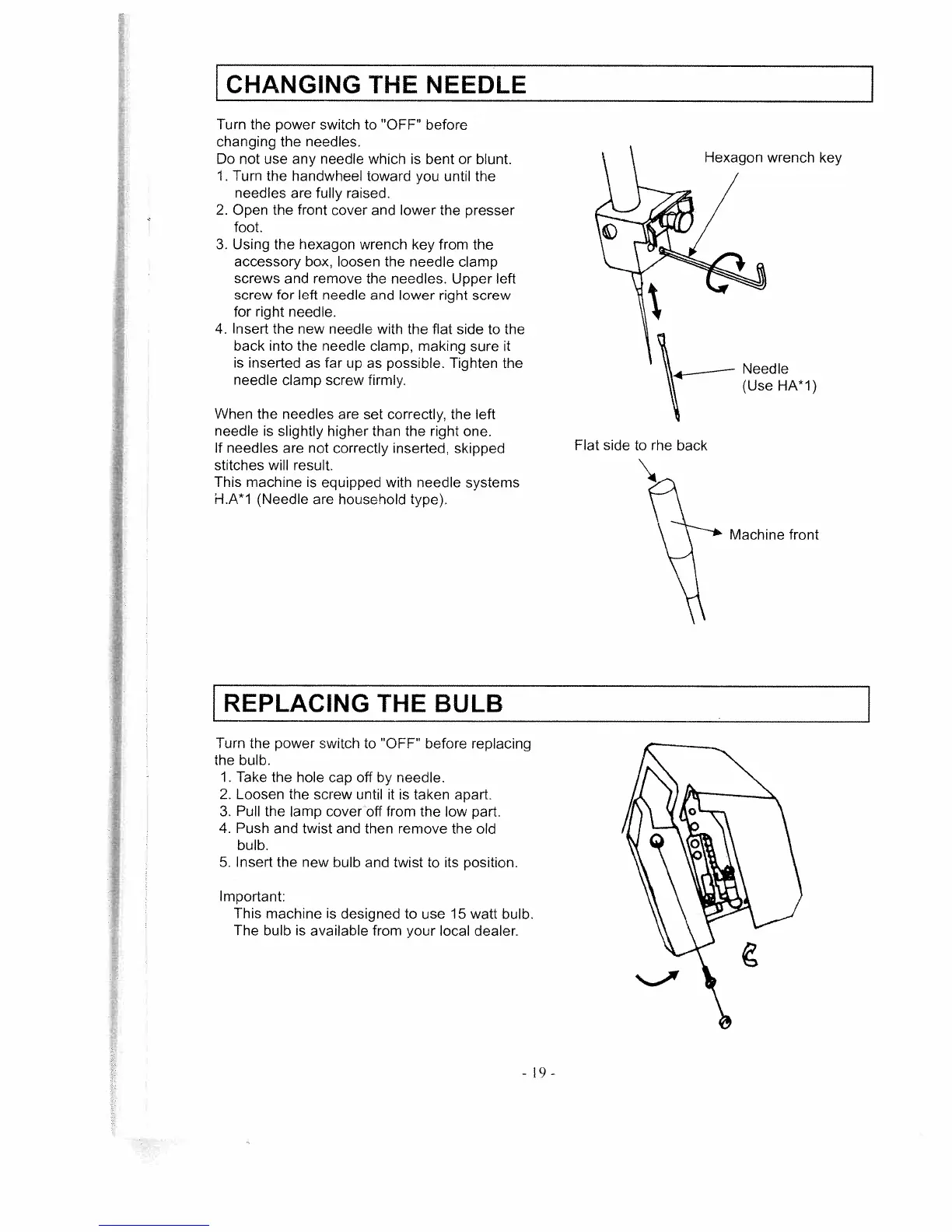

CHANGING THE NEEDLE
Turn the power switch to “OFF” before
changing
the needles.
Do not
use
any needle
which is bent or blunt.
1. Turn the handwheel toward
you until the
needles are fully raised.
2.
Open
the
front
cover and lower the presser
foot.
3. Using the hexagon wrench
key from the
accessory box, loosen the
needle clamp
screws
and remove the needles. Upper left
screw for left needle and
lower right screw
for
right
needle.
4, Insert the new needle
with the flat side
to
the
back into the needle clamp, making
sure it
is inserted
as far up as possible. Tighten the
needle clamp screw firmly.
When the needles
are set correctly, the left
needle is slightly higher than the right one.
If needles are
not correctly inserted, skipped
stitches will result.
This machine is
equipped with needle systems
i1.A*1
(Needle are
household type).
Flat side
to rhe
back
Hexagon
wrench key
Needle
(Use
HA*1)
Machine front
REPLACING
THE BULB
Turn the power switch
to ‘OFF” before replacing
the bulb.
1. Take the hole
cap
off
by
needle.
2. Loosen the screw
until it is taken apart.
3.
Pull
the lamp cover off from
the low part.
4. Push
and
twist
and then remove the
old
bulb.
5.
Insert the new
bulb and twist to its position.
Important:
This
machine is designed to
use
15 watt
bulb.
The bulb is available
from your local dealer.
-
- 19-
