Whynter RPD-501WP User Manual

7

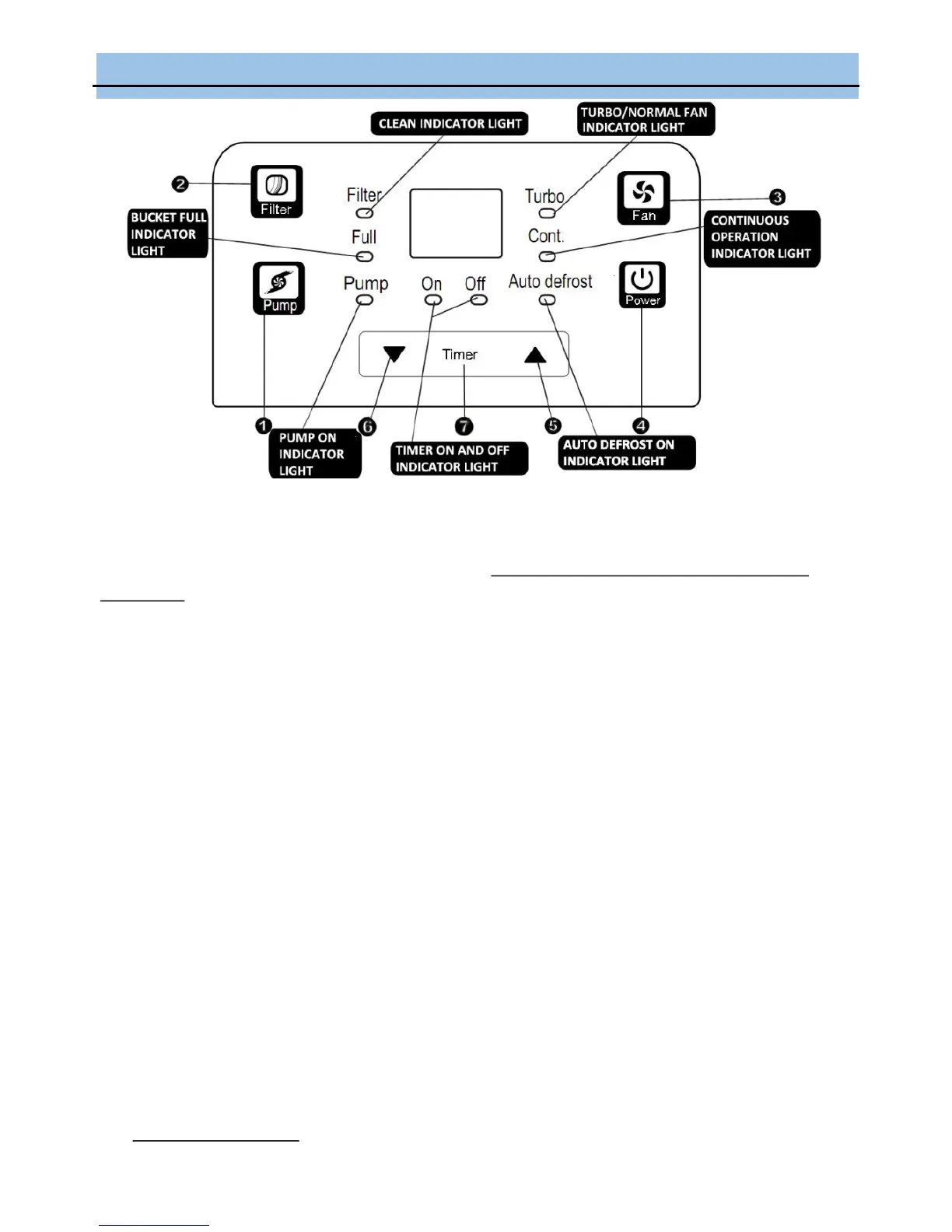

PARTS AND CONTROLS
1. Pump Button
Press to activate the pump operation. The Pump indicator light will illuminate when water pump is in operation.
Note: Make sure the pump drain hose is installed into the unit and the continuous/gravity drain assembly is re-
moved from the unit before the pump operation is activated. The water pump function will start when the drain
bucket is full.
2. Filter Button
The check filter indicator is a reminder to clean the air filter for more efficient operation. The filter light will illuminate
after approximately 250 hours of operation. To reset after cleaning the filter, press the Filter button and the light will
turn off.
3. Fan Button
Press to select either Turbo or Normal fan speed. Press the Fan button to engage Turbo Fan mode. The Turbo
light will illuminate. Press the Fan button again to set the unit to Normal Fan mode. The Turbo light will turn off
when Normal Fan mode is activated.
4. Power Button
Press to turn the dehumidifier on and off
5 - 6. Down/Up Buttons
 Humidity Set Control Buttons
The humidity level can be set within a range of 35%RH(Relative Humidity) to 85%RH in 5% increments. For
lower humidity level, press the Down button and set to a lower RH percentage value. For higher humidity
level, press the Up button and set to a higher RH percentage value.
 Timer Set Control Buttons
If Timer Button is pressed, use the Up and Down buttons to set the Auto Start and Auto Stop time from 0.0
hour to 24 hours.
