3.2: WHYTE SEAT CLAMP ADJUSTMENT
Tools required:
5mm A/F Allen Key
Torque Wrench

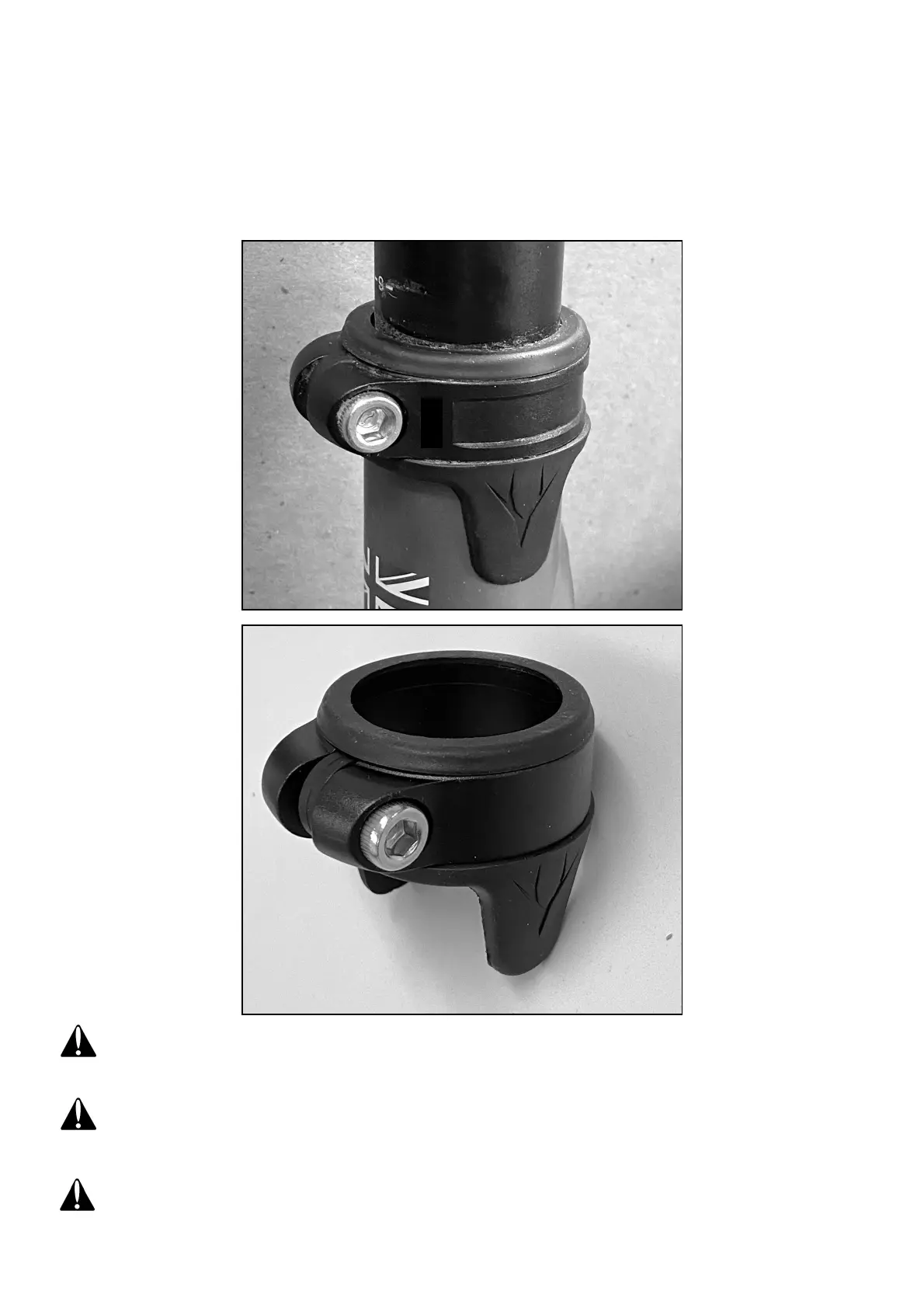

To adjust the Whyte Seat Clamp, using a 5mm Allen key, undo the M5 socket head screw, until the seat post becomes free in the
seat tube of the frame. Adjust the height of the Seat Post in accordance with the relevant seat post manufacturers instructions. To
retighten the Whyte seat clamp, tighten the M5 socket head cap screw in a clockwise direction and torque the M5 socket head cap
screw to the recommended torque setting as set out in Section 10 of this manual.
CAUTION! Do no forcibly pull up or push down on a cable or hydraulically operated dropper seat post without first making
sure that he cable or hose is moving freely inside the whole frame to facilitate the seat post adjustment.
CAUTION! Avoid over-tightening the seat clamp
In particular, “dropper” seat posts that have moving internal components may not work correctly if the seat clamp is over tight-
ened. This could lead to the seat post’s function to be impaired, leading to cause a potential crash or injury.
CAUTION! When adjusting the saddle height you MUST obey the Minimum insertion depth requirement marked on the
Seat Post (7). Also consult the seat-pin manufacturers instructions in conjunction with these notes.
