Page 35 2016 Edition 1
WHYTE Service Manual
Item Description
1 M4 x 16mm long Hex Head Cap Screw
2 Adjustment Clamp
3 Rear Derailleur Hanger, for SRAM Maxle 142mm (Black Colour)
7 Seat Stay, Right Side
8 Seat Stay, Left Side
4 Axle Nut, for SRAM Maxle 142mm (Black Colour)
5 M4 x 16mm long Countersunk Cap Screw
6 Dropout Spacer (8mm wide) Left Side, for SRAM Maxle 142mm (Gunmetal Colour)

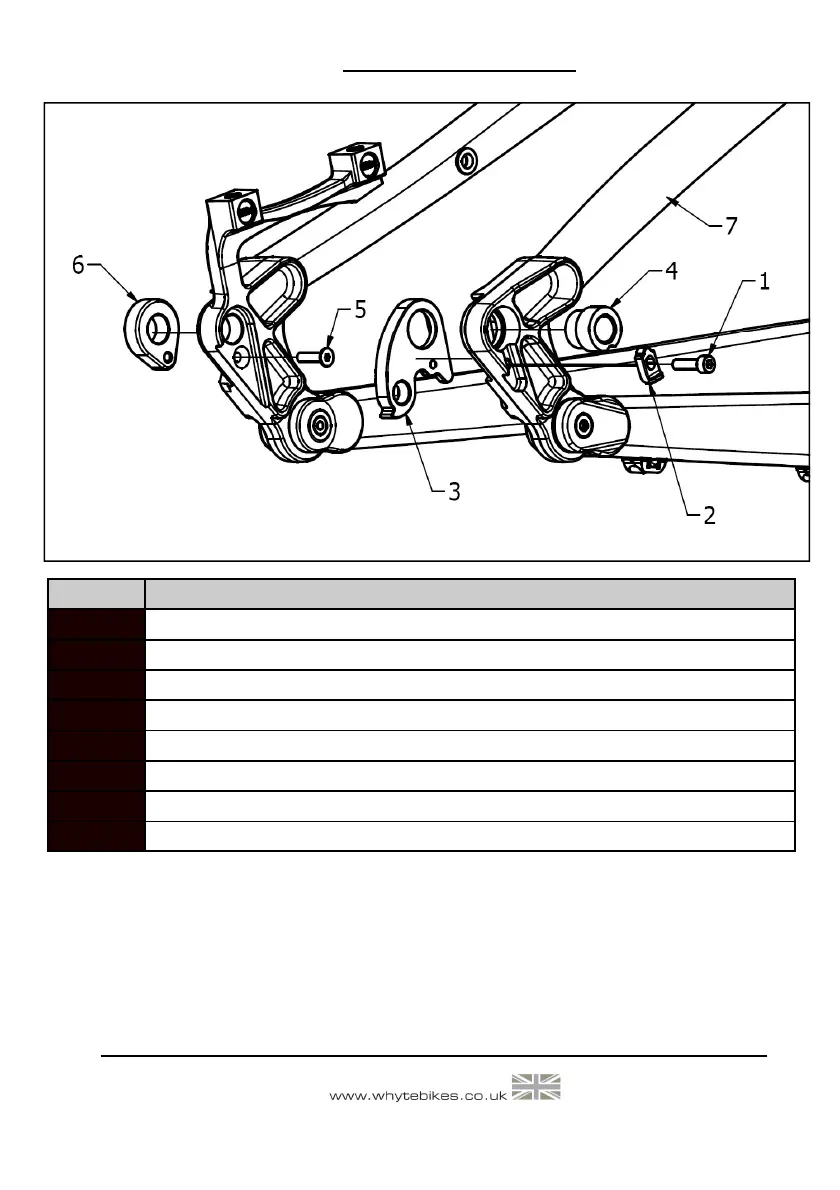

Figure 23: Whyte Dropout Assembly -
For SRAM Maxle 142mm
