4.4.3. Machine lens
The widlaser C500 laser system, comes by default with a 2-inch lens. As an option the laser head supports a 1.5-
inch lens.
The assembling of the lenses is as follows.

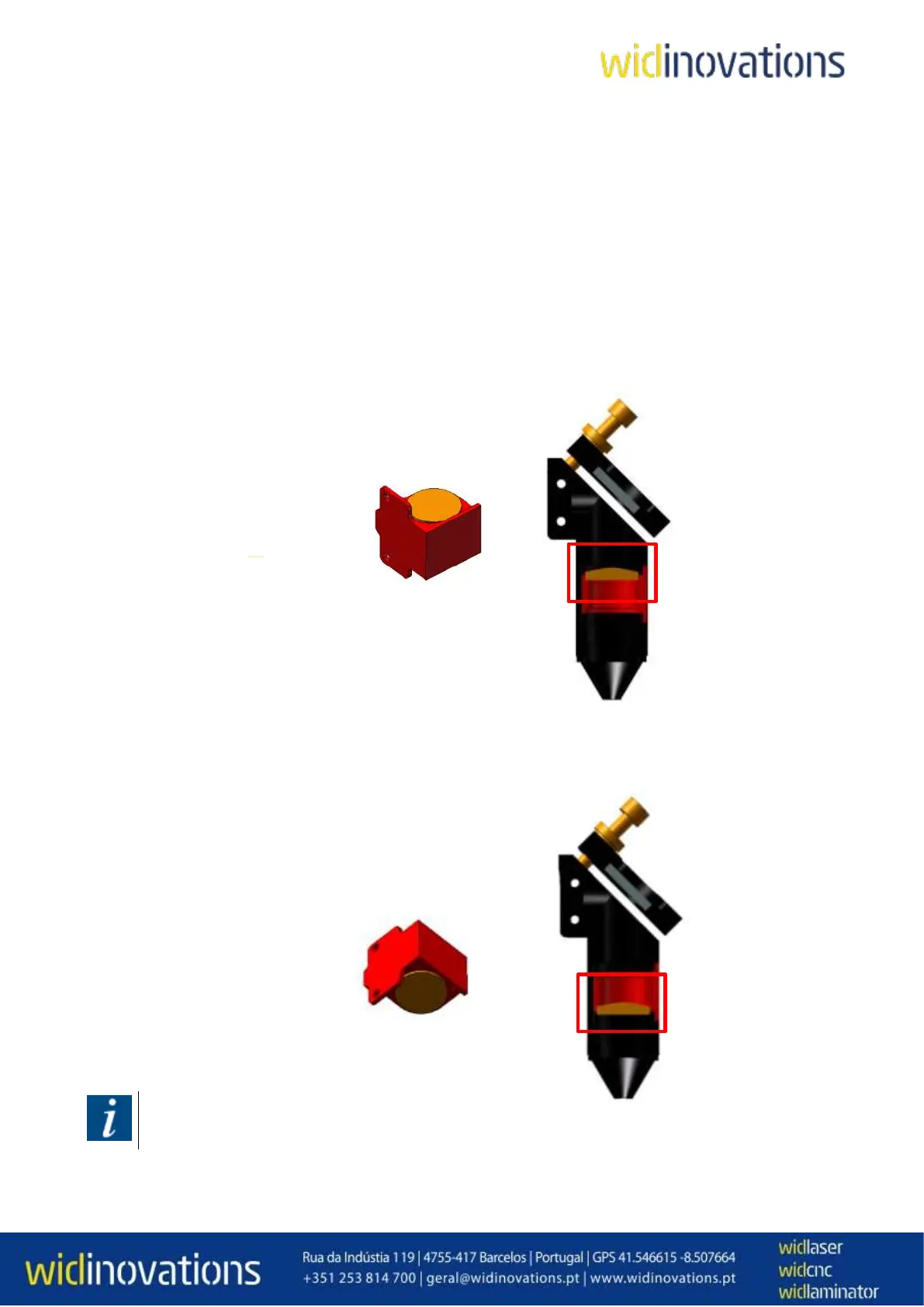

Position and assembly of the 2-inch lens
The 2-inch lens is assembled on the upper part of the lens holding piece.
Position and assembly of the 1.5-inch lens
The 1.5-inch lens is assembled on the lower part of the lens holding piece.
NOTE
The lenses are always assembled with the convex side facing the origin of the laser, (facing the laser head mirror).
