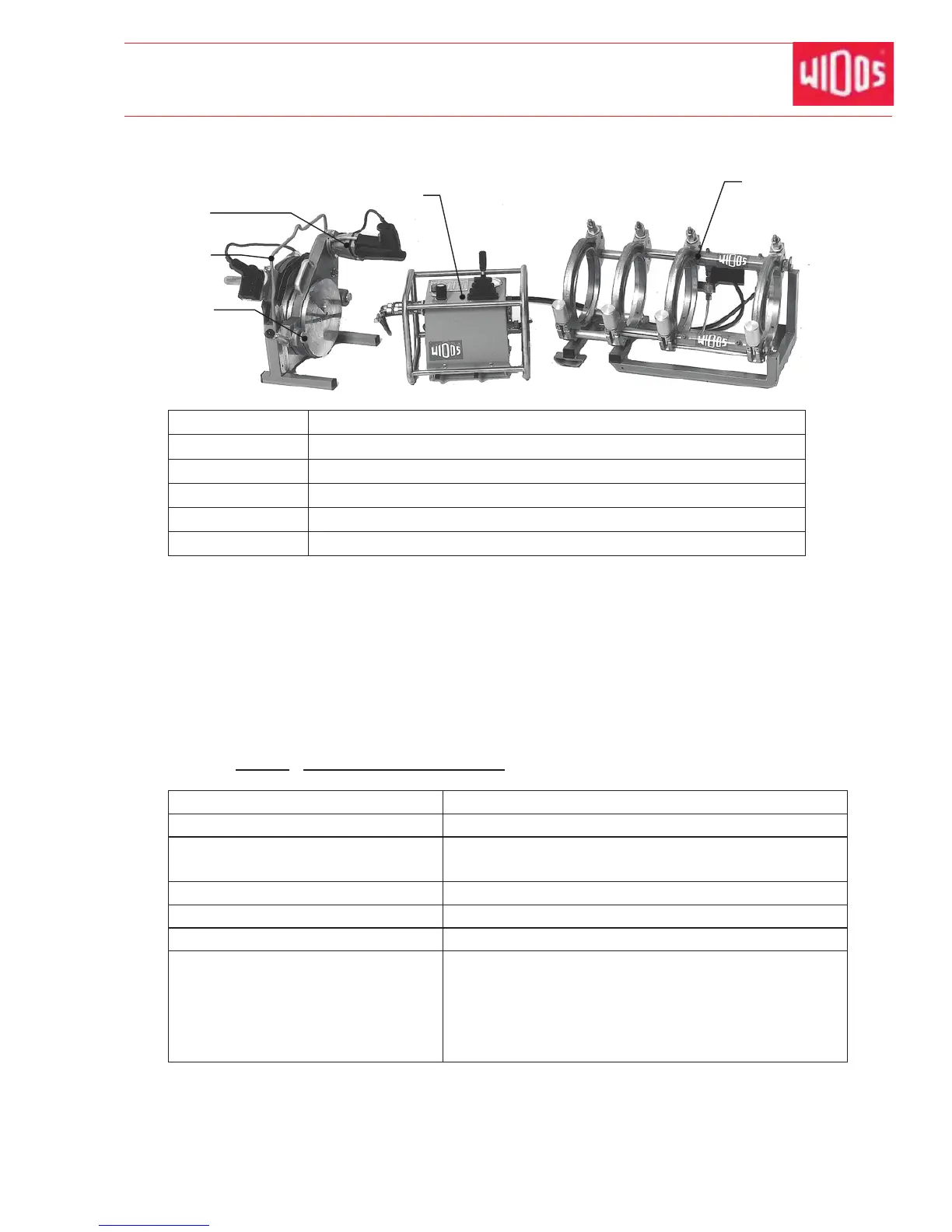

1.4. Machine overview
No. Description
1 Hydraulic aggregate
2
Basic machine with clamping devices
3 Heating element
4 Reception box
5 Planer
1.5. Designation of the product
The product is designated by two type labels.
The type labels are attached at the aggregate and at the basic machine.
They contain the type, the serial number and the year of construction of the machine.
1.5.1. Technical data
1.5.1.1. WIDOS 4400 General data
Material: PE, PP, PVDF,
Pipe diameter range:: outside- = 50 – 160 mm
Packing box (l x w x h):
Weight:
appr. 820 x 680 x 750 mm
appr. 14 kg
Weight (without boxes): appr. 60 kg
Protection: 10 A
Wire cross section: 1,5 mm²
Emissions - Noises exceeding 80 dB (A) may occur; during
planing it is obligatory to wear ear protection!
- When using the named pipe materials and when
welding below 260 °C / 500 °F no toxicant damp
arises.
1
2
3
5
4
