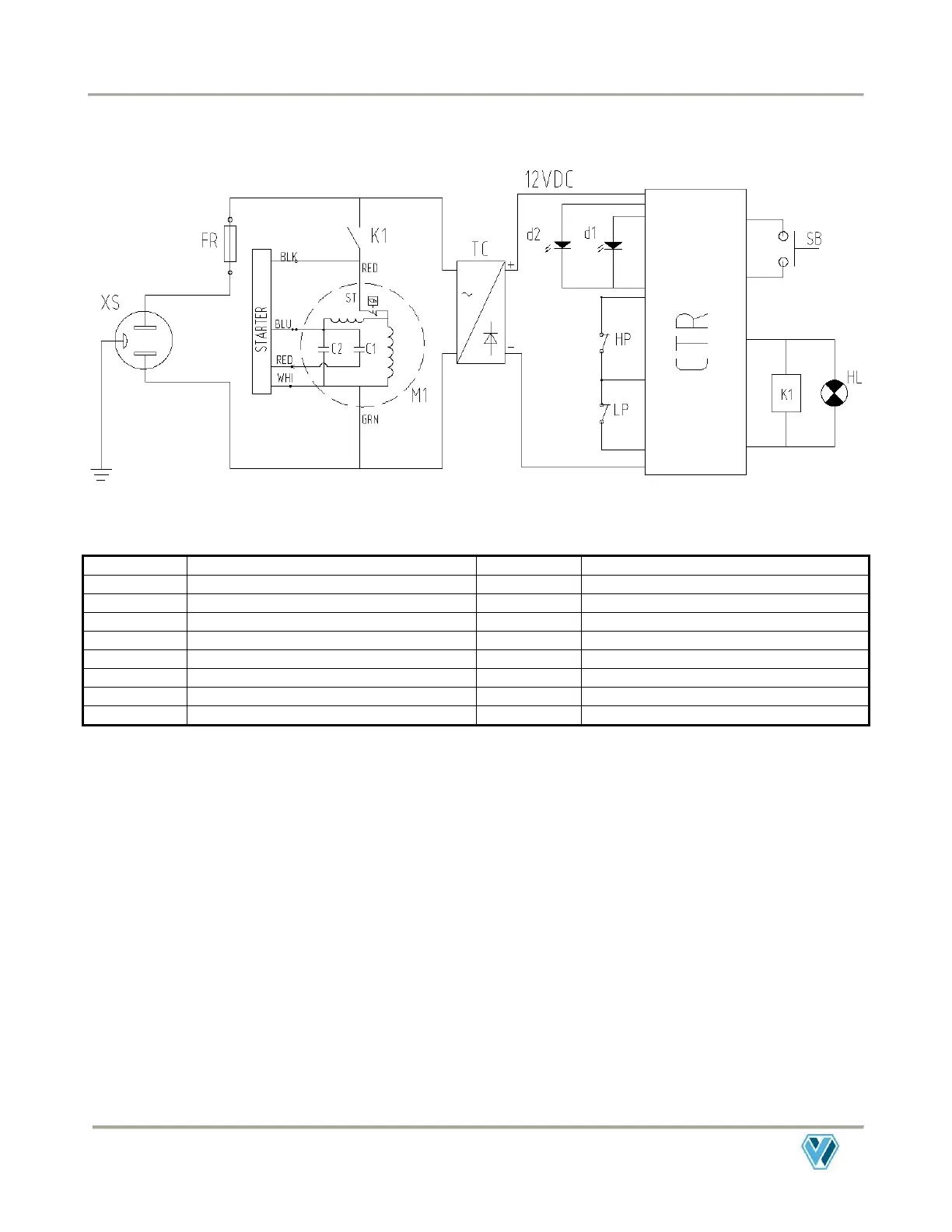

Wiring diagram
XS
Power outlet
HP
Safety pressure switch
STARTER
Electrical starter
LP
Pressure/vacuum switch
FR
Overload protection device
d1
ALARM indicator (red)
M1
Compressor motor (and fan)
d2
COMPLETE indicator (green)
HL
Run indicator (inside button)
SB
Start button
C1
Start capacitor
CTR
Control module
C2
Running capacitor
K1
Relay
ST
Motor thermal protectors
TC
Electronic transformer
