WIKA operating instructions magnetic snap-action contact model 821
13
GB

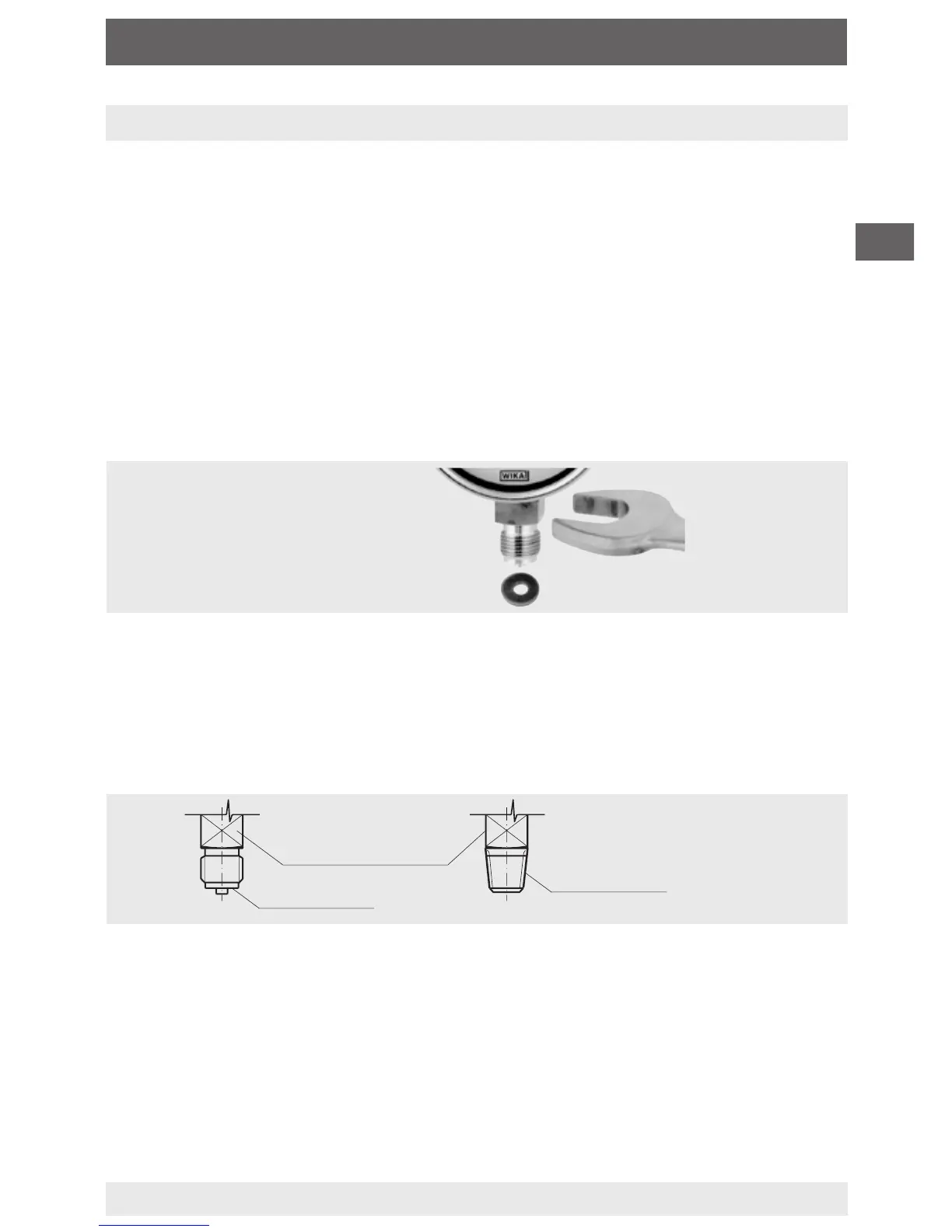

Correct sealing of pressure gauge connections with parallel threads
must be made using suitable sealing rings, sealing washers or WIKA
prole seals. The sealing of tapered threads (e.g. NPT threads) is made
by providing the thread
, with additional sealing material such as, for
example, PTFE tape (EN 837-2).
The torque depends on the seal used. Connecting the gauge using
a clamp socket or a union nut is recommended, so that it is easier to
orientate the gauge correctly. When a blow-out device is tted to a
pressure gauge, it must be protected against being blocked by debris
and dirt.
2003325.03 03/2011 GB/D/F/E
Spanner ats
Sealing in the
thread
Sealing face
Installation with
open-ended spanner
8. Commissioning, operation
8. Commissioning, operation
8.1 Mechanical connection
In accordance with the general technical regulations for pressure
gauges (e.g. EN 837-2 "Selection and installation recommendations for
pressure gauges" and/or EN 13190 "Dial indicating thermometers").
When screwing gauges in, the force required for this must not be
applied through the case or the cable terminal box, but rather through
the spanner ats (using a suitable tool) provided for this purpose on the
square shaft of standard connections.
