5.1 Use of thermowells
CAUTION!
Damage due to incorrect handling
When using thermowells, please ensure that the stem does
not touch the bottom of the thermowell since, due to the
dierent expansion coecients of the materials, the stem
may become buckled at the bottom of the thermowell.
▶
Use the correct insertion length (for the formula for the
calculation of the insertion length, l
1
, see the respective
thermowell data sheet).

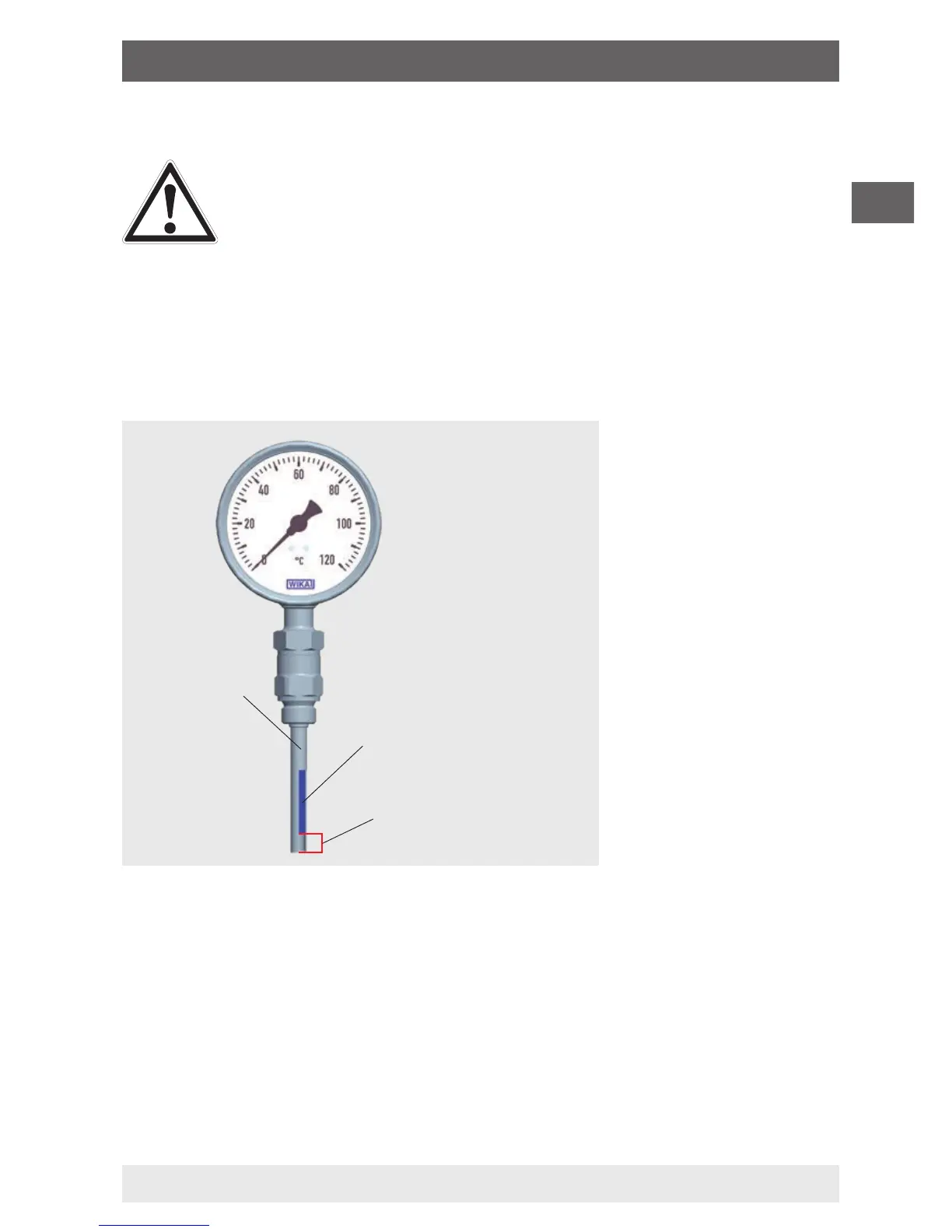

Thermowell
Stem
required safety
clearance
5. Commissioning, operation
