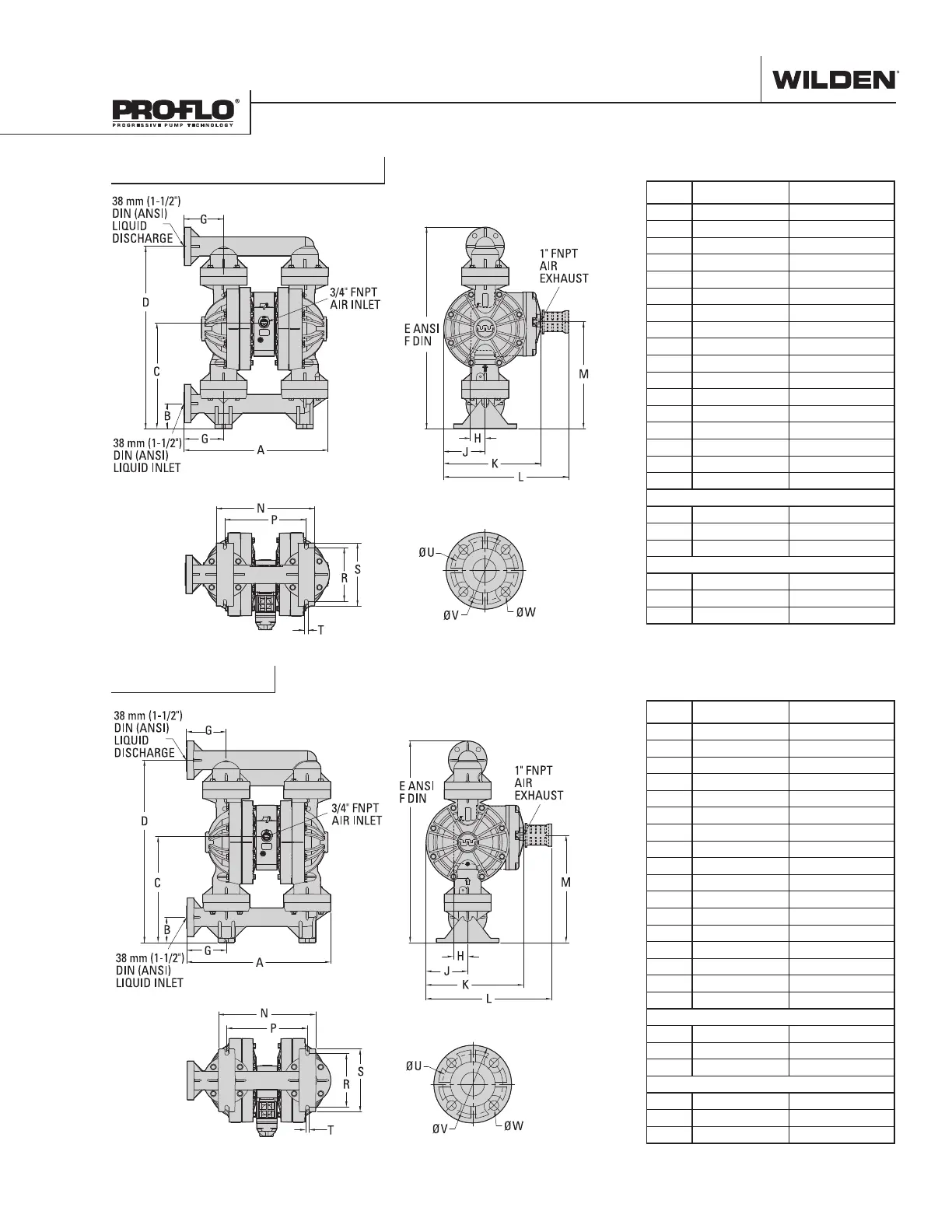

Wilden P400 - PX400 Plastic Pump Dimensions

PX400 Polypropylene
PX400 PVDF
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 476 18.8
B 82 3.2
C 348 13.7
D 602 23.7
E 665 26.2
F 677 26.6
G 131 5.2
H 48 1.9
J 138 5.4
K 320 12.6
L 411 16.2
M 356 14.0
N 324 12.8
P 268 10.6
R 176 6.9
S 208 8.2
T 12 0.5
DIN FLANGE
U 110 DIA. 4.3 DIA.
V 150 DIA. 5.9 DIA.
W 18 DIA. 0.7 DIA.
ANSI FLANGE
U 98 DIA. 3.9 DIA.
V 127 DIA. 5.0 DIA.
W 16 DIA. 0.6 DIA.
LW0326 REV. A
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 471 18.5
B 83 3.2
C 345 13.6
D 596 23.4
E 659 25.9
F 670 26.4
G 130 5.1
H 48 1.9
J 137 5.4
K 320 12.6
L 411 16.2
M 351 13.8
N 319 12.6
P 264 10.4
R 174 6.9
S 205 8.1
T 12 0.5
DIN FLANGE
U 110 DIA. 4.3 DIA.
V 149 DIA. 5.9 DIA.
W 18 DIA. 0.7 DIA.
ANSI FLANGE
U 98 DIA. 3.9 DIA.
V 126 DIA. 5.0 DIA.
W 16 DIA. 0.6 DIA.
LW0327 REV. A
WIL-11240-E-05 5 WILDEN PUMP & ENGINEERING, LLC
DIMENSIONAL DRAWINGS
