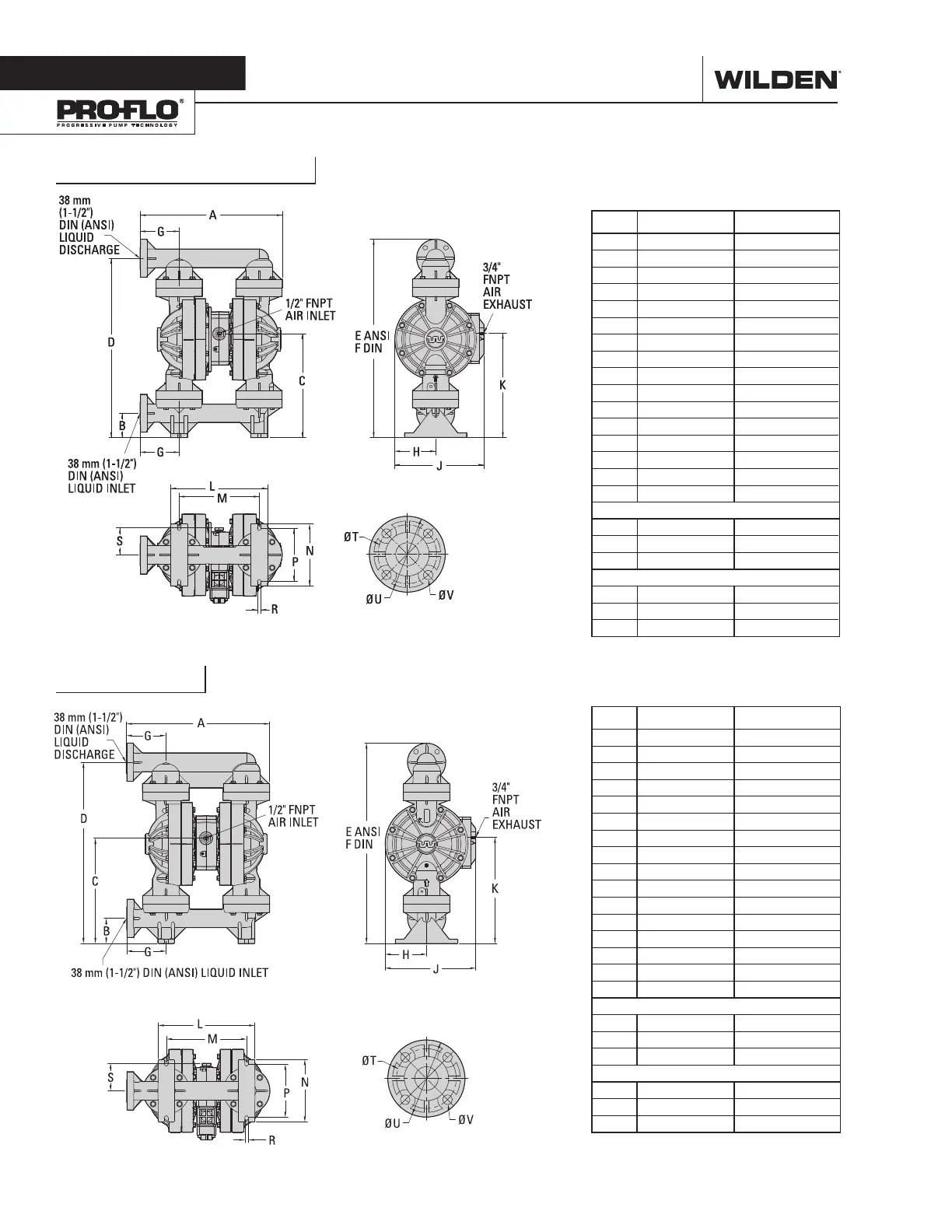

Wilden P400 - Section 4 Dimensional Drawings; P400 Plastic Pump Dimensions

P400 Polypropylene
P400 PVDF
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 476 18.8
B 81 3.2
C 348 13.7
D 602 23.7
E 665 26.2
F 677 26.6
G 131 5.2
H 138 5.4
J 300 11.8
K 351 13.8
L 324 12.8
M 268 10.6
N 208 8.2
P 176 6.9
R 12 0.5
S 91 3.6
DIN FLANGE
T 110 DIA. 4.3 DIA.
U 150 DIA. 5.9 DIA.
V 18 DIA. 0.7 DIA.
ANSI FLANGE
T 98 DIA. 3.9 DIA.
U 127 DIA. 5.0 DIA.
V 16 DIA. 0.6 DIA.
LW0324 REV. A
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 471 18.5
B 83 3.2
C 345 13.6
D 596 23.4
E 659 25.9
F 670 26.4
G 130 5.1
H 137 5.4
J 300 11.8
K 348 13.7
L 319 12.6
M 264 10.4
N 205 8.1
P 174 6.9
R 12 0.5
S 91 3.6
DIN FLANGE
T 110 DIA. 4.3 DIA.
U 149 DIA. 5.9 DIA.
V 18 DIA. 0.7 DIA.
ANSI FLANGE
T 98 DIA. 3.9 DIA.
U 126 DIA. 5.0 DIA.
V 16 DIA. 0.6 DIA.
LW0325 REV. A
WILDEN PUMP & ENGINEERING, LLC 4 WIL-11240-E-05
Section 4
DIMENSIONAL DRAWINGS
