Wilfa TRYSIL Series User Manual

8
English
17
Air outlet selection switch
16
N(1) 2 3
BU BK BN
19
20
21
22
18
N(1) 2 3
BU BK BN
3
9
12
10
14
15
13
11
3
1 2
5
6
2
4
7
8

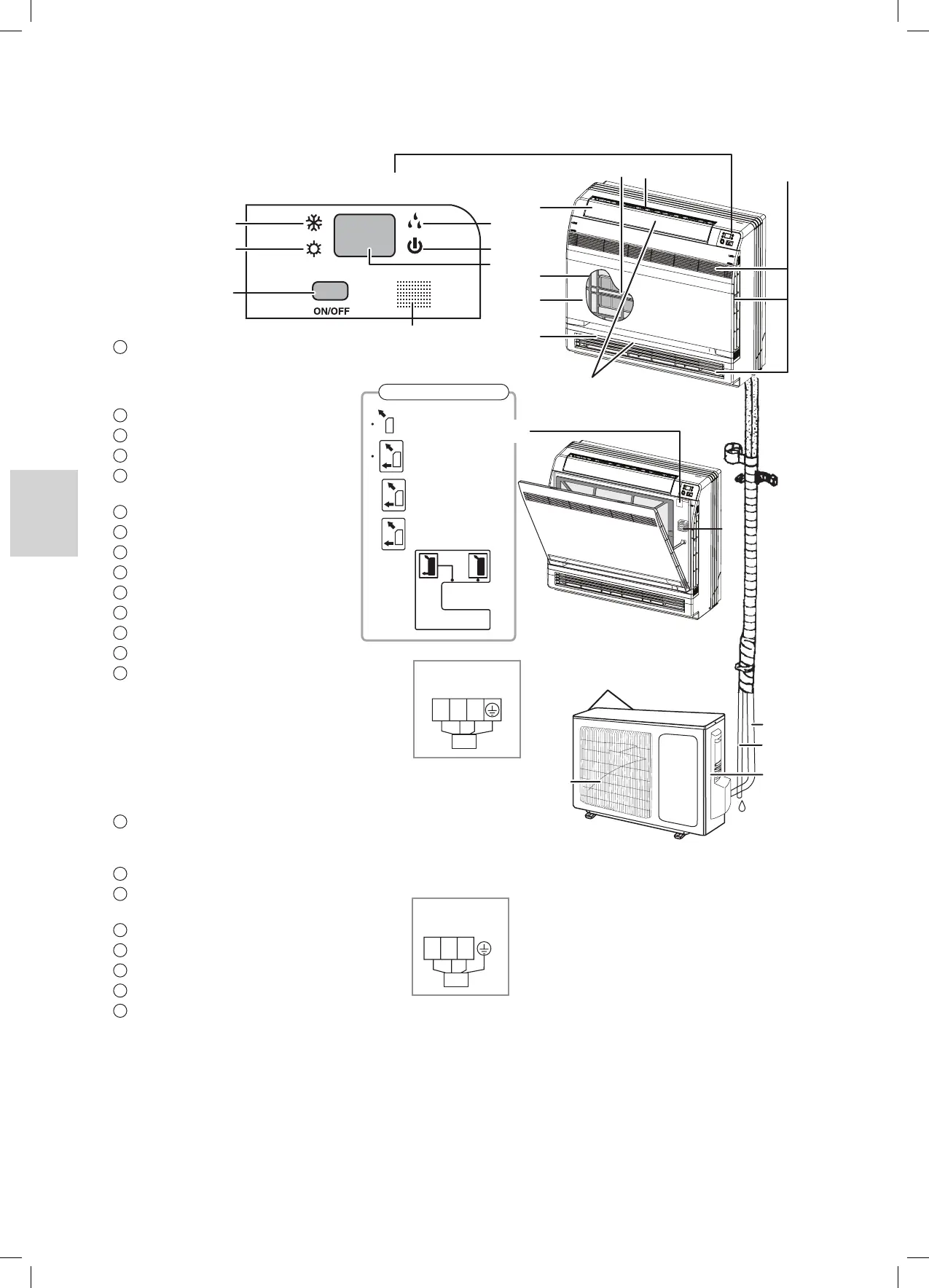

PRODUCT OVERVIEW – INDOOR UNIT AND OUTDOOR UNIT
1
Titanium Apatite Photocatalytic Air-
Purifying Filter
• These filters are attached to the
inside of the air filters
2
Air outlet
3
Display
4
Front panel
5
Louvres – vertical blades (the louvres
are on the inside of the air outlet)
6
Air inlet
7
Air inlet
8
Flap – horizontal blade
9
Cool mode light
10
Heat mode light
11
Dry mode light
12
Run light
13
LED display
14
Indoor unit ON/OFF switch
• Push this switch once to start operation, push
once again to stop
• Cooling model in COOL mode has a
temperature setting of 25 °C and an air flow
rate of AUTO
• Heat pump model in AUTO mode has a
temperature setting of 25 °C and an air flow
rate of AUTO
15
Signal receiver
• This receives signals from the remote control.
When the unit recieves a signal, you will hear a short beep.
16
Air outlet selection switch
17
Room temperature sensor
• This senses the air temperature around the unit
18
Air inlet: (Back and side)
19
Refrigerant tubing and inter-unit cable
20
Drain hose
21
Grounding terminal (inside cover)
22
Air outlet
Note:
• Before opening the front panel, be sure to stop the unit’s operation and turn the circuit breaker OFF.
• Do not touch the metal parts on the inside of the indoor unit as this may result in injury
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly quailified
person in order to avoid an electrical hazard.
• This unit should be installed in accordance with national wiring regulations.
• An all-pole disconnection switch which has contact separtion of at least 3mm on all poles should be connected to the
fixed wiring. For models with a power plug, make sure the plugs are within reach after installation.
Air outlet selection switch
This setting blows air
from the upper outlet only.
This setting automatically
decides a blow pattern
depending on the mode
and conditions.
This setting is recom-
mended
The unit is shipped
from the factory with
this setting
Indoor unit wiring
terminal
Outdoor unit
wiring terminal
Yellow/
green
Yellow/
green
Opening the front panel
Trysil 6500_20_02_A4.indb 8 25.07.17 11.39
