12
PPA R35 FREQUENCY CHANGE INSTRUCTIONS

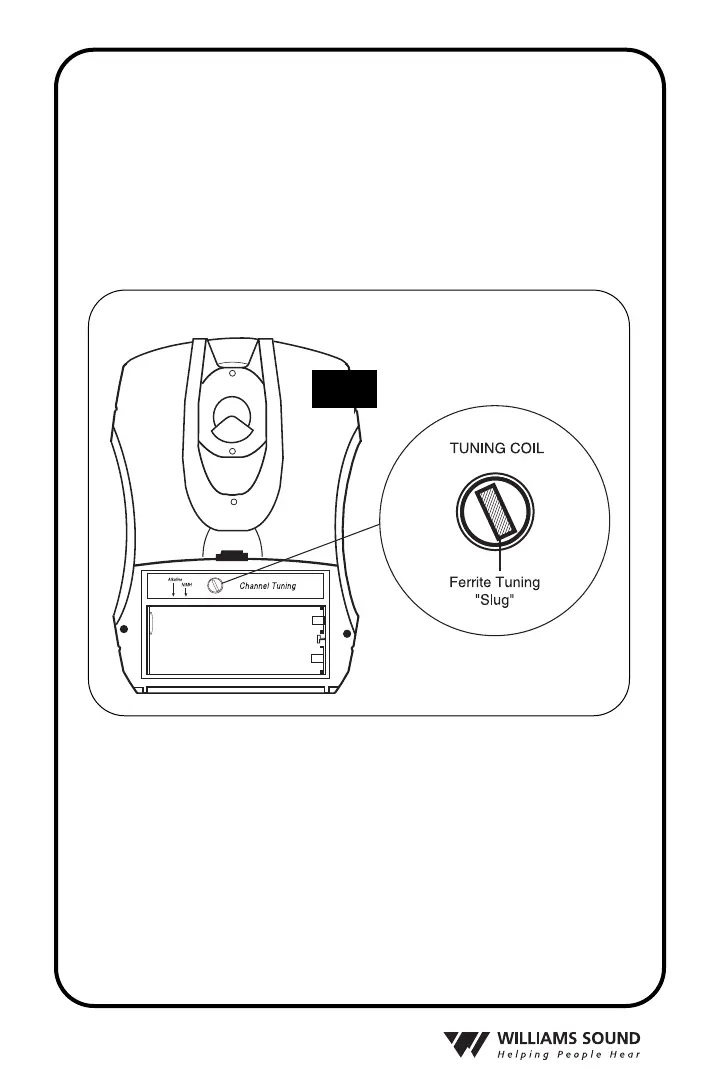

Selecting a frequency for the R35 receiver requires an adjust-
ment to the internal tuning coil. See Figure 4 to locate the coil
to be adjusted. A plastic tuning wrench (PLT 005) will be
needed to adjust the receiver’s tuning coil. Note: By default,
most Williams Sound R35 receivers are set at the factory to
72.9 MHz.
The Receiver must be tuned with a weak and somewhat noisy
signal. If tuned too close to the transmitter, with a strong sig-
nal, the most accurate tuning of the receiver is not possible.
To Change the Frequency to Another Channel:
S
TEP 1: Set the transmitter to the channel desired and remove
the antenna.
STEP 2: Connect an audio source to the transmitter such as a CD
or cassette player or microphone.
R-35
FIG. 4
