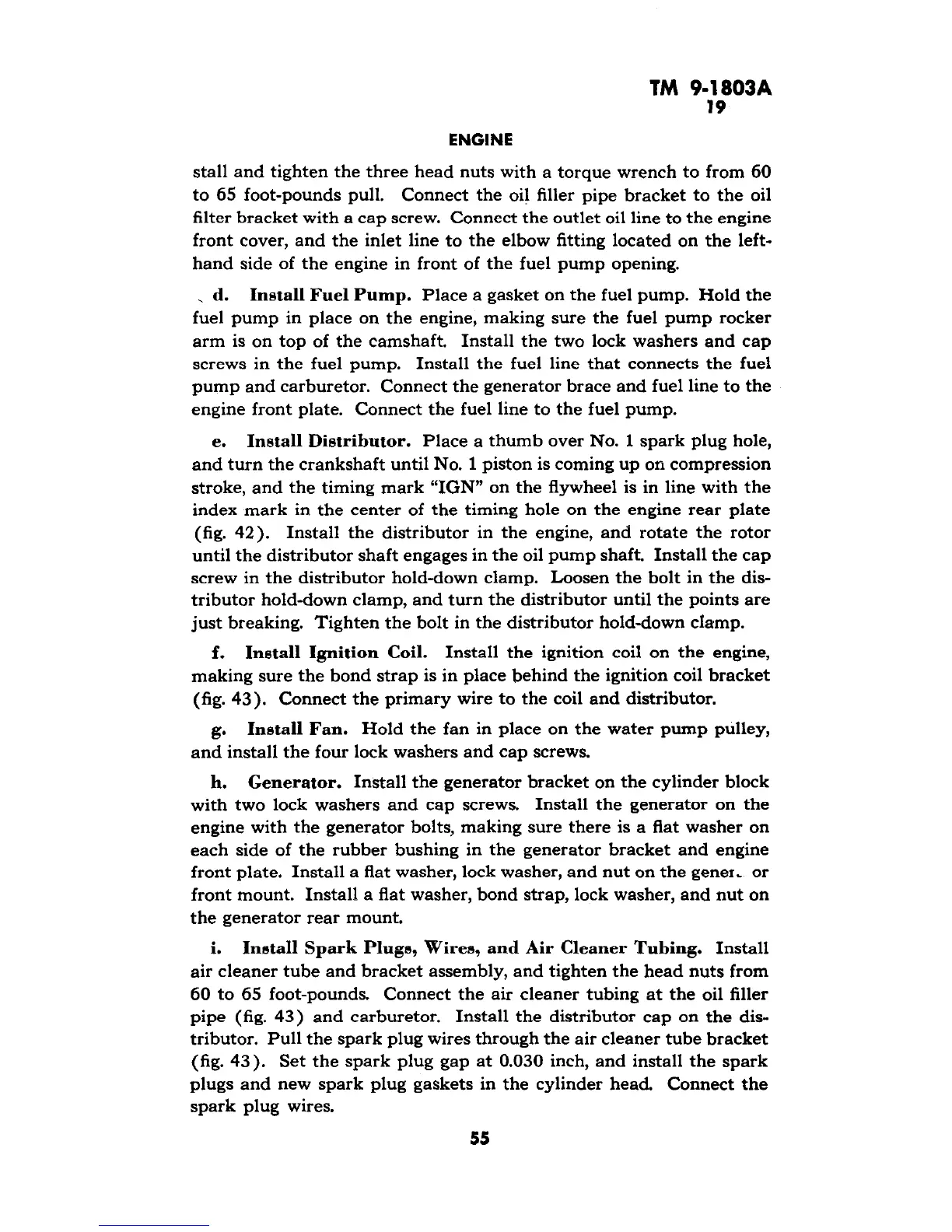

TM 9-l15f03A
stall and tighten the three head nuts with a torque wrench to from 60
to 65 foot-pounds pull. Connect the oil filler pipe bracket to the oil
filter bracket with a cap screw. Connect the outlet oil line to the engine
front cover, and the inlet line to the elbow fitting located on the left-
hand side of the engine in front of the fuel pump opening.
_ d. Install Fuel Pump. Place a gasket on the fuel pump. Hold the
fuel pump in place on the engine, making sure the fuel pump rocker
arm is on top of the camshaft. Install the two lock washers and cap
screws in the fuel pump. Install the fuel line that connects the fuel
pump and carburetor. Connect the generator brace and fuel line to the
engine front plate. Connect the fuel line to the fuel pump.
e. Install Distributor. Place a thumb over No. 1 spark plug hole,
and turn the crankshaft until No. 1 piston is coming up on compression
stroke, and the timing mark “IGN” on the flywheel is in line with the
index mark in the center of the timing hole on the engine rear plate
(fig. 42). Install the distributor in the engine, and rotate the rotor
until the distributor shaft engages in the oil pump shaft. Install the cap
screw in the distributor hold-down clamp. Loosen the bolt in the dis-
tributor hold-down clamp, and turn the distributor until the points are
just breaking. Tighten the bolt in the distributor hold-down clamp.
f. Install Ignition Coil.
Install the ignition coil on the engine,
making sure the bond strap is in place behind the ignition coil bracket
(fig. 43). Connect the primary wire to the coil and distributor.
g. Install Fan. Hold the fan in place on the water pump pulley,
and install the four lock washers and cap screws.
h. Generator. Install the generator bracket on the cylinder block
with two lock washers and cap screws. Install the generator on the
engine with the generator bolts, making sure there is a flat washer on
each side of the rubber bushing in the generator bracket and engine
front plate. Install a flat washer, lock washer, and nut on the gener, or
front mount. Install a flat washer, bond strap, lock washer, and nut on
the generator rear mount.
1. Install Spark Plugs, Wires, and Air Cleaner Tubing. Install
.
air cleaner tube and bracket assembly, and tighten the head nuts from
60 to 65 foot-pounds. Connect the air cleaner tubing at the oil filler
pipe (fig. 43) and carburetor. Install the distributor cap on the dis-
tributor. Pull the spark plug wires through the air cleaner tube bracket
(fig. 43). Set the spark plug gap at 0.030 inch, and install the spark
plugs and new spark plug gaskets in the cylinder head Connect the
spark plug wires.
55
