Installation and operating instructions • Wilo-Control EC-L • Ed.04/2022-09 39

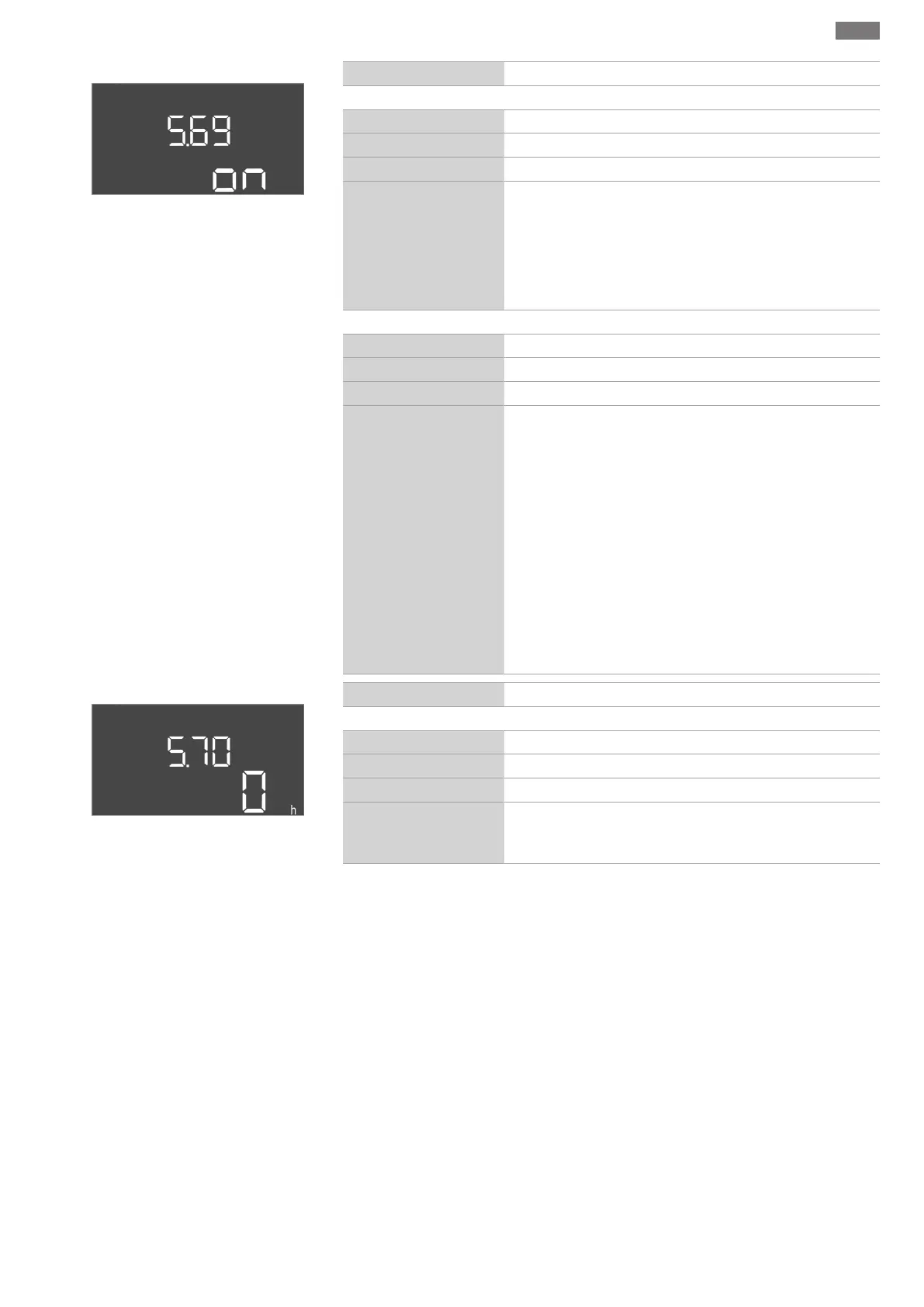

Fig.54: Menu 5.69
Menu no. 5.69
Software version: Up to 2.01.x
Description Motor current monitoring On/Off
Value range on, off
Factory setting on
Explanation The integrated motor current monitoring outputs an error if the
set rated current is exceeded.
• off = motor current monitoring deactivated
• on = motor current monitoring activated
NOTICE!If the switchgear is connected to a single-phase
current, switch off this function!
Software version: From 2.02.x
Description Motor current monitoring On/Off
Value range on, off
Factory setting on
Explanation The integrated motor current monitoring keeps tab on the
minimum and maximum rated current of the pump:
• Monitoring the minimum rated current
If no current is measured when the pump is switched on, the
integrated motor current monitoring outputs an error.
• Monitoring the maximum rated current
The integrated motor current monitoring outputs an error if
the set rated current is exceeded.
This function can be set as follows:
• on = activate monitoring the minimum rated current.
• off = deactivate monitoring the minimum rated current.
• Monitoring the maximum rated current cannot be deactiv-
ated.
Fig.55: Menu 5.70
Menu no. 5.70
Software version: All
Description Max. switching frequency per hour, per pump
Value range 0…60
Factory setting 0
Explanation If the max. number of starts has been exceeded, the collective
fault signal (SSM) is activated. To deactivate the function, set
the value “0”.
