40 Installation and operating instructions • Wilo-Control EC-L • Ed.04/2022-09
8.5.3 Menu 1: Values for switching on
and off

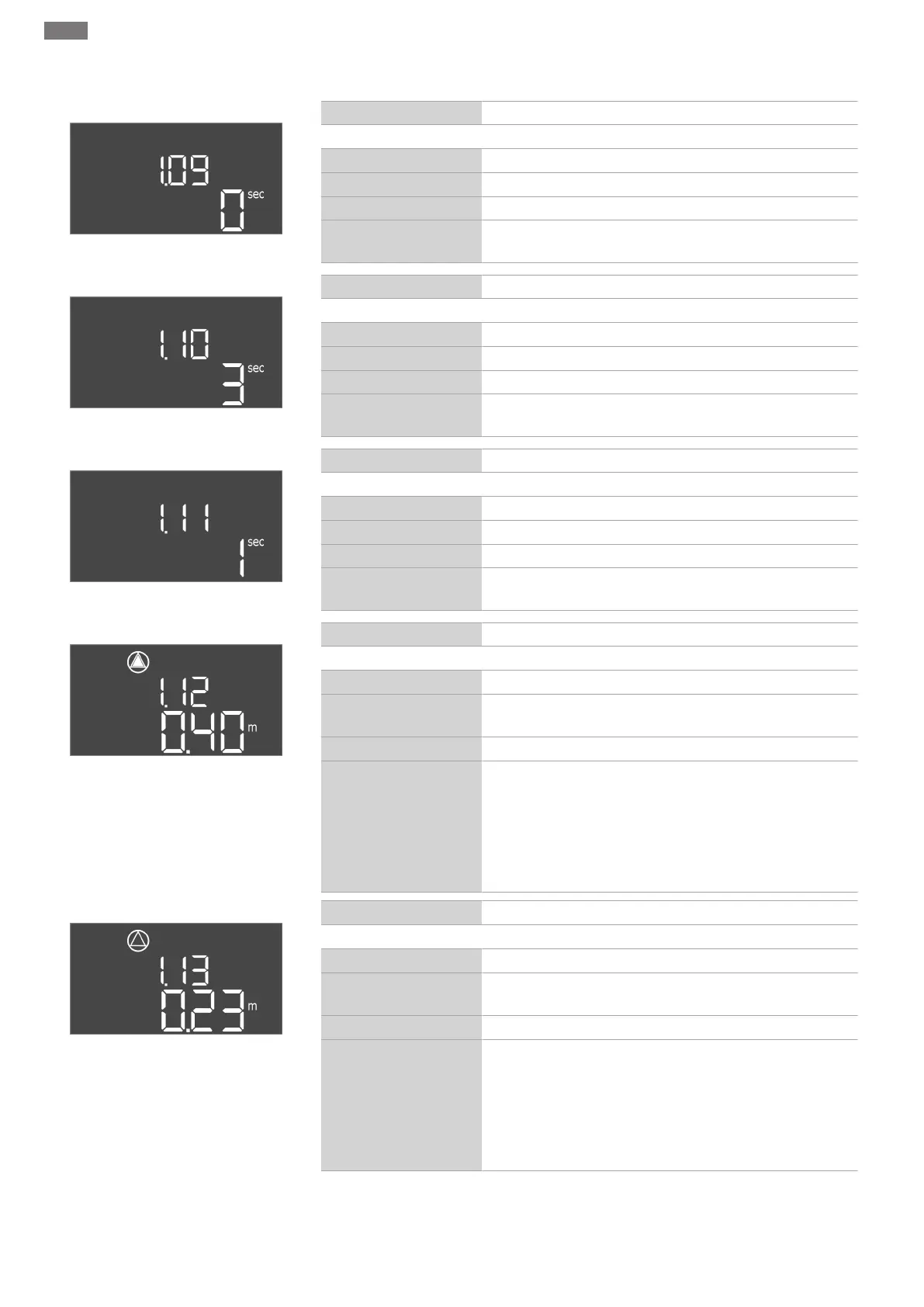

Fig.56: Menu 1.09
Menu no. 1.09
Software version: All
Description Base-load pump switch-off delay
Value range 0…60s
Factory setting 0s
Explanation Time until the base-load pump is switched off after the fill
levels are reached.
Fig.57: Menu 1.10
Menu no. 1.10
Software version: All
Description Peak-load pump activation delay
Value range 0…30s
Factory setting 3s
Explanation Time until the peak-load pump is switched on after the fill
levels are reached.
Fig.58: Menu 1.11
Menu no. 1.11
Software version: All
Description Peak-load pump switch-off delay
Value range 0…30s
Factory setting 1s
Explanation Time until the peak-load pump is switched off after the fill
levels are reached.
Fig.59: Menu 1.12
Menu no. 1.12
Software version: All
Description Base-load pump On level
Value range
0.06...12.5m (NOTICE!The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.40m
Explanation
“Drain” operating mode: Value must be 0.03m higher than the
“Base-load pump Off level” (menu 1.13).
“Fill” operating mode: Value must be 0.03m lower than the
“Base-load pump Off level” (menu 1.13).
NOTICE!The menu item is only visible if the value “Level” or
“Bell” have been set in menu 5.07.
Fig.60: Menu 1.13
Menu no. 1.13
Software version: All
Description Base-load pump Off level
Value range
0.06...12.5m (NOTICE!The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.23m
Explanation
“Drain” operating mode: Value must be 0.03m lower than the
“Base-load pump On” level (menu 1.12).
“Fill” operating mode: Value must be 0.03m higher than the
“Base-load pump On level” (menu 1.12).
NOTICE!The menu item is only visible if the value “Level” or
“Bell” have been set in menu 5.07.
