Installation and operating instructions • Wilo-Control EC-L • Ed.04/2022-09 41

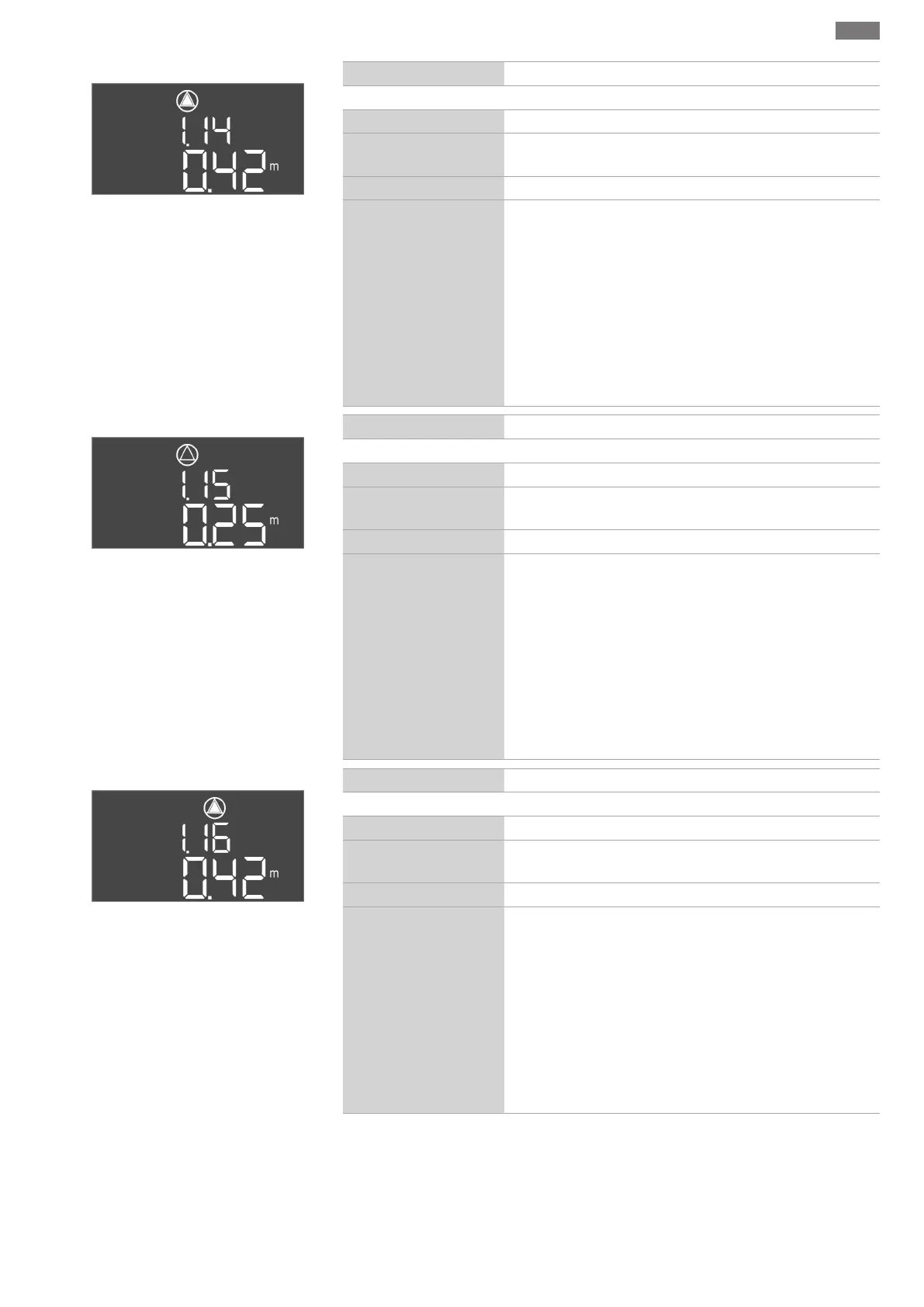

Fig.61: Menu 1.14
Menu no. 1.14
Software version: All
Description Level peak-load pump1 on
Value range
0.06...12.5m (NOTICE!The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.42m
Explanation
“Drain” operating mode: The value must be 0.03m higher than
the “Peak-load pump 1 On” level (menu 1.15). The switch-on
level must be greater than/equal to the switch-on level of the
base-load pump (menu 1.12).
“Fill” operating mode: The value must be 0.03m lower than the
“Peak-load pump 1 Off” level (menu 1.15). The switch-on level
must be lower than/equal to the switch-on level of the base-
load pump (menu 1.12).
NOTICE!The menu item is only visible if the value “Level” or
“Bell” have been set in menu 5.07.
Fig.62: Menu 1.15
Menu no. 1.15
Software version: All
Description Peak-load pump 1 Off level
Value range
0.06...12.5m (NOTICE!The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.25m
Explanation
“Drain” operating mode: The value must be 0.03m lower than
the “Peak-load pump 1 On” level (menu 1.14). The switch-off
level must be greater than/equal to the switch-on level of the
base-load pump (menu 1.13).
“Fill” operating mode: The value must be 0.03m higher than
the “Peak-load pump 1 On” level (menu 1.14). The switch-off
level must be lower than/equal to the switch-off level of the
base-load pump (menu 1.13).
NOTICE!The menu item is only visible if the value “Level” or
“Bell” have been set in menu 5.07.
Fig.63: Menu 1.16
Menu no. 1.16
Software version: All
Description Peak-load pump 2 On level
Value range
0.06...12.5m (NOTICE!The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.42m
Explanation
“Drain” operating mode: The value must be 0.03m higher than
the “Peak-load pump 2 Off” level (menu 1.17). The switch-on
level must be greater than/equal to the switch-on level of the
peak-load pump (menu 1.14).
“Fill” operating mode: The value must be 0.03m lower than the
“Peak-load pump 2 Off” level (menu 1.17). The switch-on level
must be lower than/equal to the switch-on level of the peak-
load pump (menu 1.14).
NOTICE!The menu item is only visible if the value “Level” or
“Bell” have been set in menu 5.07.
