Installation and operating instructions Wilo-VeroLine-IP-E, VeroTwin-DP-E 77
Terminals

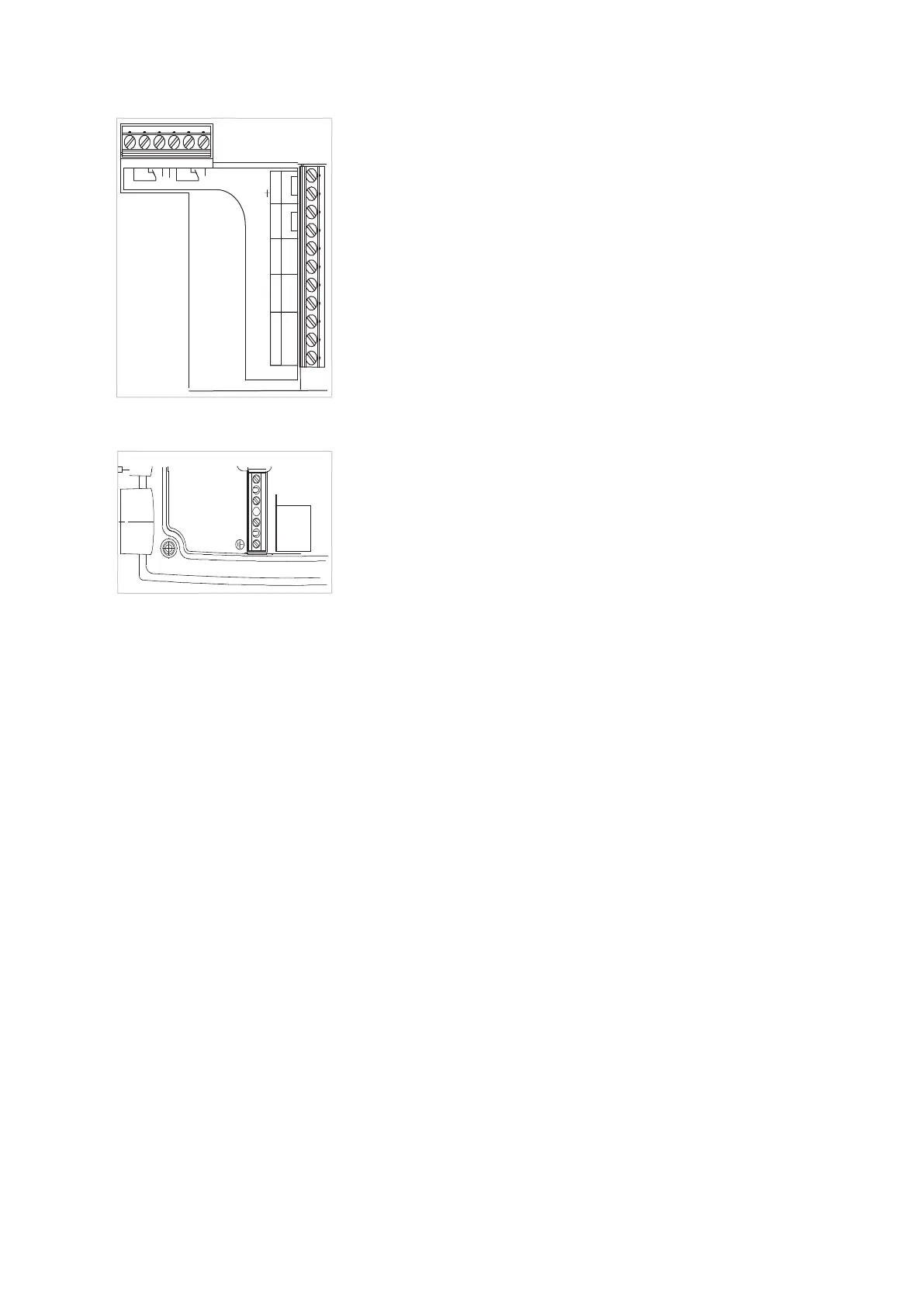

• Control terminal (Fig. 23)
(See following table for assignment)
• Power terminals (mains connection terminals) (Fig. 24)
(See following table for assignment)
Fig. 23: Control terminals
AUX
SSM SBM
Ext. off MP
DD
G
GND
10V/20mA
LH
IN2
GND
IN1 +24V
Fig. 24: Power terminals (mains connection
terminals)
L1 L2 L3
