40 WILO SE 09/2013
English
(Pos. b) The sensor, external setpoint and
[aux.]/[ext.off] input cable must be necessarily
screened and must be inserted into the gland M12
or M16. The cable glands of the converter are
adapted to the assembly with a shielding braid (see
below).
• The electric characteristics (frequency, voltage,
nominal current) of the motor-converter are men-
tioned on the pump identification sticker (item 19).
Check that the motor-converter complies with the
mains supply used.
• The electric protection of the motor is integrated
into the converter. The parameters take into
account the characteristics of the pump and must
ensure its protection and the one of the motor.
• In case of impedance between earth and neutral
point, install a protection before motor-converter.
• Provide a fuse-disconnecting switch (type gF) to
protect the mains installation (Fig. 1, 2, item 11).
NOTE: If you have to install a differential circuit-
breaker for users protection, it must have a delay
effect. Adjust it according to the current men-
tioned on the pump identification sticker
(item 19).

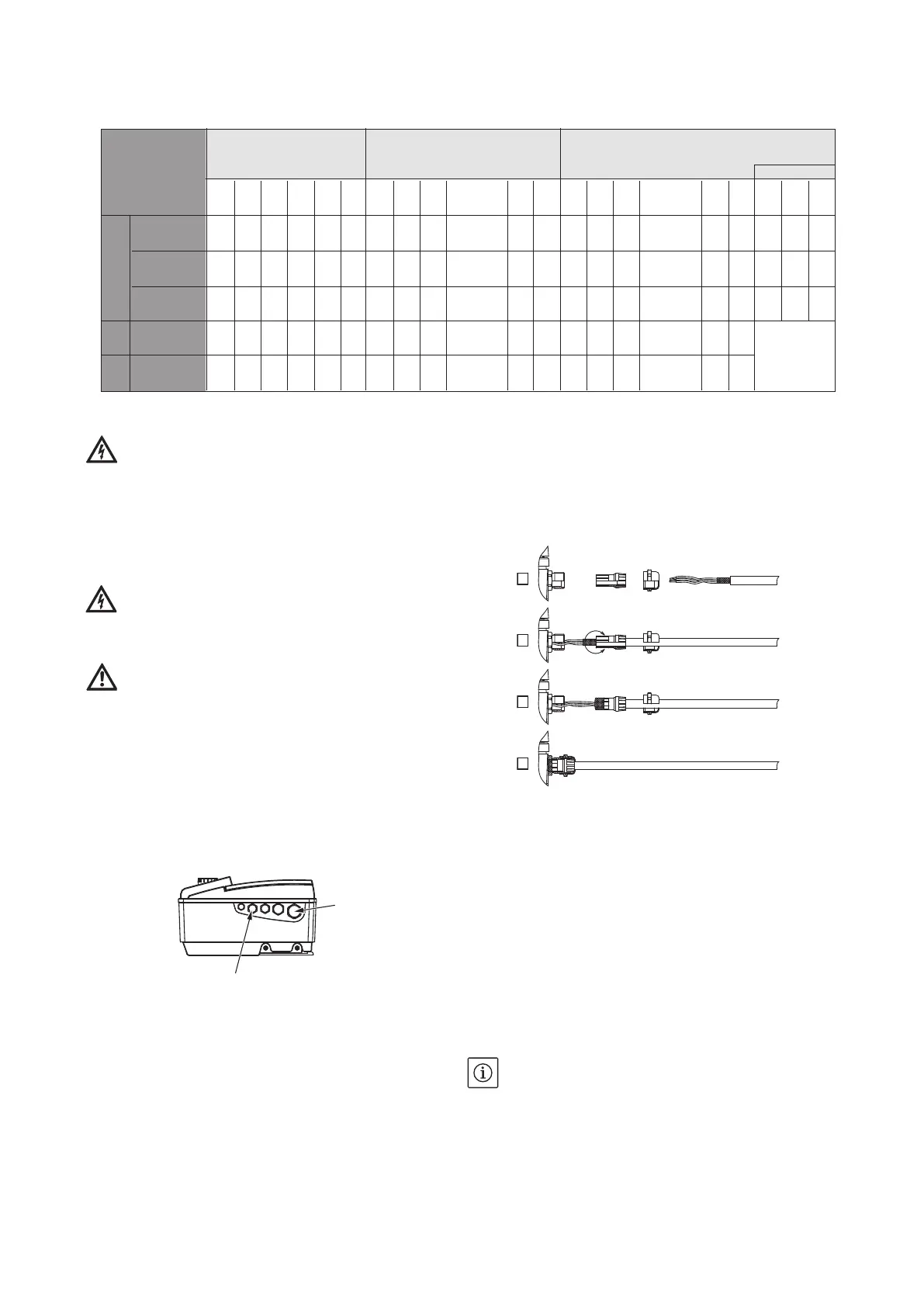

Principal dimensions and connections (Fig. 3)
7.4 Electrical connections
DANGER! Danger of death!
Inadequate installation and electrical connections
can be life-threatening.
• Electrical connections shall only be made by
approved specialised electricians and in compliance
with the applicable regulations.
• Accident prevention regulations must be observed.
• Do not forget to connect to earth.
CAUTION! Danger of mains overload!
An inadequate mains design can lead to system
failures and can lead to cable fires due to mains
overload.
CAUTION! Danger of material damage!
A connection error would damage the converter.
The power cable shall never touch the pipe or the
pump ; make sure that it is protected against any
humidity.
(Pos. a) The power cable (3 phases + earth) must be
fed through the cable gland M25. Nonallocated
cable glands must remain sealed with the plugs
provided by the manufacturer.
Pump
type
Version PN16
Version PN25
Victaulic
B C D F G ØT A E F S ØU R A E F ØS ØU R E F S
6”
400 212 180 100 50 20 12 157 204 50 75 M10
G1”
1/4
172 250 75 100 18
DN
32
210 50
Ø
42,4
800 252 215 130 80 20 12 187 250 80 100 M12
G1”
1/2
187 280 80 110 18
DN
40
261 80
Ø
60,3
1600/6 252 215 130 90 20 12 187 250 90 100 M10 G2” 187 300 90 125 18
DN
50
261 90
Ø
60,3
8” 2200 270 215 130 90 5 14 190 300 90
ØS1 121
ØS2 125
19
DN
50
190 300 90
ØS1 121
ØS2 125
19
DN
50
-
10”
7000
9500
350 280 199 140 45 12 264 380 140 190 19
DN
100
264 380 140 190 23
DN
100
