Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Hours: 7am to 6 pm MST.
Installation Instructions for the Following Wilson Electronics Signal Boosters:
Mobile Wireless Dual-Band Signal Booster
Model # 271201, Part # 801201, 801212, 801215
FCC ID: PWO271201SA IC: 4726A-271201SA
Mobile Wireless Dual-Band Signal Booster
Model # 271701, Part # 801701, 801501, 801601, 801712
NOT FOR SALE IN USA / CANADA
Inside this Package
Warning: In a wire-
less installation, do
not plug the Signal
Booster directly into
the cell phone and/
or data card using an
antenna adapter. It
will damage the Signal
Booster, cell phone
and/or data card.
!
!
!
!
Outside
Antenna
Inside
Antenna
Signal
Booster
DC Power
Supply
Cell Phone
PDA
Notebook

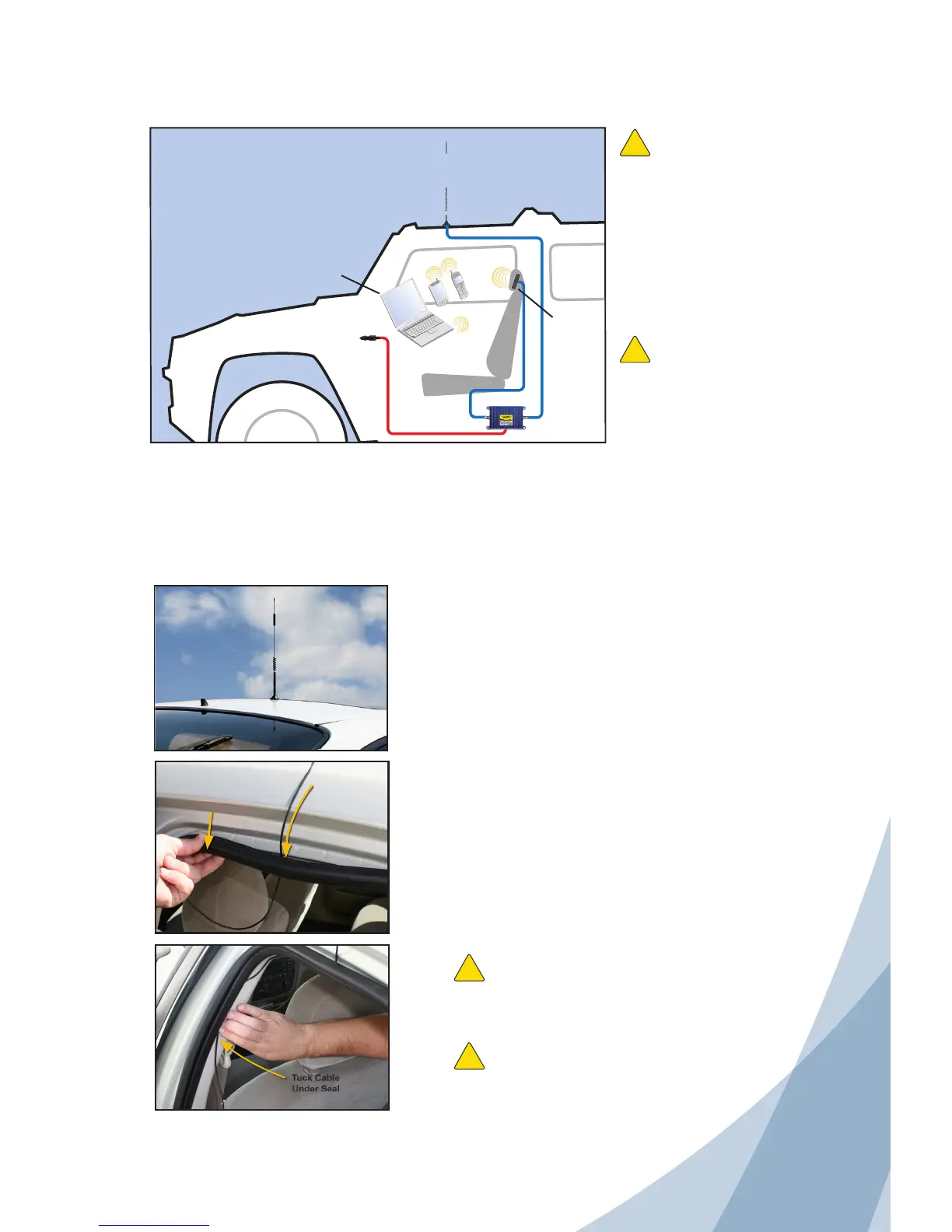

Installation Diagram
Quick Installation Overview
Installing a Wilson Electronics Outside Antenna
To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches
away from any other antennas or windows.
Follow the specific antenna installation instructions included with the outside antenna.
Magnet - Mount
Antenna Shown
Part #301103
Carefully
Pull Down
Door Seal
Run Cable
Under Seal
Tuck Cable
Under Seal
The outside antenna must be installed
vertically. Signal performance will be
degraded if the antenna is not vertical.
The antenna cable may run through the
door to the Signal Booster.
For a more professional looking installation,
run the antenna cable under the door seal.
The antenna cable is small enough to easily
tuck under the door seal or plastic molding.
Carefully pull down the door seal. Run the
cable through the seal and push the seal
back into place. This prevents constant
wear and tear on the cable as the door
opens and closes.
Warning: Do not plug
in the DC power supply
until the outside and
inside antenna cables
are attached to the
Signal Booster.
Warning: The outside antenna must have
a separation of at least 20 inches from all
persons during normal operation.
Warning: Do not use any type of glass-
mount antenna with this Signal Booster.
The outside and inside antennas must
be shielded from each other to prevent
oscillation (feedback).
