SIGNALBOOST™ DT Installation Instructions
9
Installing the Amplifi er Unit
Desk or Table Mount

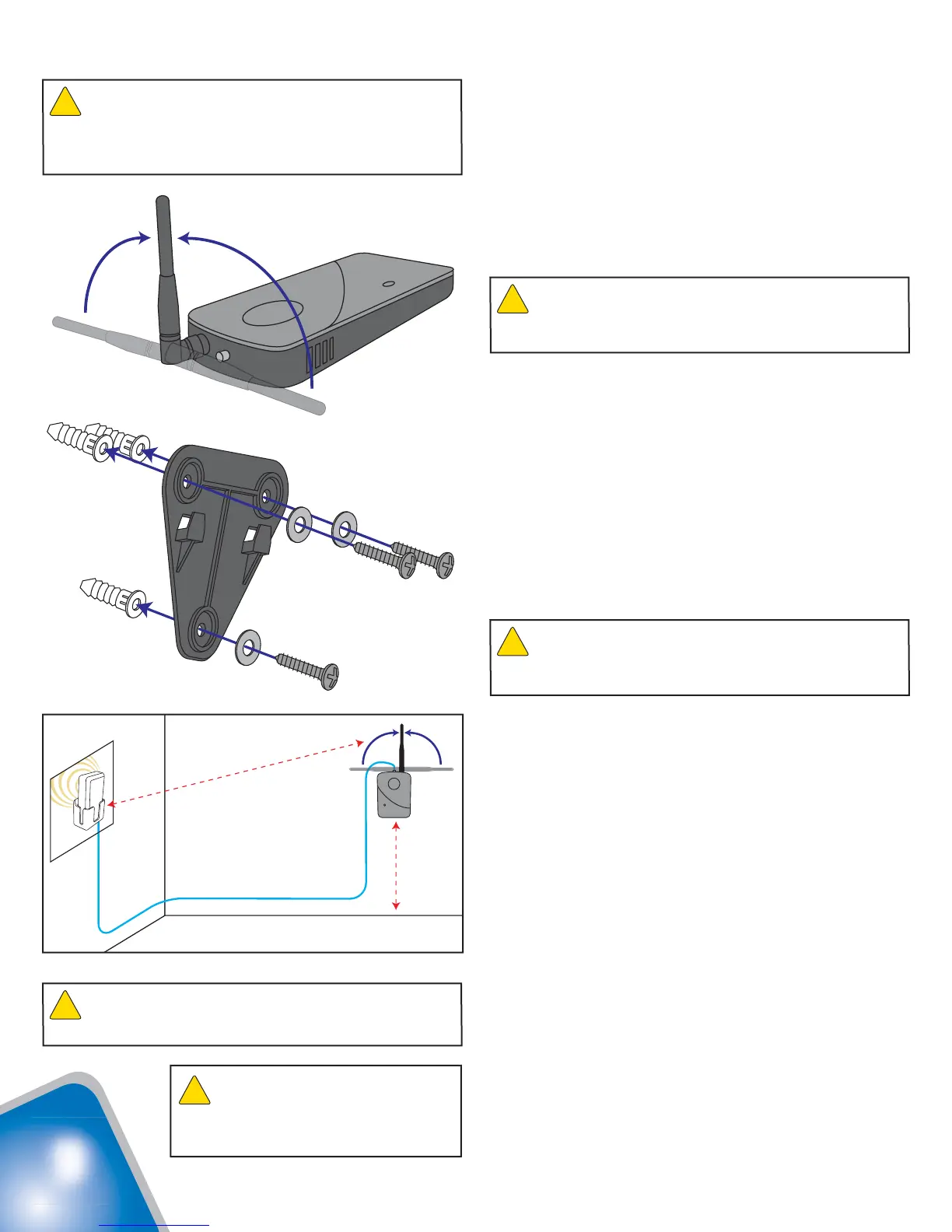

1. Attach the on-board antenna by screwing it
onto the threaded connector on the amplifi er.
Position the antenna vertically by rotating it on
its base (see Figure 8). Operating the amplifi er
with the on-board antenna in a position other
than vertical will reduce its performance.
2. Place the amplifi er on a desk, table or similar
surface where you have routed the coax cable.
3. Attach the cable to the connector on the
amplifi er.
Wall Mount
1. Attach the on-board antenna by screwing it
onto the threaded connector on the amplifi er
(see Figure 8).
2. Position the triangular wall-mount bracket at the
desired spot on the wall, at least 5 feet up from
the fl oor and away from any other amplifi er or
antenna.
3. Using the bracket as a template, mark the
locations for the screws using a pencil.
4. Drill the holes, using a 3/16-inch drill bit, and
insert the screw anchors. Note: if you are not
using the wall-mount hardware in Packet B
for the cradle antenna, you can use it for the
amplifi er. Otherwise, you will need to purchase
three screws, washers and anchors.
5. Align the triangular bracket with the screw
anchors (Figure 9) and attach it with screws
and washers. Tighten the screws with a
Phillips-head screwdriver.
6. Slide the amplifi er onto the bracket. Position
the antenna vertically for best performance
(see Figure 10). Operating the amplifi er with
the on-board antenna in a position other than
vertical will reduce its performance.
7. Attach the cable to the connector on the
amplifi er.
Warning: The on-board antenna must have a separation
distance from all persons that is at least 8 inches.
!
Warning: Connecting the amplifi er
directly to the cell phone with use of an
adapter will damage the cell phone.
!
Figure 9
Min. 20 feet
Min. 5 feet
Figure 10
Figure 8
Warning: RF Safety: The amplifi er must be placed so that
its on-board antenna has a separation distance of at least 8
inches from all persons.
!
Warning: The amplifi er unit is designed for use in an
indoor, temperature-controlled environment. It is not intended
for use in attics or similar locations subject to temperatures in
excess of 120 degrees Fahrenheit.
!
Warning: RF Safety: The amplifi er must be placed so that
its on-board antenna has a separation distance of at least 8
inches from all persons.
!
