SIGNALBOOST™ DT Installation Instructions
3
How it Works
Your new Wilson SIGNALBOOST™ DT amplifi er system has been carefully engineered to enhance the
performance of your cell phone or cellular data card. Its advanced technology is designed to signifi cantly
improve voice and data signal quality and reduce disconnects and drop-outs.
The SIGNALBOOST™ DT works with two antennas (included). The on-board antenna communicates
with your cell phone or laptop data card, and the cradle antenna communicates with the cell tower. the
cradle antenna is designed for installation inside on a window or outside on a wall or a pole, depending on
your preferred confi guration.
The cradle antenna collects the the outside signal and sends it through a cable to the SIGNALBOOST™
DT. The signal is then boosted and sent to the on-board antenna, which communicates with your cell
phone or data card. When the cell phone or data card transmits, the on-board antenna picks up the
signal and sends it to the amplifi er where it is boosted and sent through the cradle antenna to the cell
tower.
Note: While the SIGNALBOOST™ DT is designed to give you reliable signal improvement
with the included antennas, Wilson offers a variety of optional antennas and accessories that
enable you to customize your SIGNALBOOST™ DT to your specifi c needs.
Visit www.wilsonelectronics.com for details.

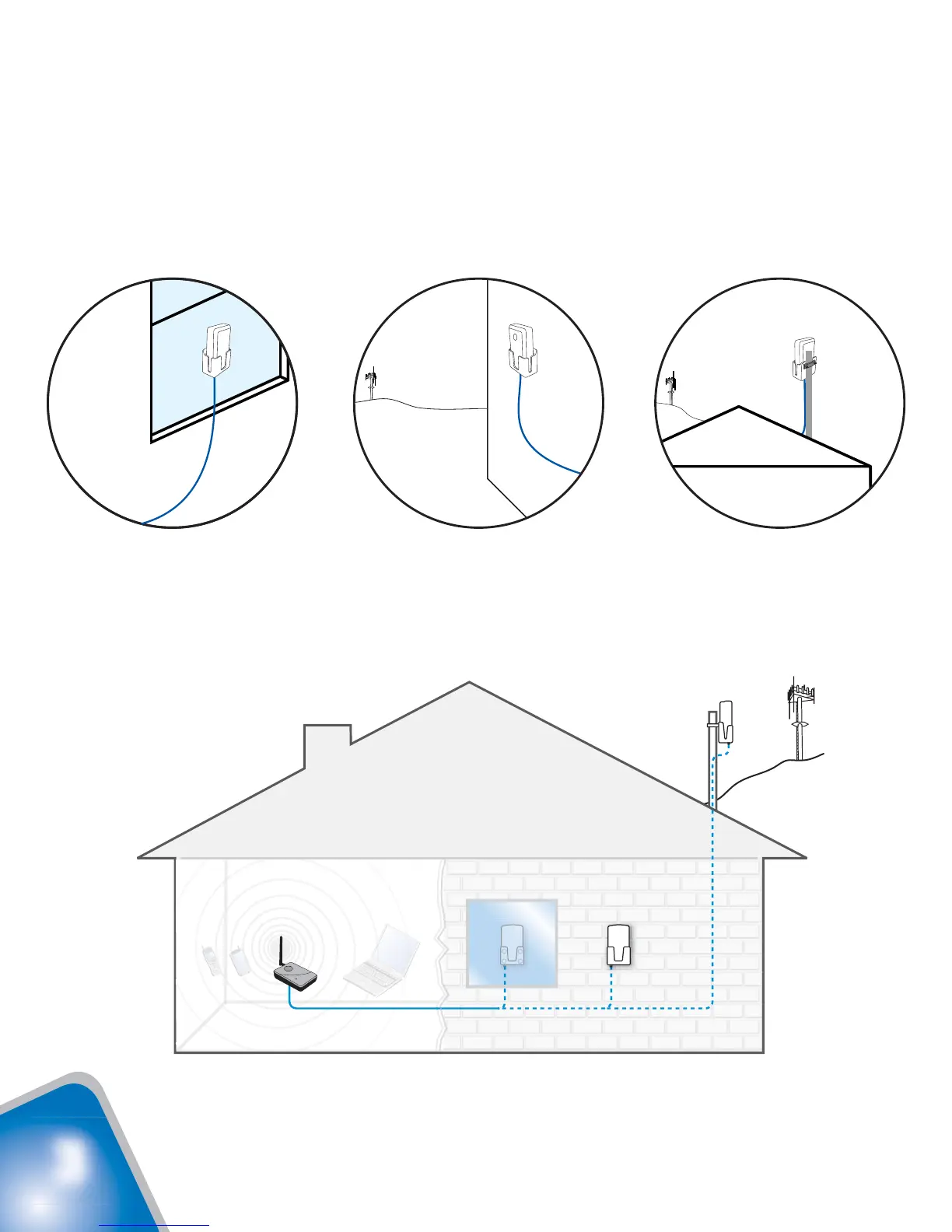

Window Installation (A) Wall Installation (B) Pole Installation (C)
Antenna
Option A (indoor)
Cradle Window Mount
Antenna
Option B (outdoor)
Cradle Wall Mount
Antenna
Option C (outdoor)
Cradle Pole Mount
Wireless
Amplifier
Area Needing
Increased
Signal
Cell
Tower
Antenna
and
Cradle
Cell
Tower
Antenna
and
Cradle
Antenna
and
Cradle
Cell
Tower
