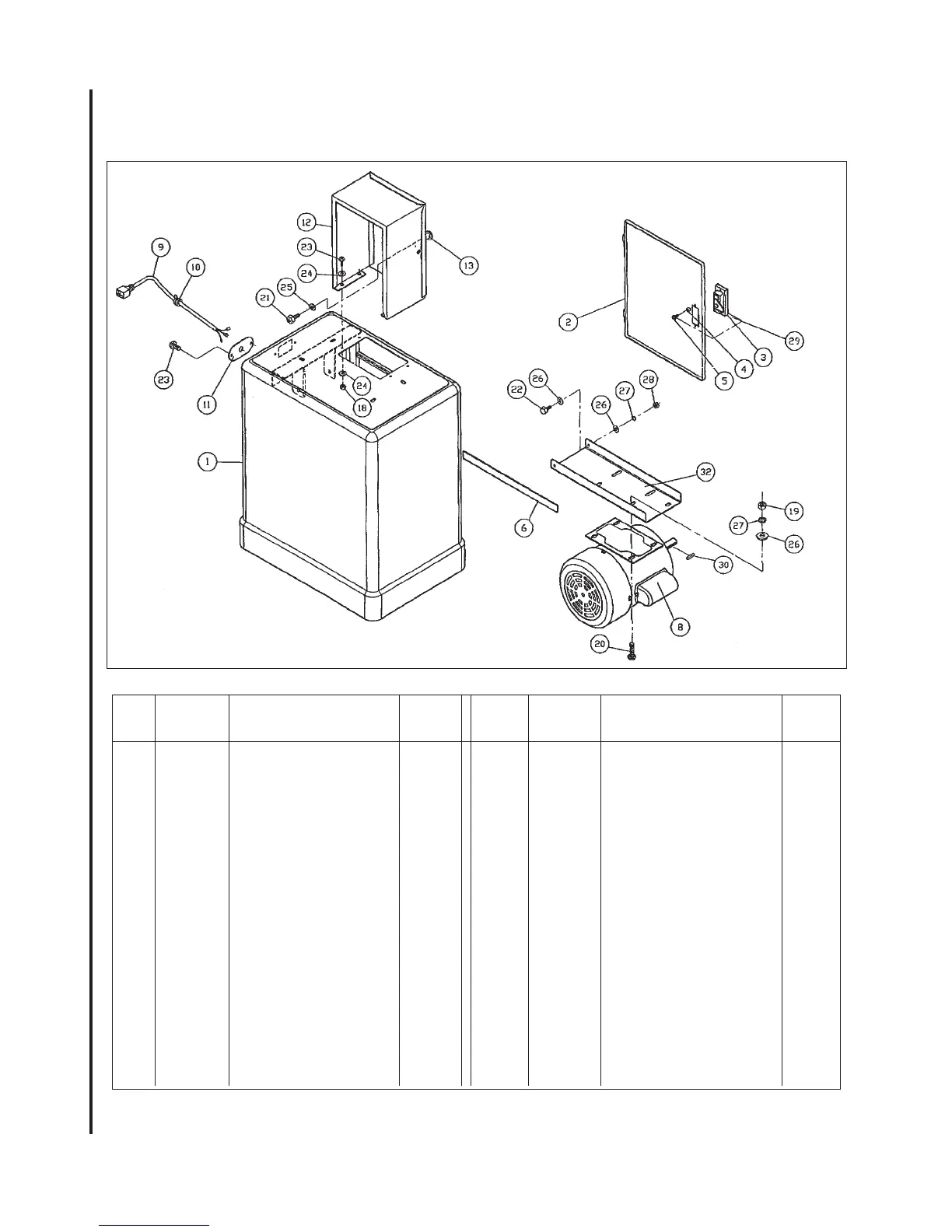

Exploded View and Parts Listing – Base –
Models 8201, 8203, 8201VS and 8203VS
Ref Part.
No. Number Description Qty
1 5513834 Base 1
2 5513835 Door 1
3 5513836 Lock (Ref. Note 1) 1
4 5513837 Washer (Ref. Note 1) 1
5 5513838 Bolt, Pan Head (M4x5) 2
(Ref. Note 1)
6 5513839 Pad 2
8 5784391 Motor - 115V 1-ph 1
5784411 Motor - 220/460V 3-ph
9 5784421 Cord, Motor - 1-ph 1
5784431 Cord, Motor - 3-ph
10 5513842 Strain Relief 2
11 5784281 Plate, Strain Relief 1
12 5513844 Case, Pulley 1
5513845 Cover, Pulley Case 1
(Not Shown)
13 5513846 Knob 1
Ref Part.
No. Number Description Qty
18 5513847 Nut (M5) 4
19 5513848 Nut (M8) 8
20 5513849 Bolt, Carriage (M8x16) 4
21 5784331 Bolt, Hex Head (M6x12) 1
22 5513851 Bolt, Hex Head (M8x25) 4
23 5782761 Bolt, Pan Head (M5x12) 6
24 5513853 Washer, Flat (M5x• 10) 8
25 5513854 Washer, Flat (M6x• 16) 1
26 5513855 Washer, Flat (M8x• 18) 12
27 5513856 Washer, Spring (M8) 8
28 5513857 Nut, Nylon (M8) 2
29 5513858 Lock Assembly 1
30 5513859 Key 1
31 5513860 Stand, Close 1
(Not Shown)
32 5513861 Bracket, Motor 1
33* 5507565 Base Assembly 1
without motor
Note 1: Noted parts are part of lock assembly, number 29
* Ref No. 33 includes all components shown in the Exploded View except the motor (Ref No. 8).
