WIN Enterprises PL-10510 - Page 13

WIN Enterprises, Inc
13

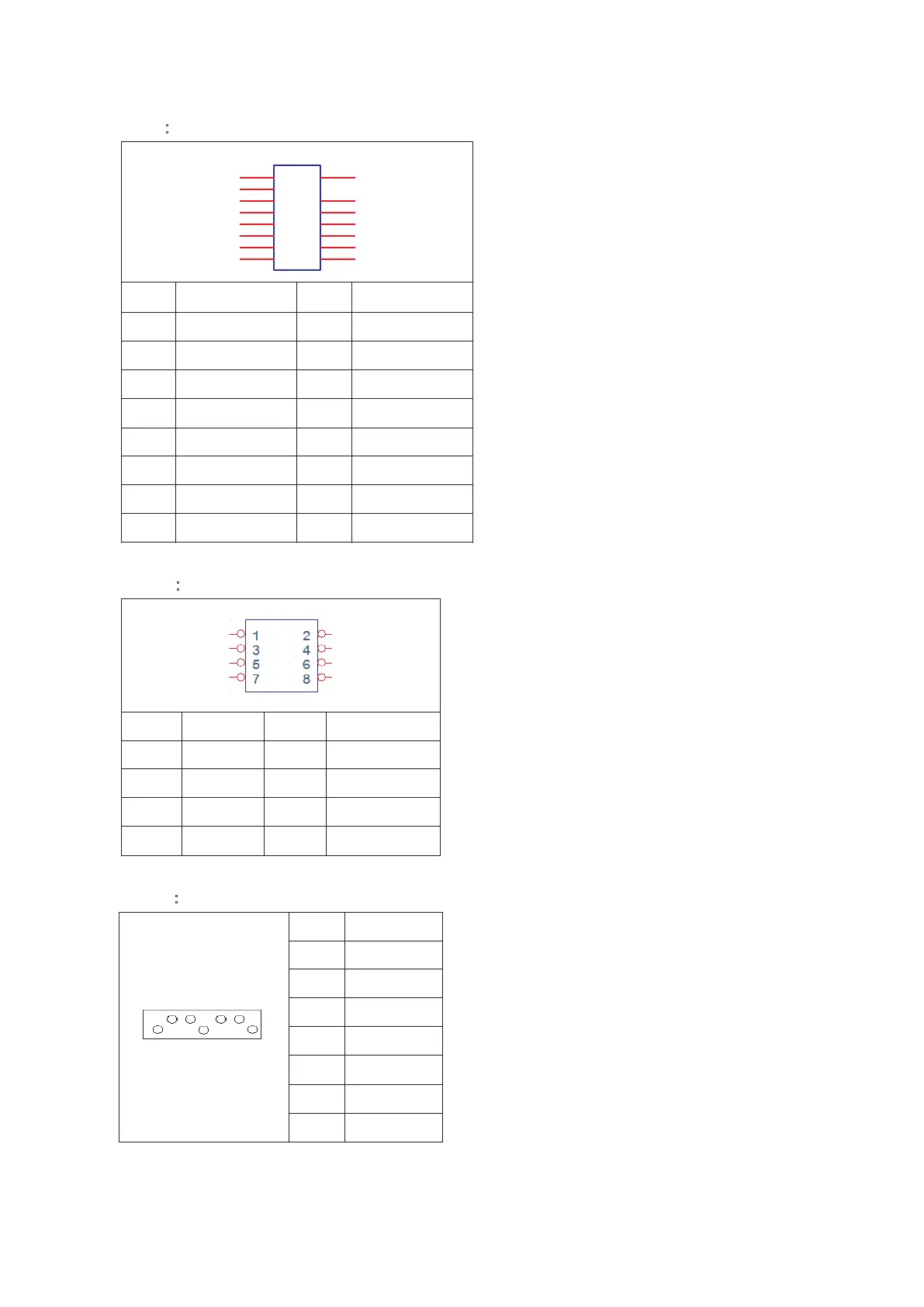

CN9：LCM Pin Header
2
3
6
8
10
12
14
16
1
5
7
9
11
13
15
Pin
Define
Pin
Define
1
+5V
2
GND
3
P_AFD#
4
NC
5
P_INIT#
6
P_SLIN#
7
LCM_PD1
8
LCM_PD0
9
LCM_PD3
10
LCM_PD2
11
LCM_PD5
12
LCM_PD4
13
LCM_PD7
14
LCM_PD6
15
LCM_BK_CTRL
16
BK_CTRLP
CN10：SPI Pin Header
Pin
Define
Pin
Define
1
+1.8V
2
GND
3
CS#
4
SCLK
5
MISO
6
MOSI
7
N/A
8
IO
CN11：SATA Connector
Pin
Signal
1
GND
2
TXP
3
TXN
4
Ground
5
RXN
6
RXP
7
GND
