WIN Enterprises PL-10510 - Compactflash

WIN Enterprises, Inc
20

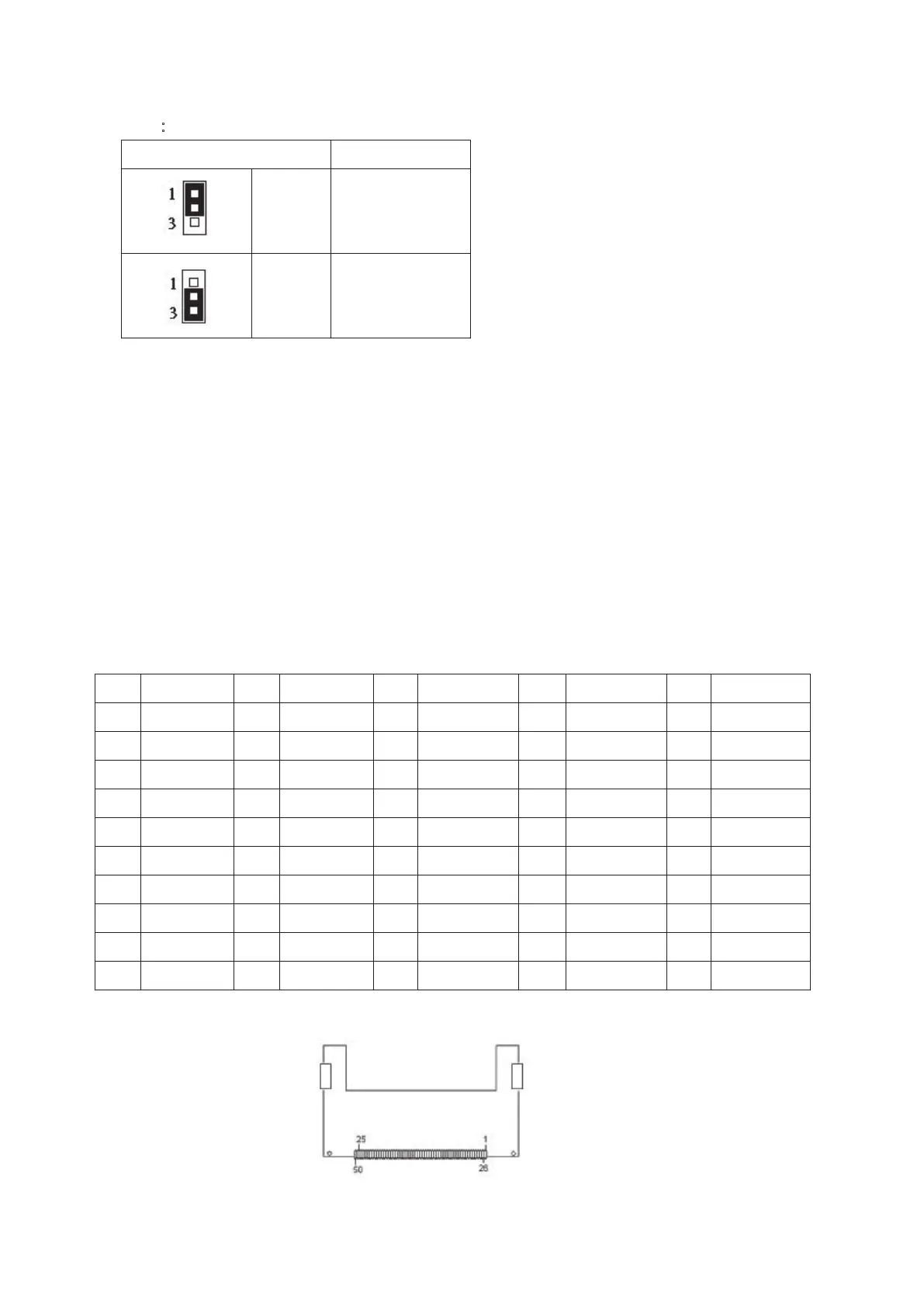

JP5：Watching Dog Function Select
Pin
Setting
1-2
For Reset
2-3
For LAN Bypass
2.3 CompactFlash
TM
Card Socket Pin Defined
CompactFlash
TM
card is a small removable mass storage device. It can provide
complete PCMCIA-ATA functionality and compatibility plus True IDE functionality
compatible with ATA/ATAPI-4.
CompactFlash
TM
storage products are solid state form factor, it means they
contain no moving parts. Thus, it provides users with much greater protection
of the data than conventional magnetic disk device.
Pin
Assignment
Pin
Assignment
Pin
Assignment
Pin
Assignment
Pin
Assignment
1
Ground
11
Ground
21
D00
31
D15
41
RESET
2
D03
12
Ground
22
D01
32
CS
42
ORDY
3
D04
13
VCC
23
D02
33
NC
43
DREG
4
D05
14
Ground
24
WP
34
IOR
44
DACK
5
D06
15
Ground
25
NC
35
IOW
45
LED
6
D07
16
Ground
26
NC
36
WE
46
BVD
7
CS
17
Ground
27
D11
37
RDY/BSY
47
D08
8
Ground
18
A02
28
D12
38
VCC
48
D09
9
Ground
19
A01
29
D13
39
SCSE
49
D10
10
Ground
20
A00
30
D14
40
NC
50
Ground
