WIN Enterprises PL-10510 - Connector Define and Jumper Setting

WIN Enterprises, Inc
12

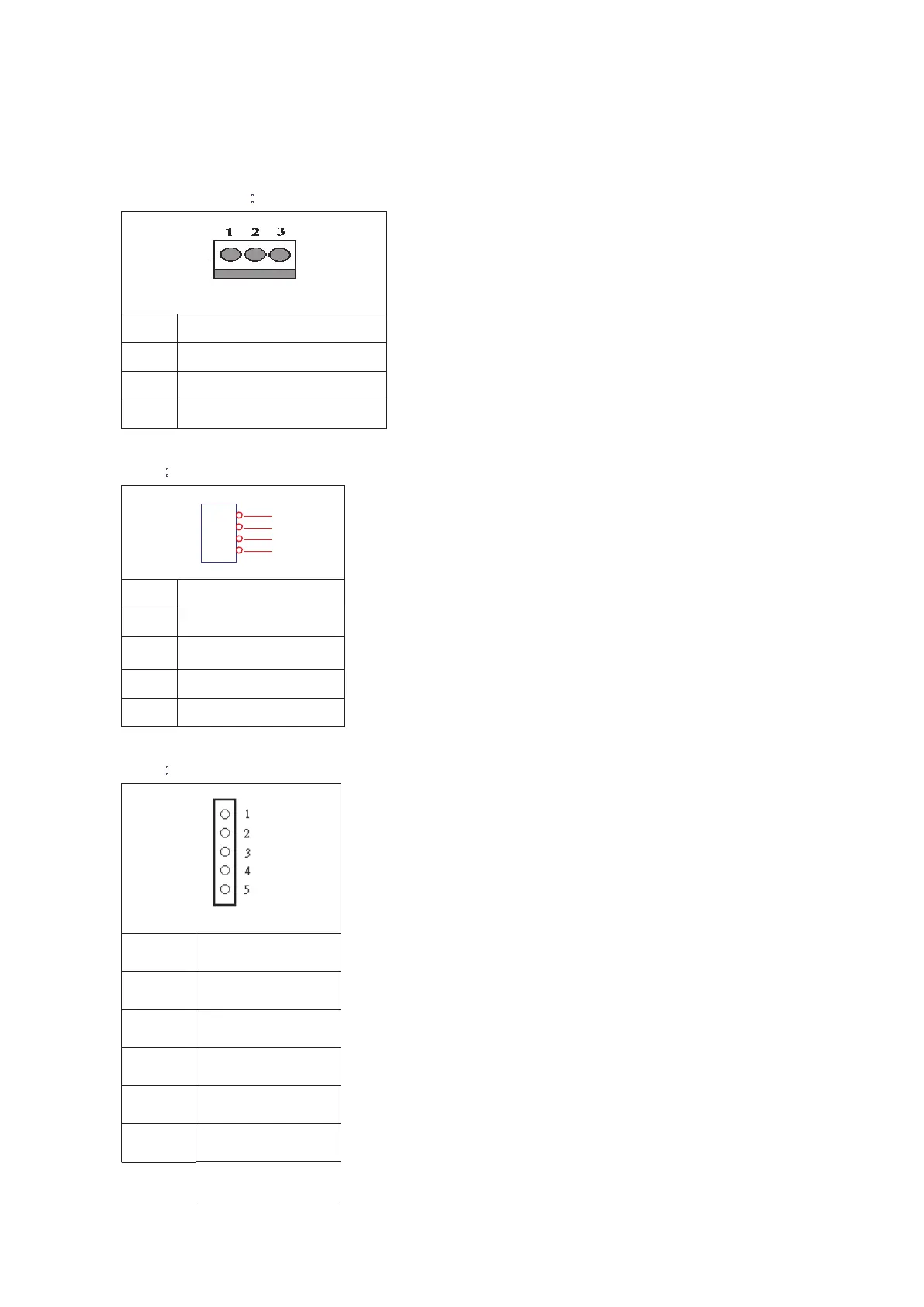

2.2 Connectors Defined and Jumper Settings
Connector Location & Dened
CN1/CN2/CN3：System/CPU FAN
Pin
Define
1
Ground
2
+12V
3
Speed Detect
CN7：SATA PWR
1
2
3
4
Pin
Define
1
+12V
2
GND
3
GND
4
+5V
CN8：Keypad header
Pin
Define
1
ACK#
2
BUSY
3
PE
4
SLCT
5
GND
