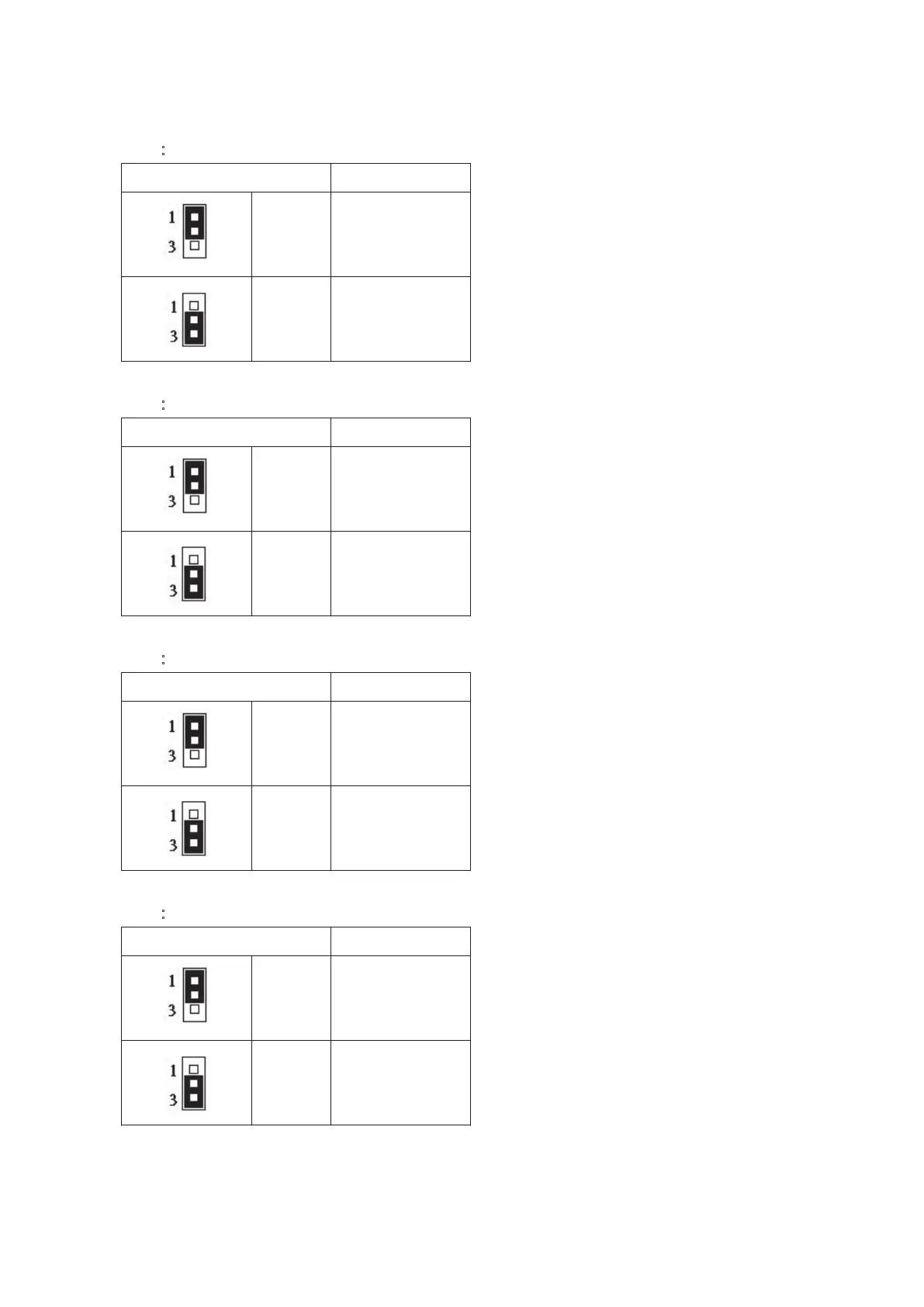

Jumper Settings
JP1：Clear CMOS
Pin
Setting
1-2
Normal
Operation
2-3
Clear CMOS
JP2：LAN1 & LAN2 bypass select
Pin
Setting
1-2
By-pass mode
2-3
Normal
operation
JP3：LAN3 & LAN4 bypass select
Pin
Setting
1-2
By-pass mode
2-3
Normal
operation
JP4：Reset Button Function Select
Pin
Setting
1-2
For GPI Input
2-3
For Reset
