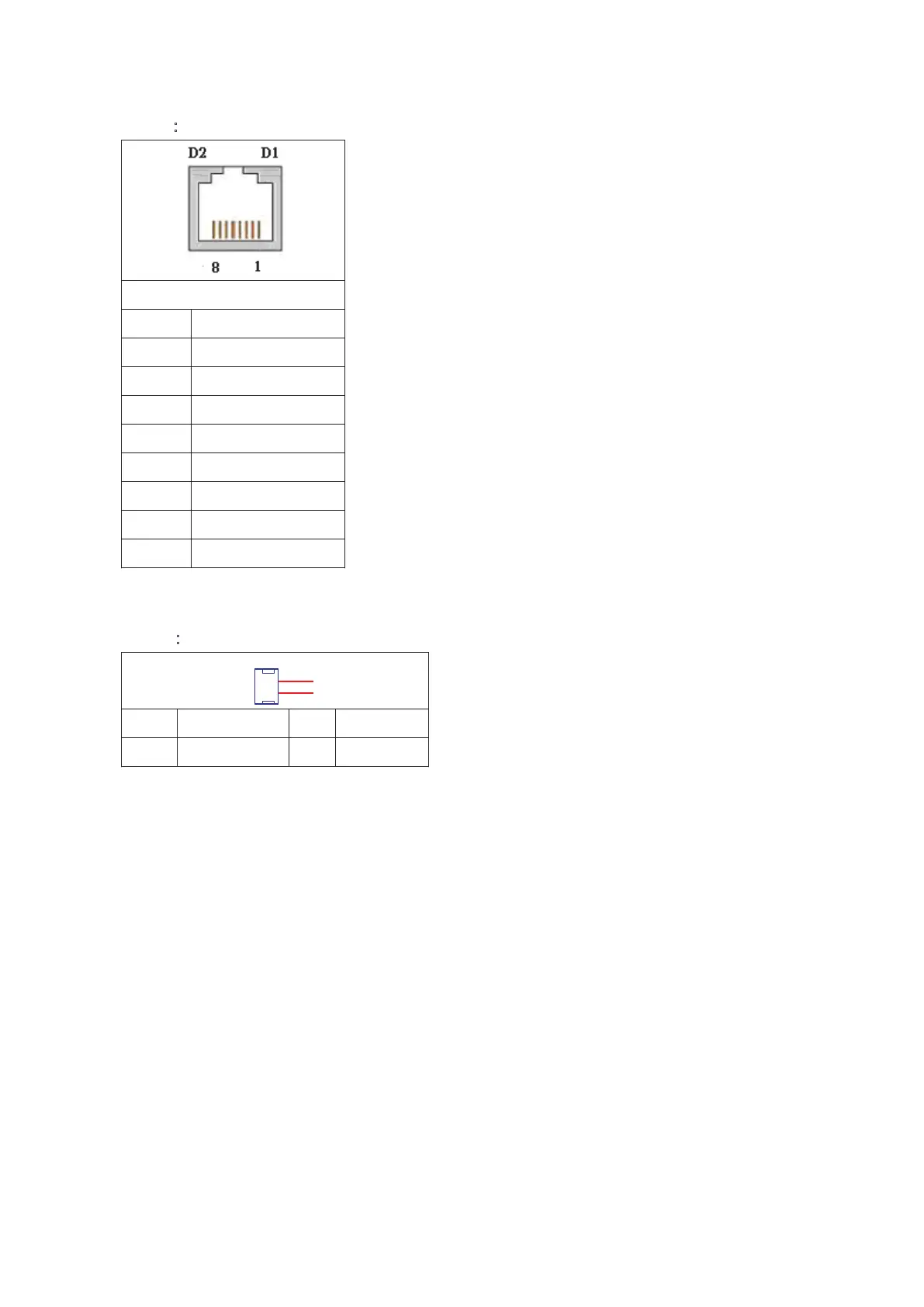

CN30：COM1 (Console) Connector
RJ45
Pin
Define
1
CTS#
2
DTR#
3
TXD#
4
GND
5
GND
6
RXD#
7
DSR#
8
RTS#
CN31： DC +12V Power Jack (2Pin)
1
1
2
2
Pin
Define
Pin
Define
1
+12V
2
GND
