WIN Enterprises PL-10510 - Page 17

WIN Enterprises, Inc
17

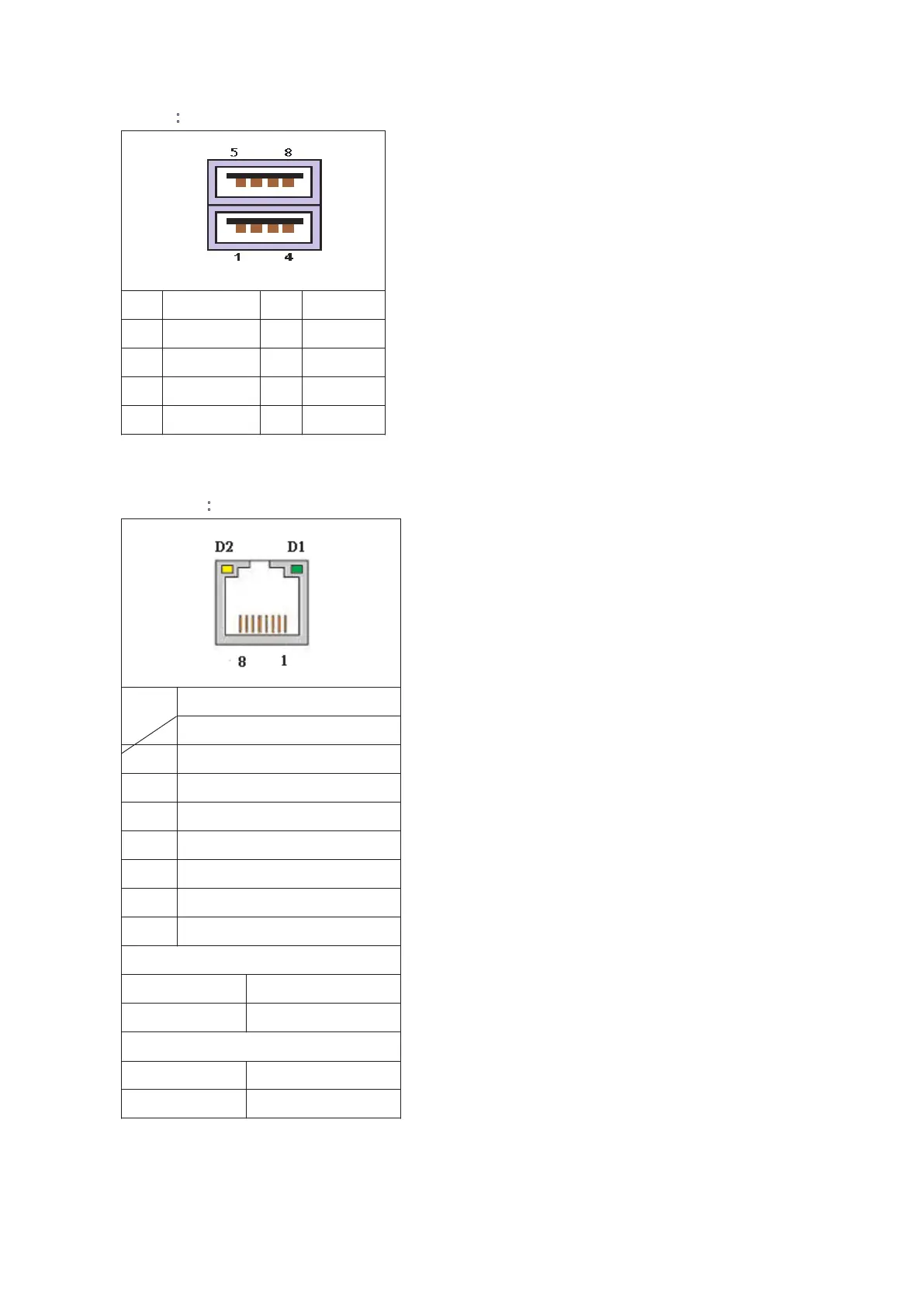

CN22：USB Connector
Pin
Define
Pin
Define
1
+5V
2
DATA0-
3
DATA0+
4
GND
5
+5V
6
DATA1-
7
DATA1+
8
GND
CN24~29：LAN RJ-45 Connector
Pin
Define
1
TX+
2
TX-
3
RX+
4
Chassis Ground
5
Chassis Ground
6
RX-
7
Chassis Ground
8
Chassis Ground
D1: Speed indicated LED
1 Gbps
GREEN
100 Mbps
YELLOW
D2 :Link/Activity LED
Link
GREEN
Activity
BLINKING
