WIN Enterprises PL-10510 - Page 16

WIN Enterprises, Inc
16
51
Reserved
52
+3.3V

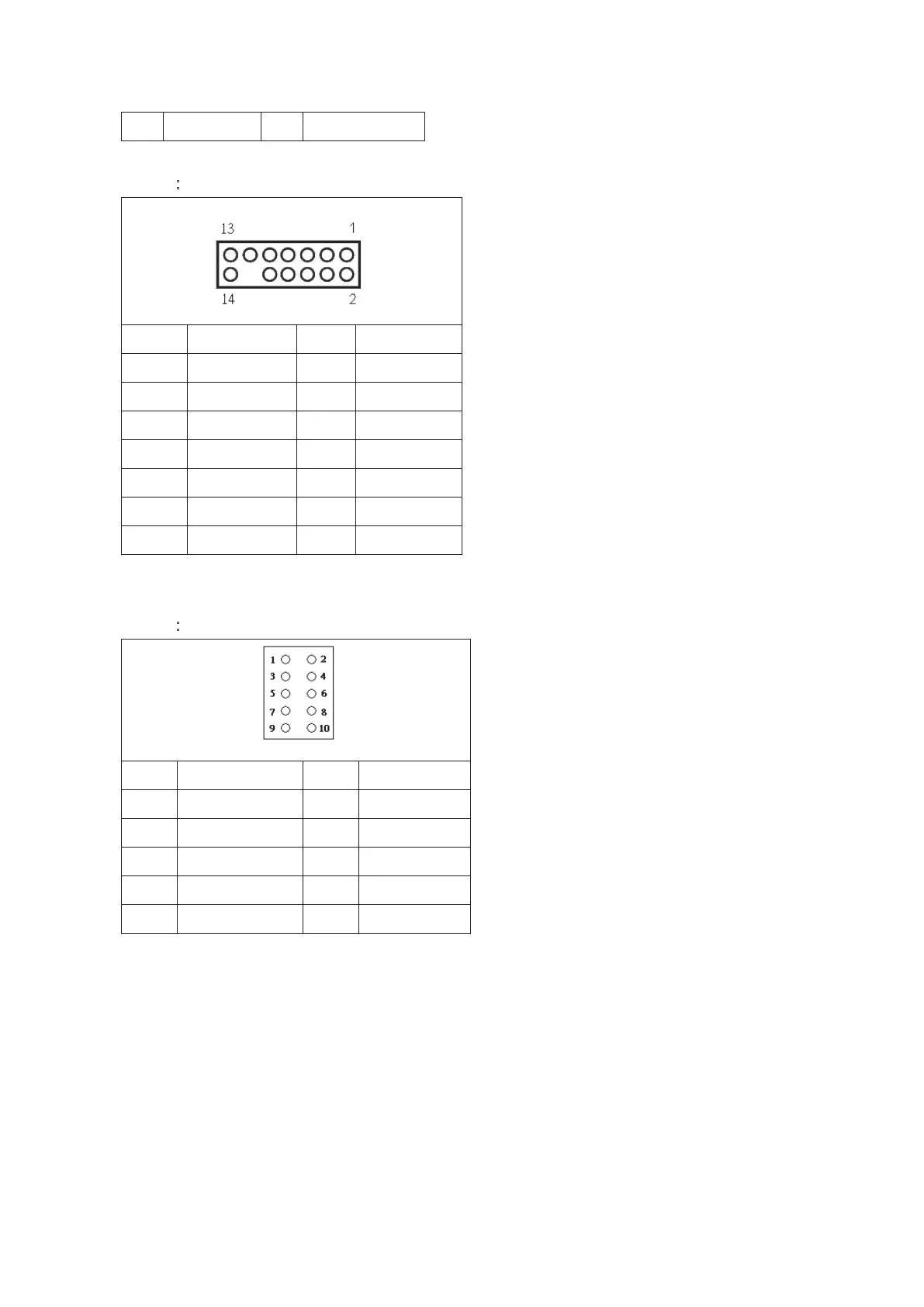

CN17：LPC Pin Header
Pin
Define
Pin
Define
1
+3.3V
2
AD 0
3
AD1
4
AD 2
5
AD 3
6
Frame#
7
PCIERST#
8
+5V
9
CLOCK
10
PME#
11
GND
12
13
SERIRQ
14
DRQ#
CN18：PS2 KB/MS Pin Header
Pin
Define
Pin
Define
1
KCLK
2
MCLK
3
KDAT
4
MDAT
5
N/A
6
N/A
7
PS2_GND
8
PS2_GND
9
PS2_VCC
10
PS2_VCC
