WIN Enterprises PL-10510 - Page 14

WIN Enterprises, Inc
14

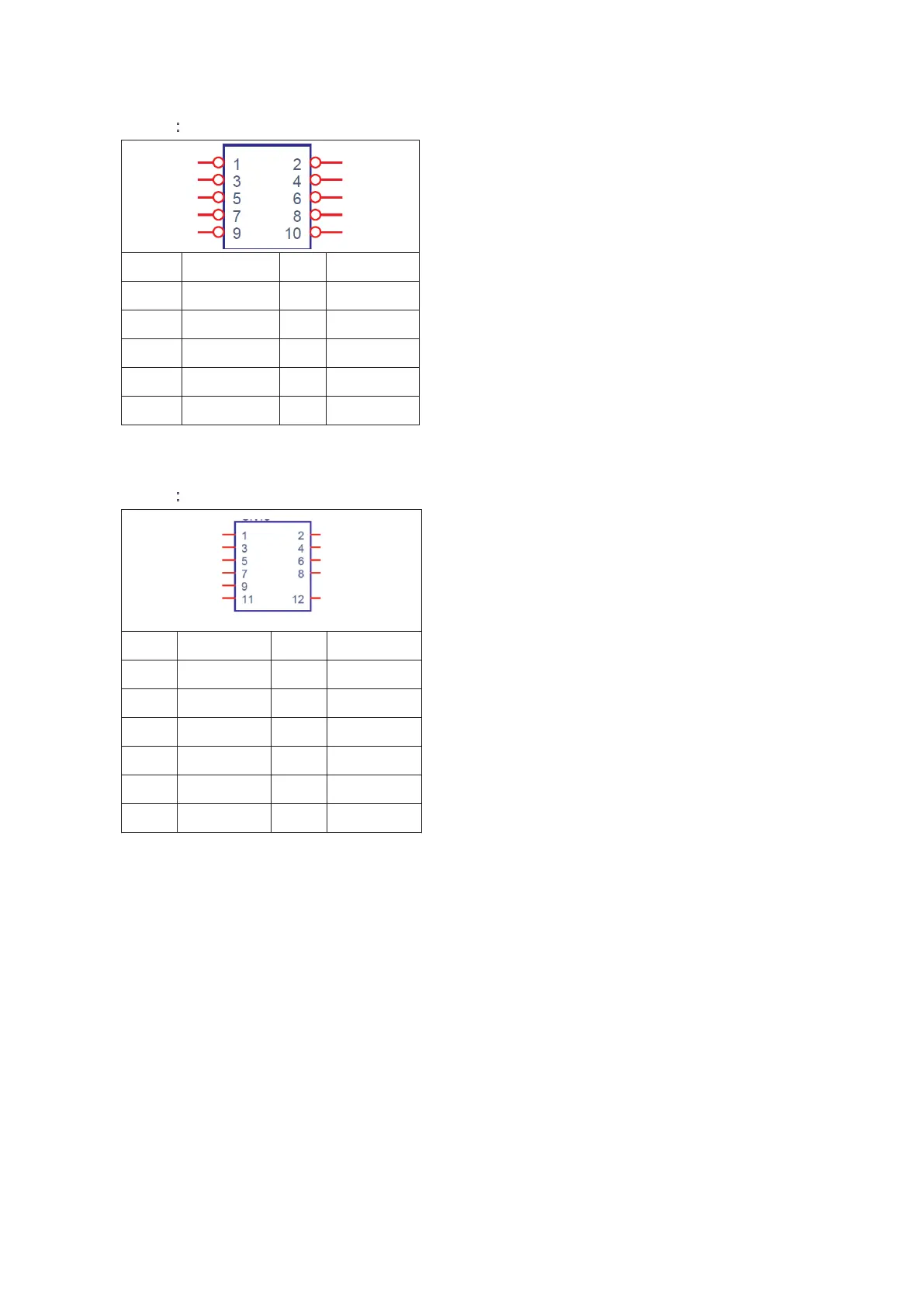

CN12：COM2 pin header
Pin
Define
Pin
Define
1
DCD#
2
DSR#
3
SIN#
4
RTS#
5
SOUT#
6
CTS#
7
DTR#
8
RI#
9
Ground
10
N/A
CN13：GPIO
Pin
Define
Pin
Define
1
+3.3V
2
SIO_GP50
3
SIO_GP51
4
SIO_GP52
5
SIO_GP53
6
SIO_GP54
7
SIO_GP55
8
SIO_GP56
9
SIO_GP57
10
11
+5V
12
GND
