Installing The Pedals
8 9
Install Seat Shock Absorbers

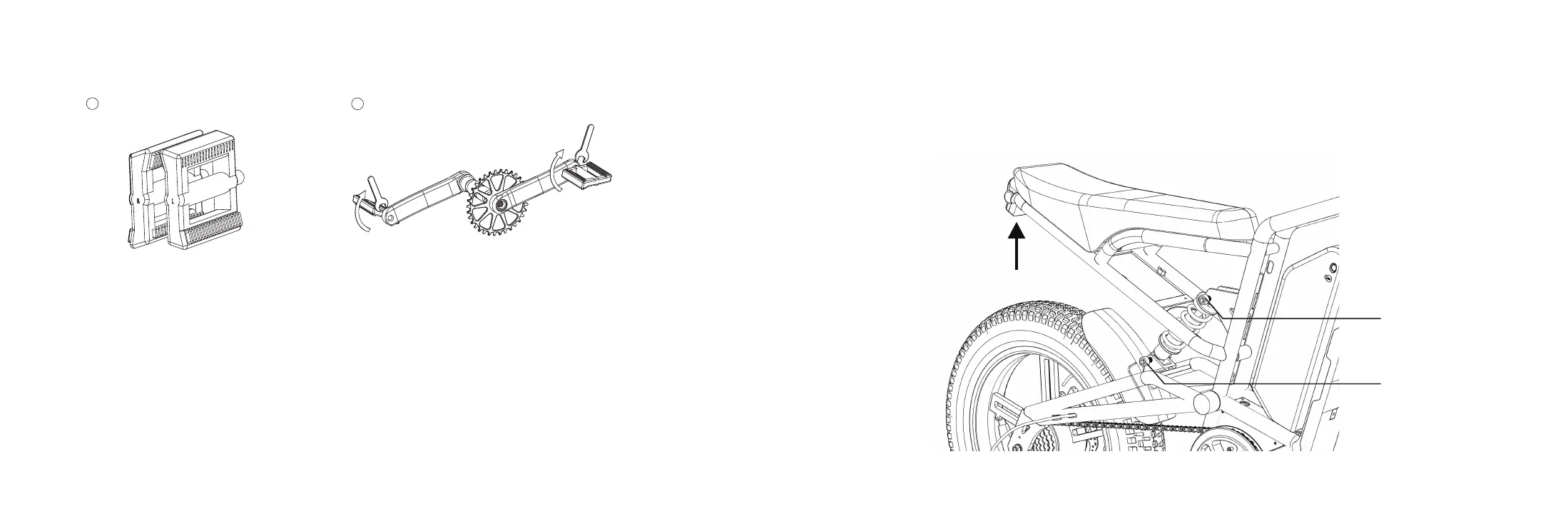

1. Identify the Left and Right labels on the pedals. They can only be installed on their respective sides. INCORRECT INSTALLATION WILL
CAUSE DAMAGE, PLEASE BE AWARE TO DISTINGUISHING BETWEEN LEFT & RIGHT BEFORE INSTALLATION.
1. Please Loosen the screws connecting the cushion to the shock absorber.
2. Pull the seat cushion upward to unfold the seat cushion.
3. Align the screw holes and use the installation hex wrench to tighten the screws.
4. Turn the screw clockwise to tighten.
2.
"L" stands for the Left pedal of the riding direction; "R" is for the Right pedal of the riding direction, the chain side.
3. Take the wrench integrated in the multi-function installation tool and use it to tighten the nut in the direction of the arrow.
1
2
Left - Riding direction
Right - Riding direction
screws
screws
