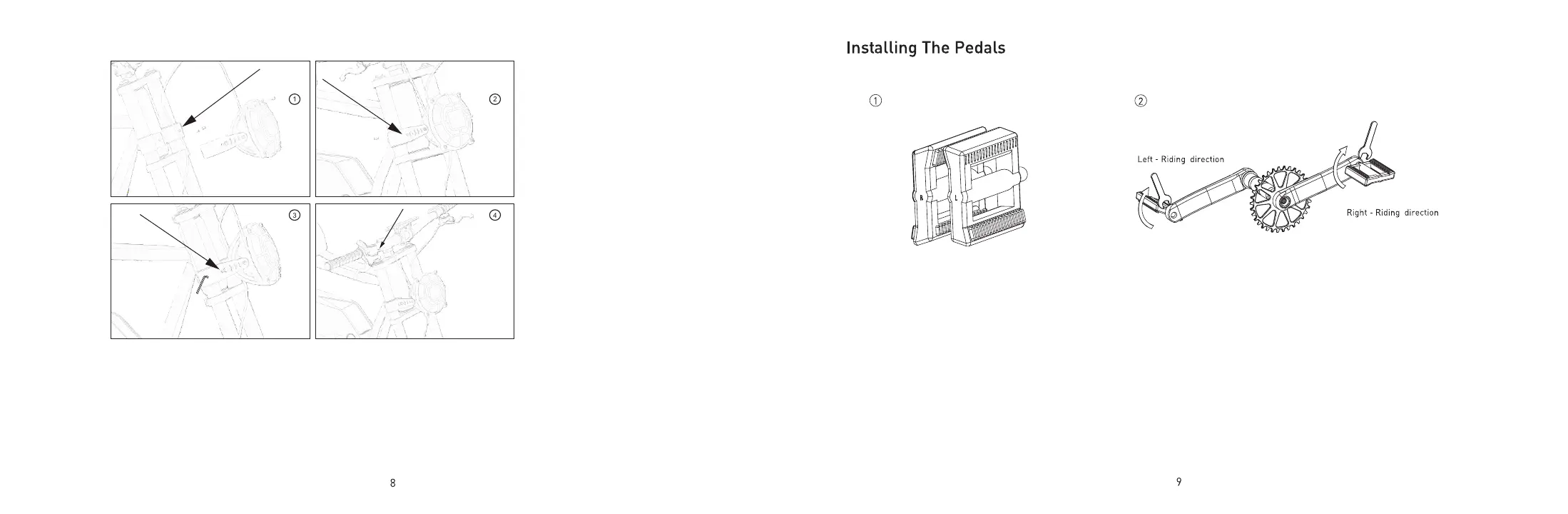

1. As shown in Figure 1, insert the screw of the headlight into the front headlight hole.
2. Utilize the installation tool to tighten the screw and nut.
3. Use a hex wrench to tighten it in a clockwise direction.
4. Connect the headlight wires.
Installing the Headlight
1. Identify the Left and Right labels on the pedals. They can only be installed on their respective sides.
INCORRECT INSTALLATION WILL CAUSE DAMAGE, PLEASE BE AWARE TO DISTINGUISHING BETWEEN LEFT & RIGHT
BEFORE INSTALLATION.
2. "L" stands for the Left pedal of the riding direction; "R" is for the Right pedal of the riding direction, the chain side.
3. Take the wrench integrated in the multi-function installation tool and use it to tighten the nut in the direction of the arrow.
1
3
2
4
