MAINTENANCE-TRANSPORTATION
86037880 CHARIOT EXTRACTOR 01/16/07
4-22
PUSHING MACHINE
The machine may be pushed for short distances at
speeds not to exceed 5 mph. Be careful to avoid
damaging machine. The machine may be pushed by
hand from the rear.
NOTE: To avoid damage caused by regenerative
voltage, disconnect traction motor before towing or
pushing machine.
MACHINE TIE-DOWNS
There are two tie points located at front and each
side of foot box frame and two at the front side of
frame. Tie-down devices must be of the proper type
and strength. The combined strength of all tie-
downs must be strong enough to lift two times the
weight of the machine. Tie-downs must be
positioned to prevent the machine from moving
forward, backward, or either side to side. Use all
four corners of the machine with the tie-downs
running out opposite directions. Tie-downs must be
attached to the transporting vehicle securely.
PREPARATION FOR LOADING /UNLOADING
TRAILER
Before loading or unloading machine from trailer,
remove scrub brushes and vac shoes to eliminate
interference with tie-downs.
Scrub head must be in the up position before
loading.
NOTE: When transporting the machine on a trailer
or in a truck, in addition to using tie-downs, be sure
to set the parking brake, and block the tires to
prevent the machine from rolling.

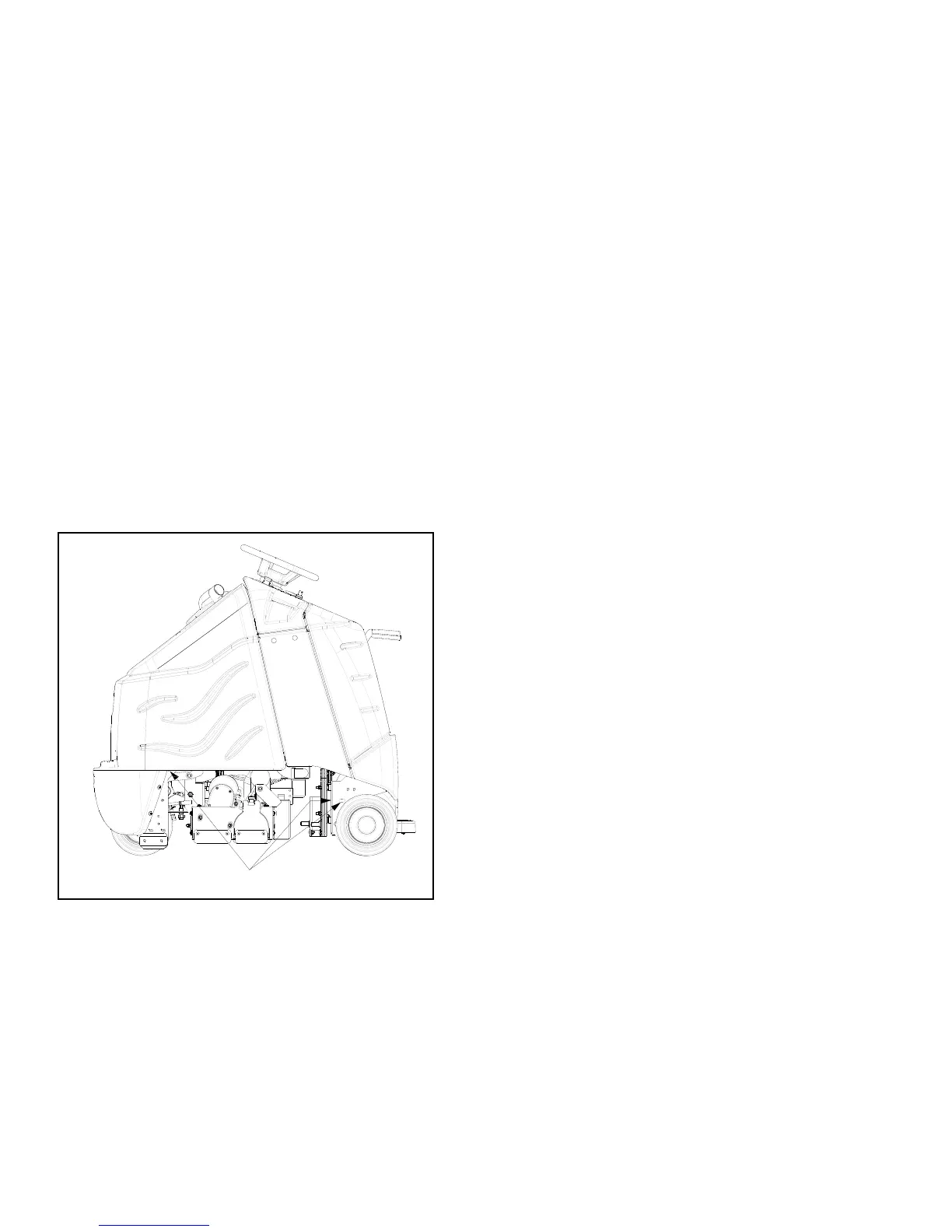

TIE DOWN POINTS
